400W CE Maglev Wind Turbine Generator 12V/24V Vertical Axis Silent for Residental Home Use Free Controller | Обустройство дома

About us

R&X Energy Technical Group Co., Ltd

We specialize in supplying renewable energy products (solar power, wind power, electrical accessories, etc.) around the world. There are about hundreds of types of wind generator available in our company. We owns seven branch companies in Zhejiang, Guangdong , Jiangsu and overseas. Also, R&D, studying, producing, sales and after-sales services have been integrated in its whole product chain. Hope to be your trustworthy supplier in China.

Product introduction

Features

1)maglev generator Coreless generator, generating efficiency.

2)3 blades with curved design,low start spped, low noise.

3)20 years use life and 1 year for warranty, warmly welcome to our factory.

4)Small ,light ,stable and safe, special control principle expended the wind speed to 2.5 ~ 25m/s.

5)CE RoHS TUV SGS.

6)High efficiency, matching with hybrid generator system with solar panels for home use, LED street light, Garden lights, boat,camping etc.

Product technical data

Model RX-400X

1)Started wind speed (m/s):1.3 m/s

2)Cut-in wind speed (m/s): 2.5 m/s

3)Rated Wind speed (m/s): 10 m/s

4)Rated voltage(AC): 12/24V

5)Rated power(W): 400W

6)Max power(W):410W

7)Rotor Diameter of Blades(m): 0.6m

8)Product assembly weight (Kg) <20Kg

9)Blades height(m): 0.8m

10)Safe wind speed (m/s) ≤40m/s

11)Blades quantity 3PCS

12)Blade material glass/basalt

13)Generator:Three phase permanent magnet suspension motor

14)Control System: Electromagnet

15)Mount Height(m):2~12m

16)Generator protection grade IP54

17)Work environment temperature: -25ºC ~+45ºC

18)Work environment humidity  ≤90%

19)Altitude: ≤4500m

20)Overspeed protection: Electromagnetic brake

21)Overload protection: Electromagnetic brake and the unloading unit

Model RX-600X

1)Started wind speed (m/s):1.3 m/s

2)Cut-in wind speed (m/s): 2.5 m/s

3)Rated Wind speed (m/s): 10 m/s

4)Rated voltage(AC): 12/24V

5)Rated power(W): 600W

6)Max power(W):650W

7)Rotor Diameter of Blades(m): 0.6m

8)Product assembly weight (Kg) <20Kg

9)Blades height(m): 0.8m

10)Safe wind speed (m/s) ≤40m/s

11)Blades quantity 3PCS

12)Blade material glass/basalt

13)Generator:Three phase permanent magnet suspension motor

14)Control System: Electromagnet

15)Mount Height(m):2~12m

16)Generator protection grade IP54

17)Work environment temperature: -25ºC ~+45ºC

18)Work environment humidity  ≤90%

19)Altitude: ≤4500m

20)Overspeed protection: Electromagnetic brake

21)Overload protection: Electromagnetic brake and the unloading unit

Product Size

Please refer to the actual size.Manual measurement errors cannot be avoided.The error of 1-2cm is within the normal range.

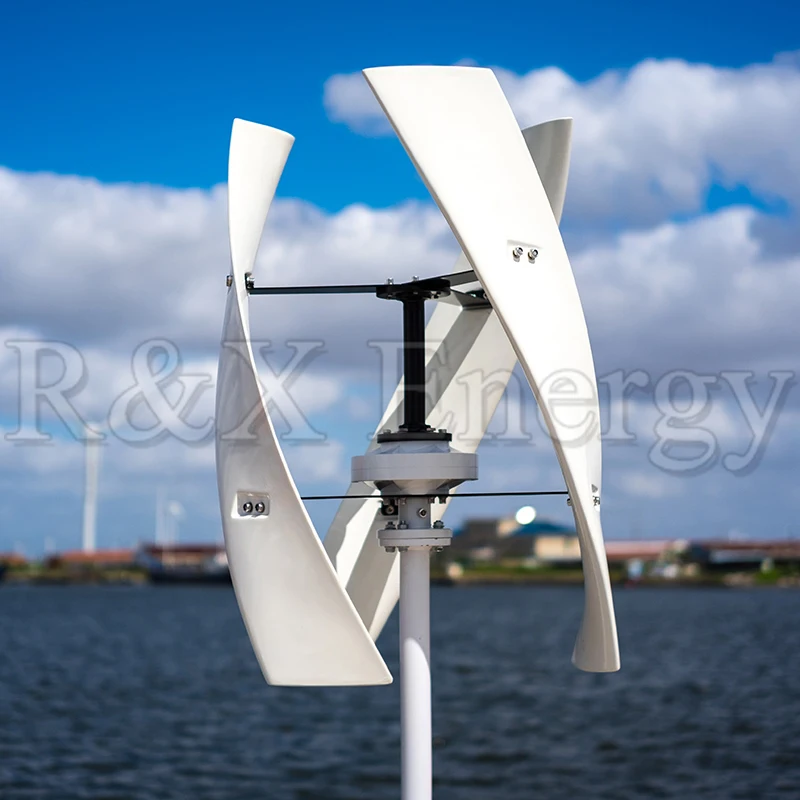

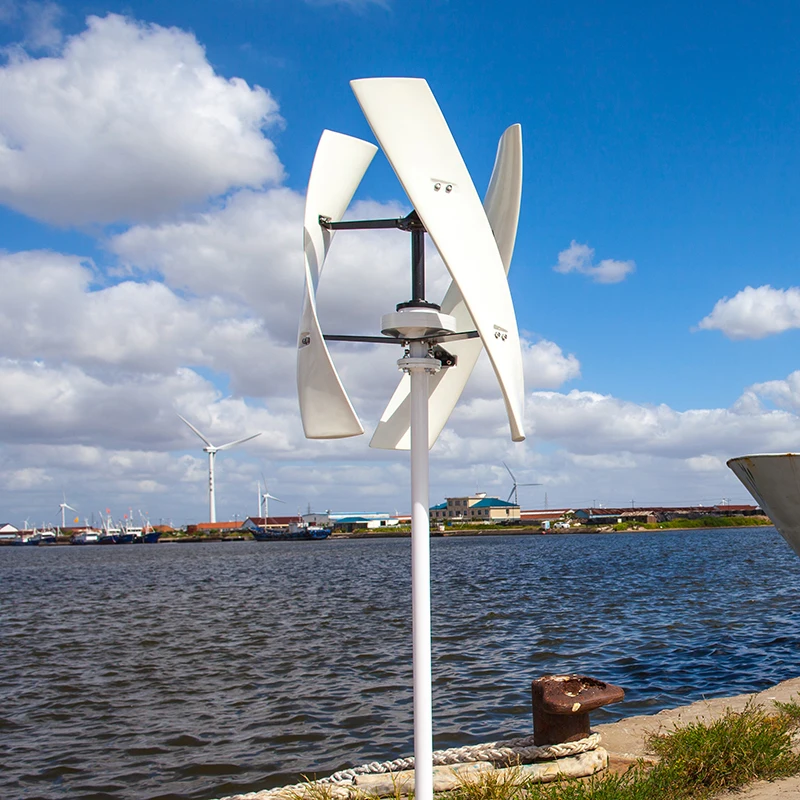

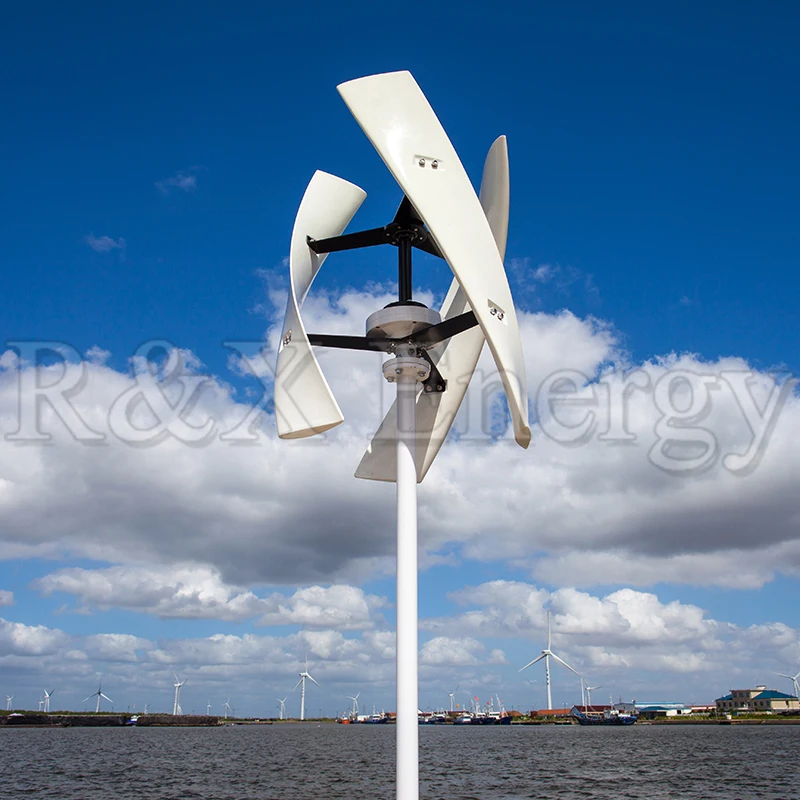

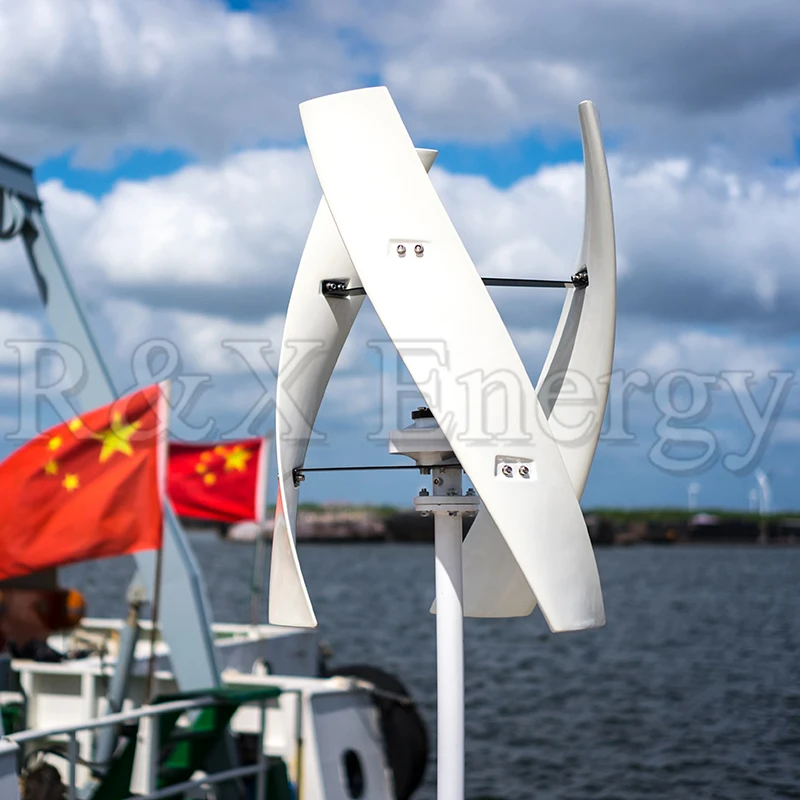

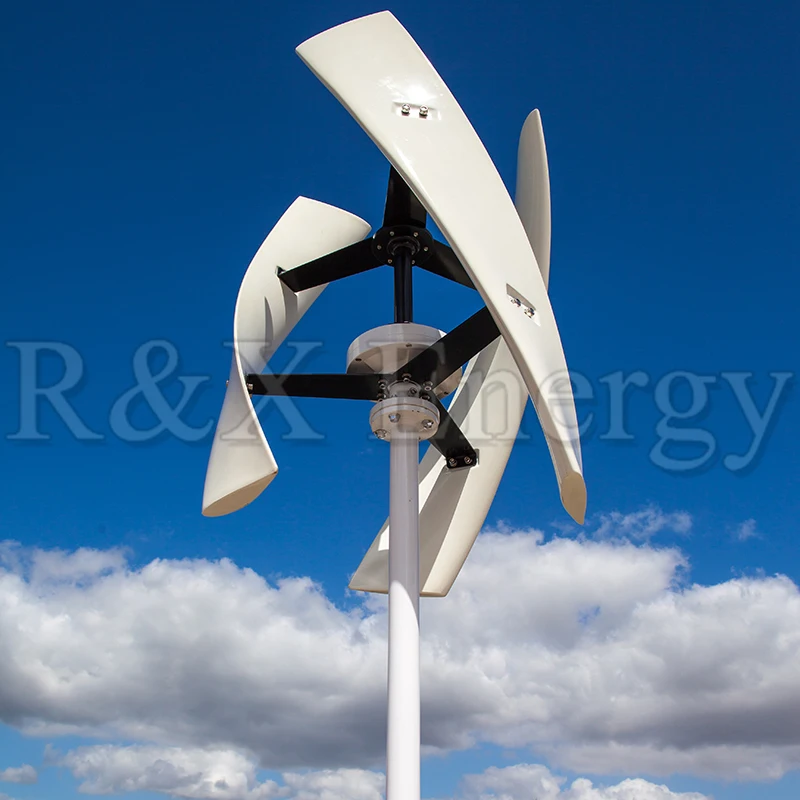

Product Pictures Show

Related Free MPPT Controller

MPPT boost controller for wind turbine 400w 600w 12V/24V auto switch off grid charge controller Indicator lamp Red light: When connect to battery, it will flash once. When brake or dumping load, it will on. Yellow light: When boosting charging, it will flash. When the currenct is more, the flash is more quick.

What is MPPT?

Maximum power point tracking (MPPT) is a technique used commonly with wind turbines and PV solar systems to maximize power extraction under all conditions. For 12V wind turbine, it begin to charge at 8-9V For 24V wind turbine, it begin to charge at 17-18V

Connection

There are total 5 wires output of the controller 3 blue wire : connect with wind turbine 1 red wire: connect with battery "+" 1 black wire: connect with battery"-"
