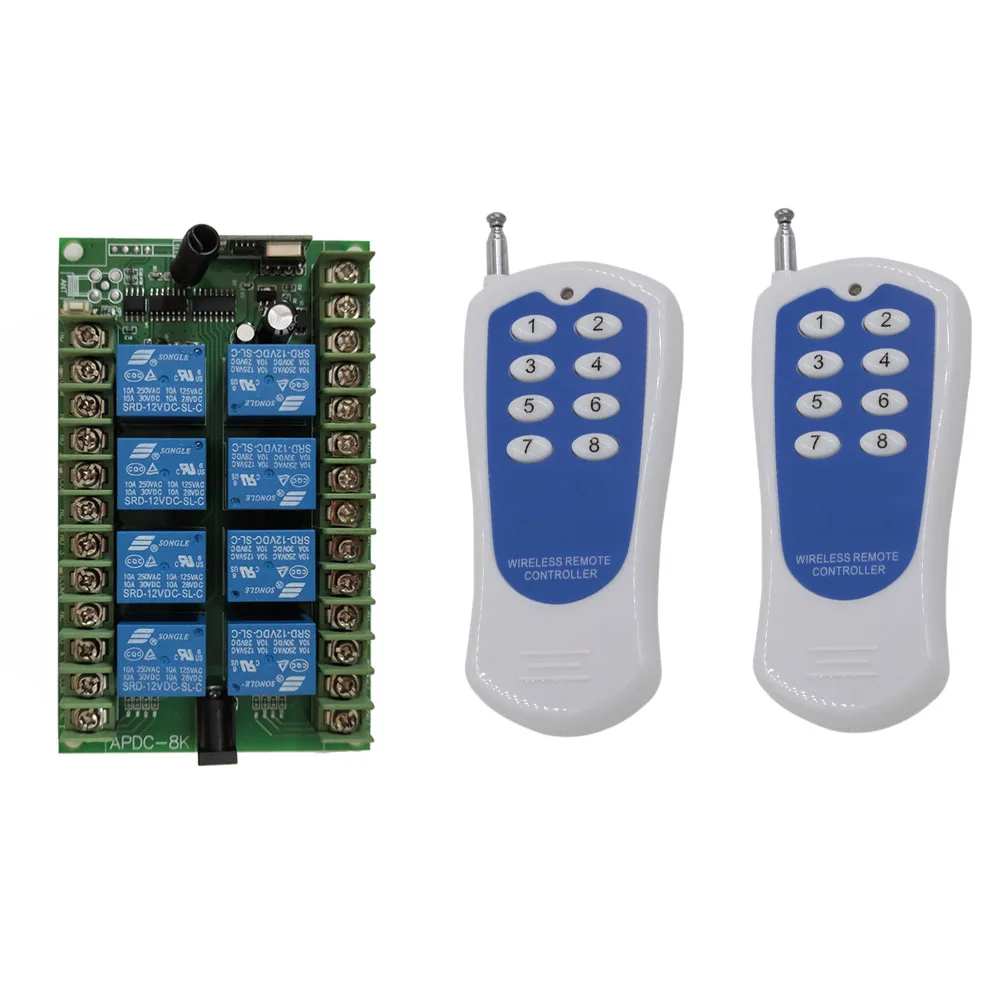

Universal DC 12V 24V 10A Relay 8CH 8 CH RF Wireless Remote Control Switch Transmitter Receiver Module Radio 315 / 433 MHz | Обустройство

Universal DC 12V 24V 10A Relay 8CH 8 CH RF Wireless Remote Control Switch Transmitter Receiver Module Radio 315 / 433 MHz | Обустройство

Specifications: Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.   1.Transmitter   Channel: 8 CH Remote Control Distance:0-200 M  ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.)  Encode: PT2262 Frequency:315 or 433 MHz Size: 125mm x 49mm x 20mm Power Supply: 1 X 12V/23A Battery (NOT included)   2.Receiver    Decode: Learning Code,Fixed Code Control Type: Toggle, Momentary, Latched Power Supply (Operating Voltage): DC 12V / 24V Relay: 10A 250VAC 10A 125VAC 10A 30VDC 10A28VDC Work Voltage Range of Relay: DC 0-28V State current: ≤10 mA Load current:≤ 5A Sensitivity:-107 dBm Operating Temperature:-40‘C - 80’C   3.Function    1).1-8 Toggle/Self-lock :Press 1 button==>on,press the same button again==>off  (Press key 1 to learn) press key 1, 1 relay works, press key 1 again, 1 relay stops working.press key 2,2 relay works,press key 2 again,key 2 stops working. 3-8 key works like this.   2) 1-8 Momentary/Jog:Press and hold==> on, release==>off (Press key 2 to learn) press key 1 and hold,1 relay works,loosen the finger. 1 relay stops working. 2-8 key works like this.   3)1-8 Latched/inter-lock:press 1 button ==>on,press other button==>off (Press key 4 to learn) press key 1,1 relay works,press key 2, 1 relay stops working,2 relay works.3-8 key works like this.   4)1-4 Toggle 5-8 Momentary (Press key 8 to learn)     4.Clear Code and Learn Code   1) Learn     press the learning button 1 time,the learning LED turns on,then press the transmitter key (choose the 1 2 4 8) to learn.the indicator flashs 1 time. It means learning sucessfully.    2) Clear press the learning button for 8 seconds until the indicator turns off, that means the code has been cleared.   5.Package Included   1 x Receiver (with cover) 1/2/3/4 x Transmitter (no batteries inside)
