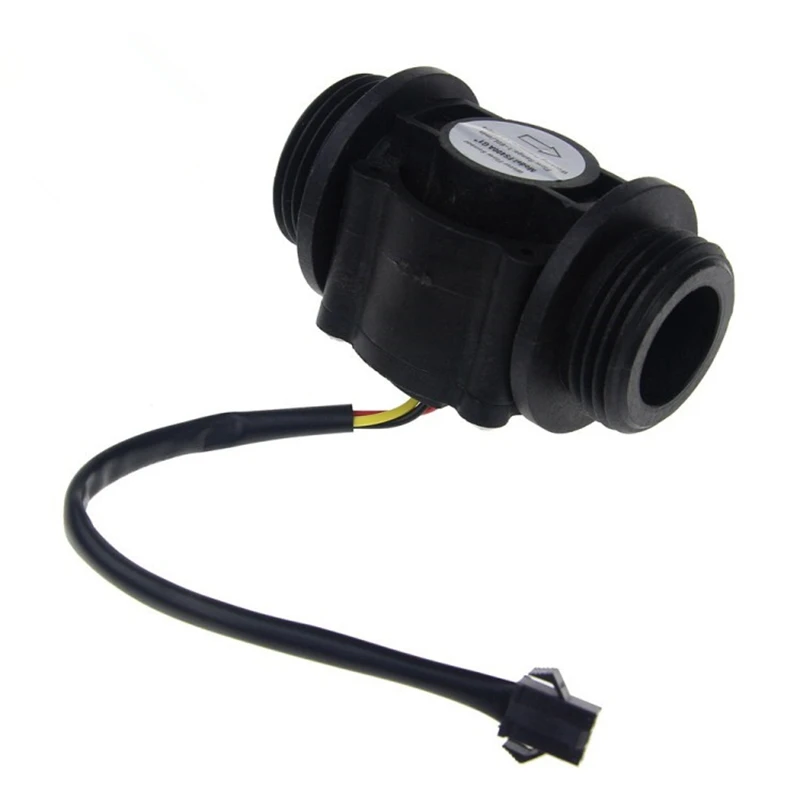

GTBL Dn25 Fs400A G1Inch Water Flow Sensor Hall Flowmeter Meter Counter 1-60L/Min 1.2Mpa | Meters
5Pcs Rain Water Level Sensor Module Detection Liquid Surface Depth Height For Arduino DC 3V-5V 20mA | Flow Sensors
Дисплей US211M с диапазоном измерения расхода 0,3-4,5 л/мин и счетчиком общего объема USN-HS06PA-4. Диаметр штуцера для шланга 6 мм.
4583.7
Неконтактный датчик уровня жидкости XKC-Y25-PNP XKC-Y25-V T12V с наружным прилипанием NPN PNP RS485 DC 5V-24V on.
467.1
Тестер качества воздуха, датчик температуры и влажности, определитель загрязнения воздуха PM2.5/PM10/PM1.0, тест на наличие микрочастиц пыли внутри помещения, измеритель TVOC.
5-18V 6mm Hose Barb End Water Flow Sensor for Coffee Machine Hot Purifier High Quality | Meters
149.4
Характеристики

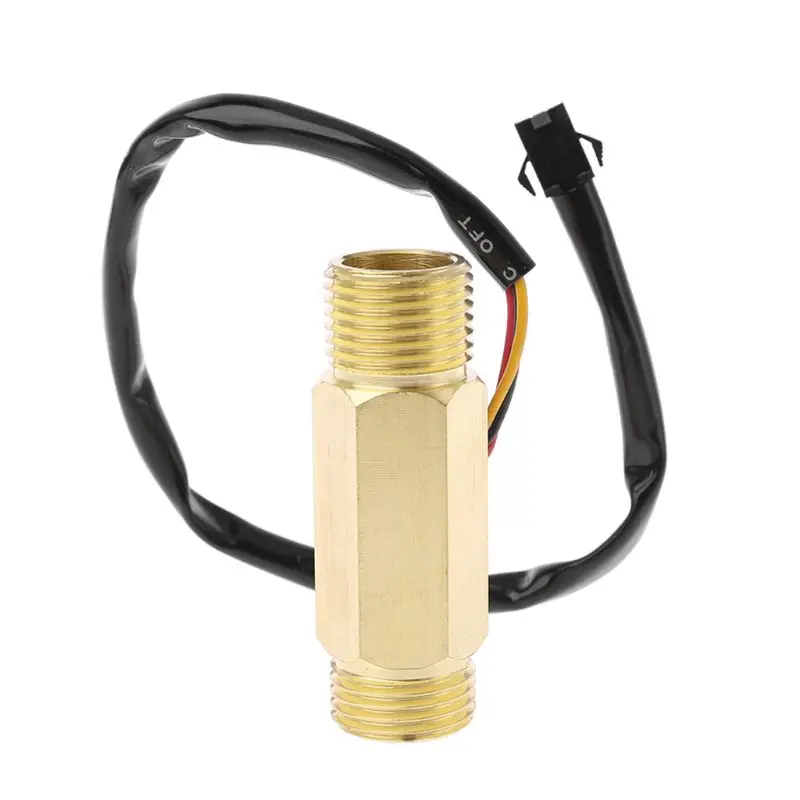

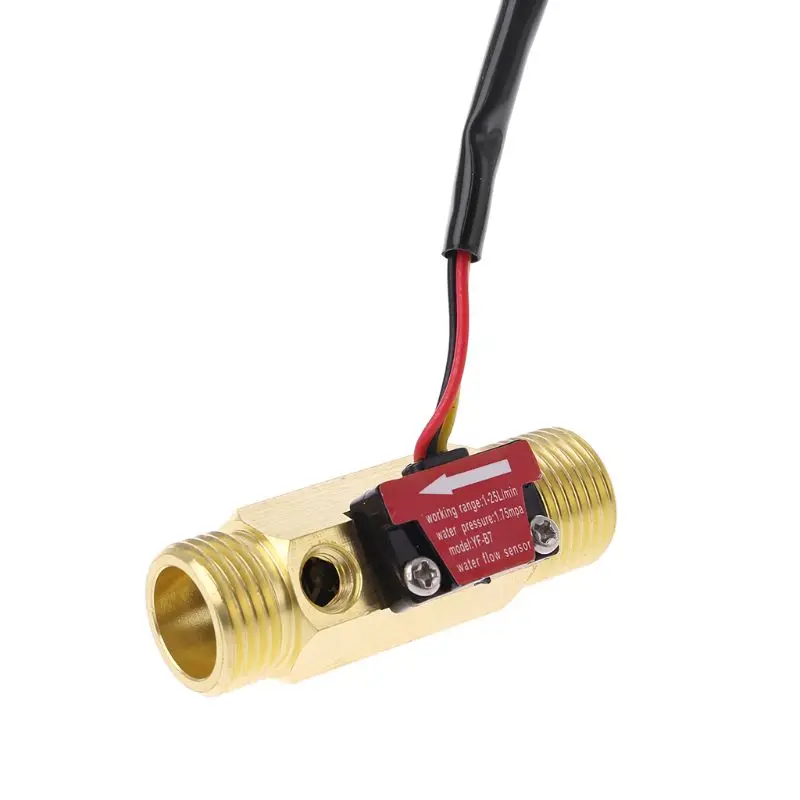

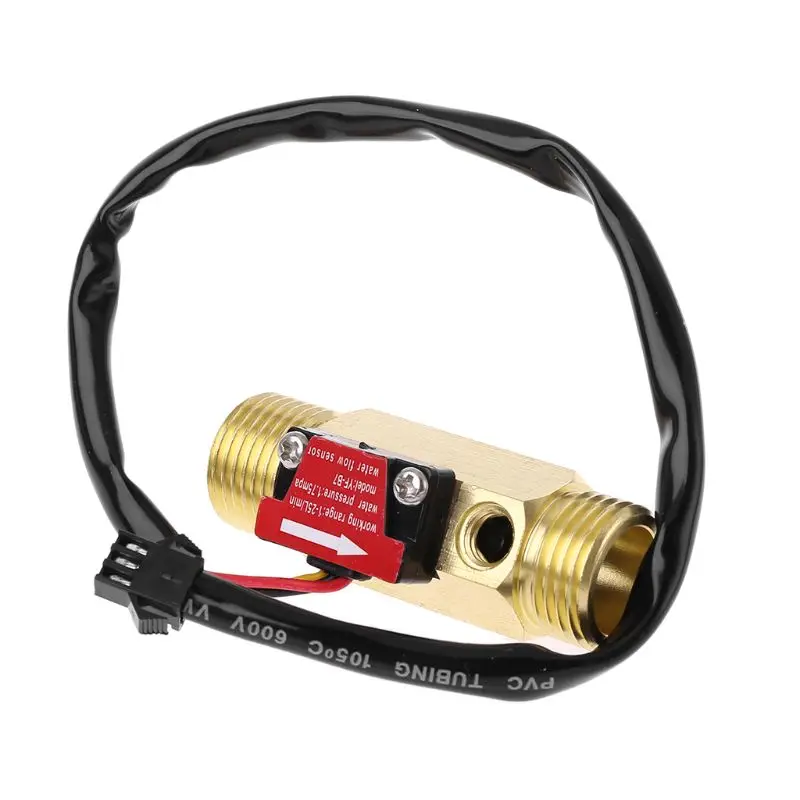

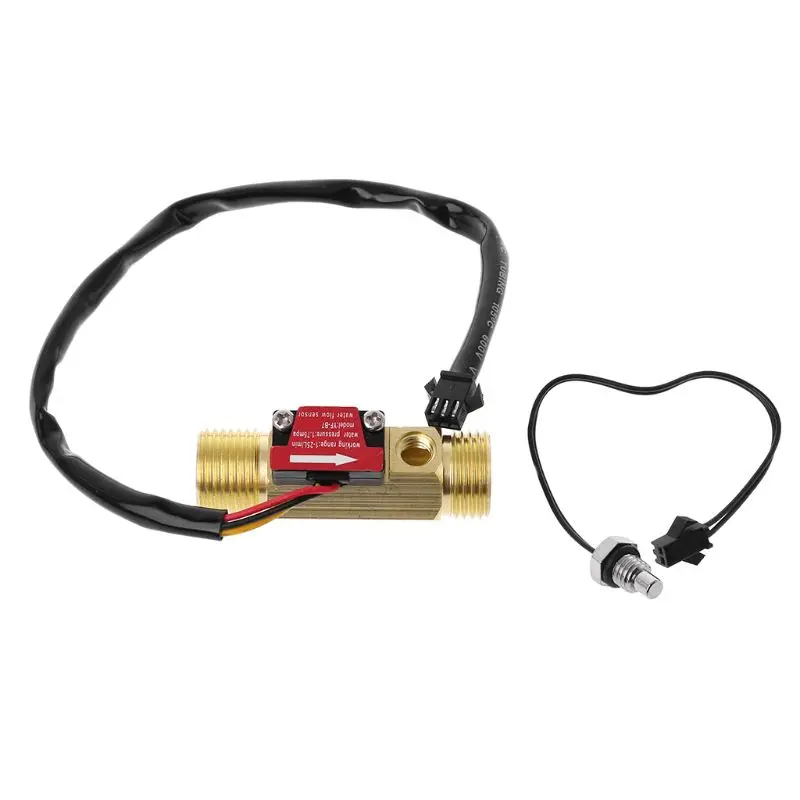

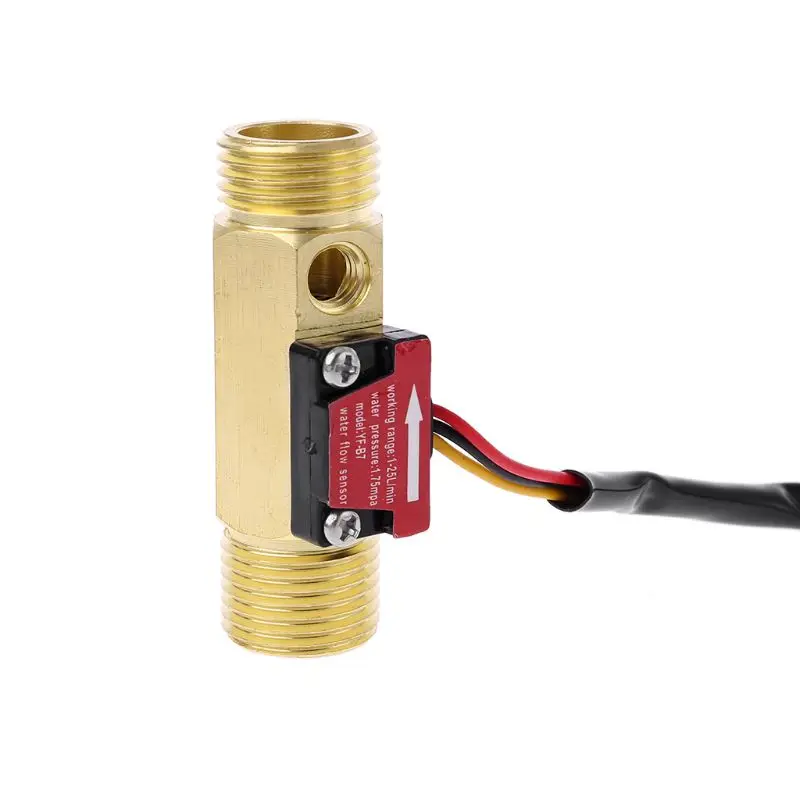

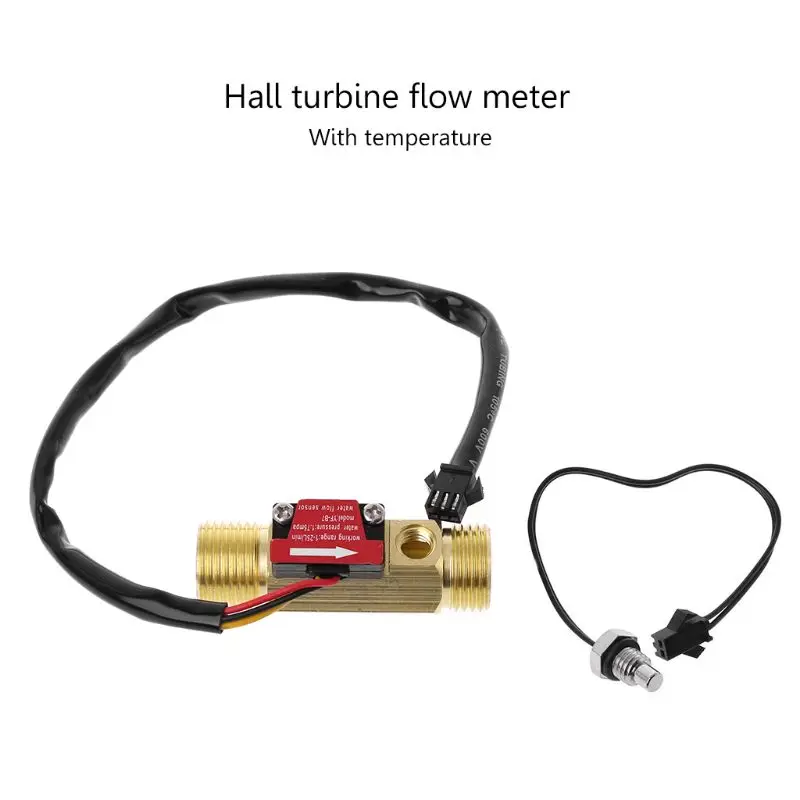

G1/2" Brass Hall Flow Rate Meter NTC Temperature Measurement Water Sensor | Meters
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-18-2026 | 0.80 руб. | 0.83 руб. | 0 руб. |
| Feb-18-2026 | 0.3 руб. | 0.20 руб. | 0 руб. |
| Jan-18-2026 | 0.66 руб. | 0.96 руб. | 0 руб. |
| Dec-18-2025 | 0.95 руб. | 0.66 руб. | 0 руб. |
| Nov-18-2025 | 0.19 руб. | 0.40 руб. | 0 руб. |
| Oct-18-2025 | 0.9 руб. | 0.25 руб. | 0 руб. |
| Sep-18-2025 | 0.38 руб. | 0.19 руб. | 0 руб. |
| Aug-18-2025 | 0.15 руб. | 0.71 руб. | 0 руб. |
| Jul-18-2025 | 0.71 руб. | 0.83 руб. | 0 руб. |
Описание товара
Product Description :
- Water Flow sensor includes a plastic/brass body housing, a water rotor, and a hall-effect sensor, PCB electronics board.
- Working performance : When the water flows through the rotor, then rotor is rolled.
- Its speed changes with different rate of flow. Then the magnetic rotor make reaction to Hall sensor,the hall-effect sensor outputs the corresponding pulse signal .
- The flow sensor is suitable to detect the flow in water dispenser or coffee machine .....
Specification:
- Material: Brass
- Type: Hall Flow Rate Meter
- Mounting Position: Horizontal & Vertical
- Application: Water heater, broiler and heat pump ...etc.
- Rated Voltage: DC 5V
- Pressure Resistance: ≥1.75MPa
- Working Voltage Range: DC 5-15V
- Insulation Resistance: >100MΩ
- Flow Pulse: (11*Q) Q=L/Min±3%
- Output Pulse Duty Ratio: 50%±10%
- Accuracy: (1～25L\MIN﹞±3%

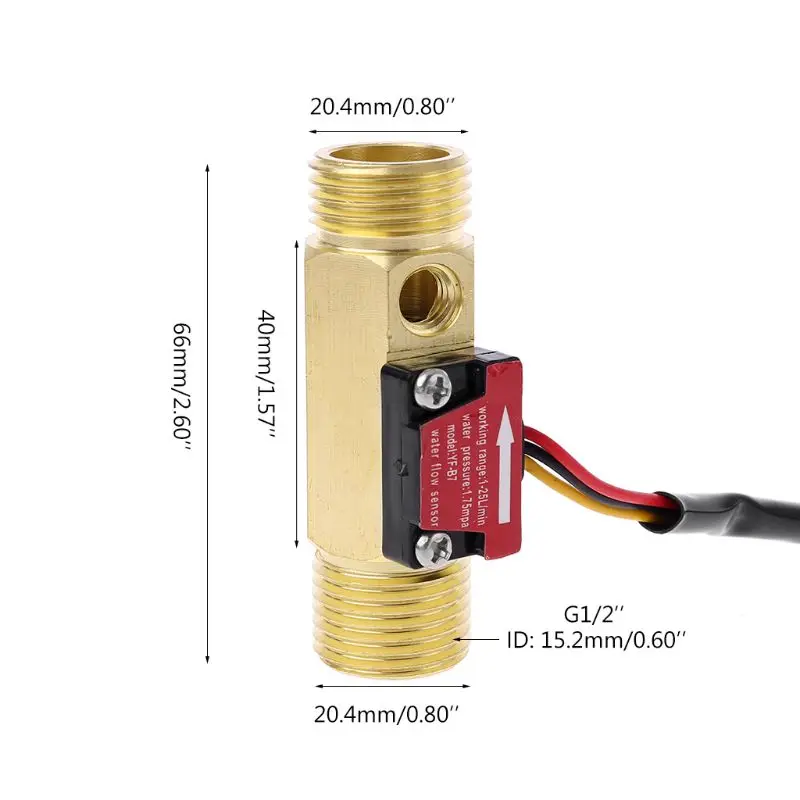

- Size: G 1/2"
- Quantity: 1 Pc
Flow Sensor Technical Data
- (1) Flow Rate: 1~25 L/min
- (2)Flow Pulse: F= 11 *Q ± 5% , Q=L/min
- (3) Working Voltage: DC3V ~ 24V
- (4) Working Current: 15mA
- (5) Suffering Pressure: Max 1.5Mpa
- (6) Working Temperature: -40 °C ~+80 °C,
- (7)Min Insulation Resistance:100M Ohm
- (8)Output Pulse Duty Cycle: 50% +/- 10%
- (9) Max output Pulse Voltage: >DC4.7V ( input voltage DC5V)
- (10)Min Output Pulse Voltage :<DC0.5V ( input voltage DC5V)
- (11) Sensor: Hall effect sensor, Digital Output. and temperature sensor
- (12) Wire Connection :
- Terminal 1 ( Red) : Vdd " + "
- Terminal 2 (Black) Vout " - "
- Terminal 3 ( Yellow ) Gnd : output
- Terminal 4 Temp Sensor
- Terminal 5 Temp. Sensor
- (13) Connector: Housing XH2.5-3P
TEMPERATURE VS RESISTANCE TABLE
Resistance 50k Ohms at 25deg. C
B Value 3950K at 25/50 deg. C
Temp. Range:－40-＋150℃
Note:
1. Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
- 1 x Hall Flow Rate Meter
