Описание товара
STM32 NUCLEO XNUCLEO-F103RB STM32 STM32F103RBT6 Development Board Compatible with Original NUCLEO-F103RB
STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB
XNUCLEO-F103RB Features
- Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6
- Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
- ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
- Supports mbed, build prototype quickly by mbed SDK and online tools
- Comprehensive free software HAL library including a variety of software examples
- Comes with a separated ST-LINK/V2 module
Advantages
| Compare | XNUCLEO | NUCLEO | Remarks |
|---|---|---|---|
| Arduino compatibility | UNO, Leonardo | UNO | XNUCLEO can be configured by jumper to compatible with UNO (default) or Leonardo |
| Arduino ICSP interface | Yes | None | ICSP is required by certain kinds of shields |
| USB connectivity | Yes | None | The USB connector of NUCLEO is for debugging ONLY, not available for USB connection |
| USB connector | Micro USB | Mini USB | Micro USB is the advanced USB standard |
| Morpho headers mark | Most | None | Now you can check the PCB mark instead of datasheet |
| Common interfaces are connected via | Jumpers | 0Ω resistors | Jumpers are much easier to use, need no soldering |
| UART debugging | Available while in-circuit debugging | Not available while in-circuit debugging | The NUCLEO integrated ST-LINK/V2 functional chip can be simulated as serial port, however, it's not available while in-circuit debugging, whereas XNUCLEO features a stand-alone USB TO UART chip. |
| 8MHz crystal | Yes | None | Timer is more accurate when using external 8MHz crystal |
| 32.768KHz crystal | Yes | None | Required for RTC |
| USB fuse | Yes (500mA) | None | The computer USB interface might be harmed without fuse |
| LEDs | 4 | 1 | The more LEDs, the easier to monitor program running status |
| UART indicator | Yes | None | Data communication is visible now |
| DC input | Yes | None | A convenience |
| Button position | Close to PCB edge | Close to Arduino connector | The button won't be untouchable when connecting with an Arduino shield if it were close to the PCB edge |
| ST-LINK | Separated | Integrated | ST-LINK can be used anywhere else |
| Comes with USB cable | Yes | None |

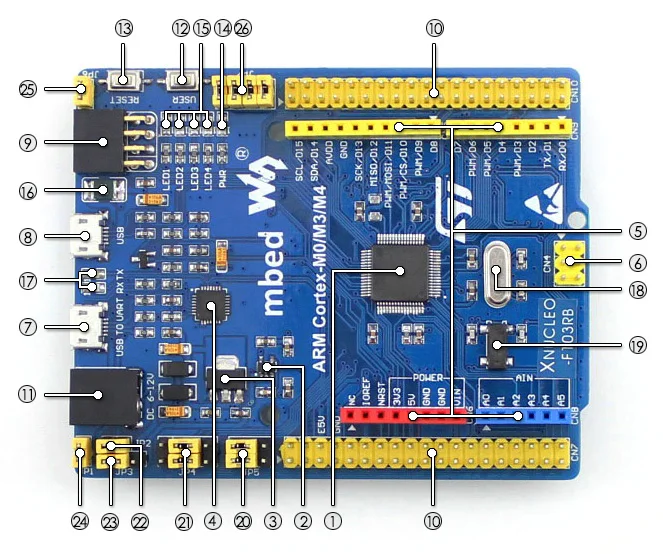

What's on the XNUCLEO-F103RB
- STM32F103RBT6
- Core : ARM® 32-bit Cortex™-M3
- Operating frequency : 72MHz
- Operating voltage : 2.0V-3.6V
- Package : LQFP64
- Memories : 128kB Flash, 20kB SRAM
- Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB
- AD/DA : 2 x AD (12 bit, 16 channels)
- SPX3819M5 : 3.3V voltage regulator
- AMS1117-5.0 : 5.0V voltage regulator
- CP2102 : USB to UART convertor
- Arduino connector : for connecting Arduino shields
- ICSP interface : Arduino ICSP
- USB TO UART : for debugging
- USB connector : USB communication interface
- SWD interface : for programming and debugging
- ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
- 6-12V DC input
- User button
- Reset button
- Power indicator
- User LED
- 500mA fast self-recovery fuse
- Serial port Rx/Tx indicator
- 8MHz crystal
- 32.768KHz crystal
- ADC/I2C selection jumper
- short A and B : Arduino A4, A5 is used as I2C
- short B and C : Arduino A4, A5 is used as ADC
- UART selection jumper
- MCU current test jumper : for low power tests
- Power selection jumper
- short 5V and U5V : powered from USB connection
- short 5V and E5V : powered from external power supply
- USB enable jumper
- short the jumper to enable
- open the jumper to disable
- User button jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
- User LED jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires

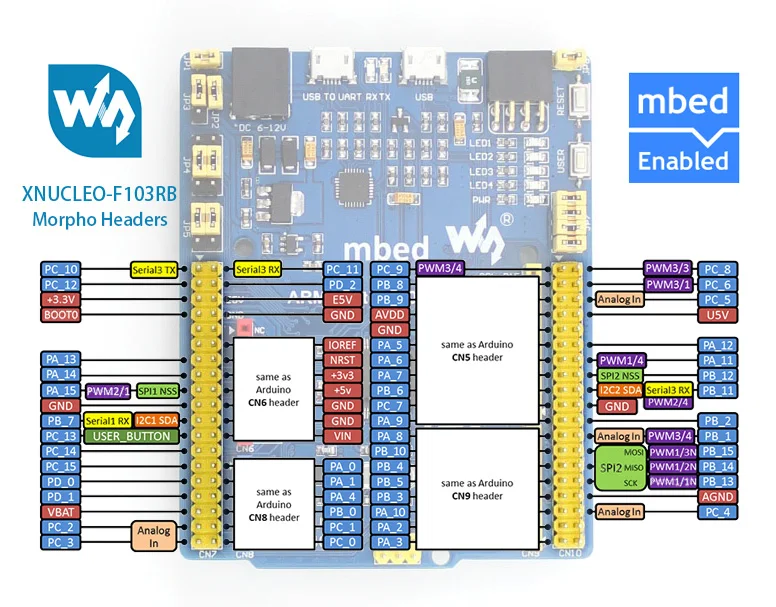

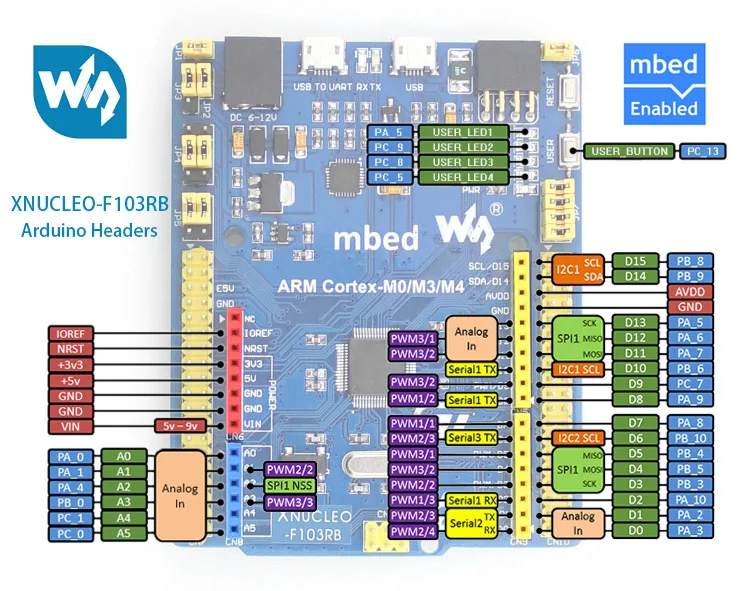

XNUCLEO-F103RB Expansion Headers

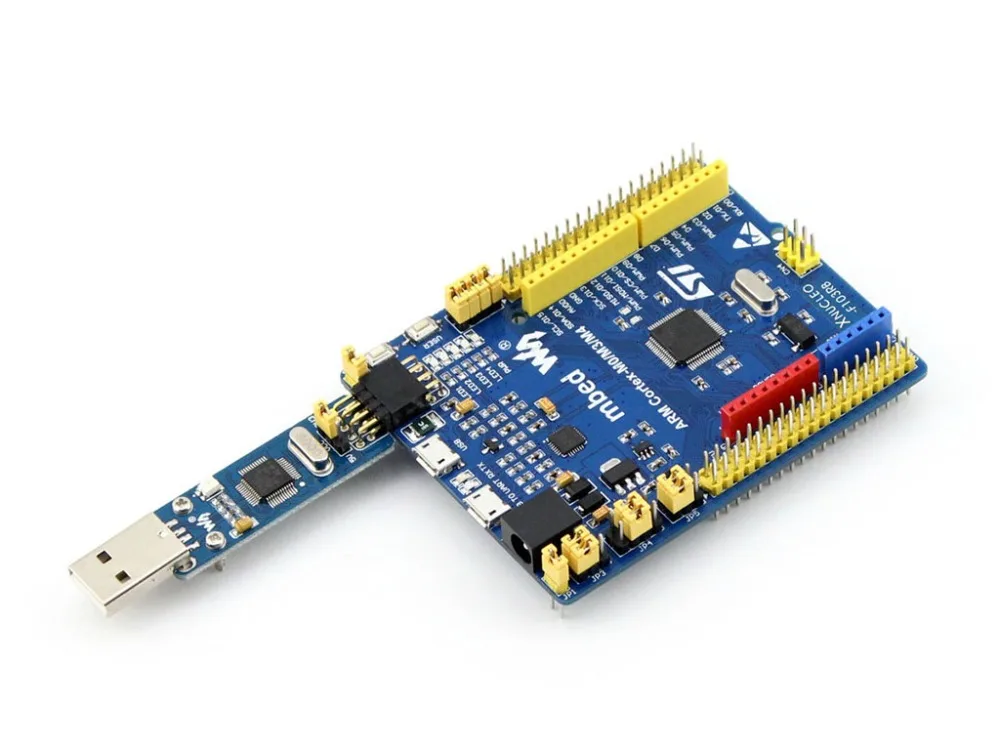

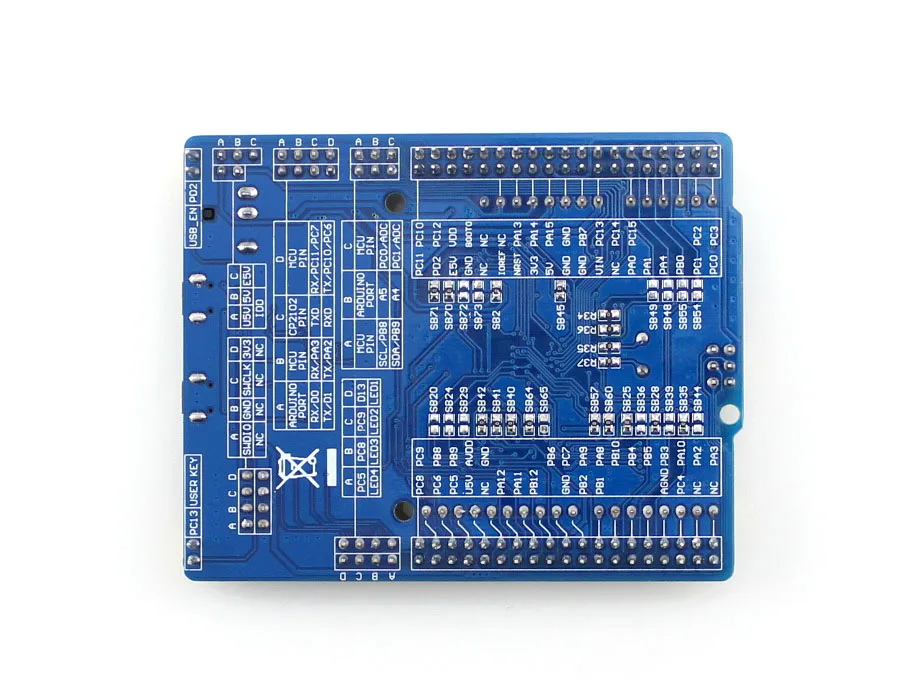

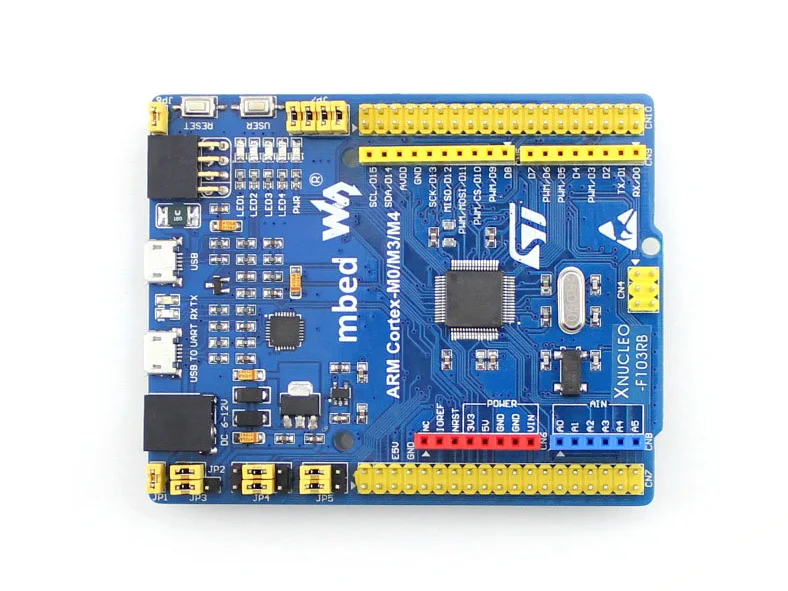

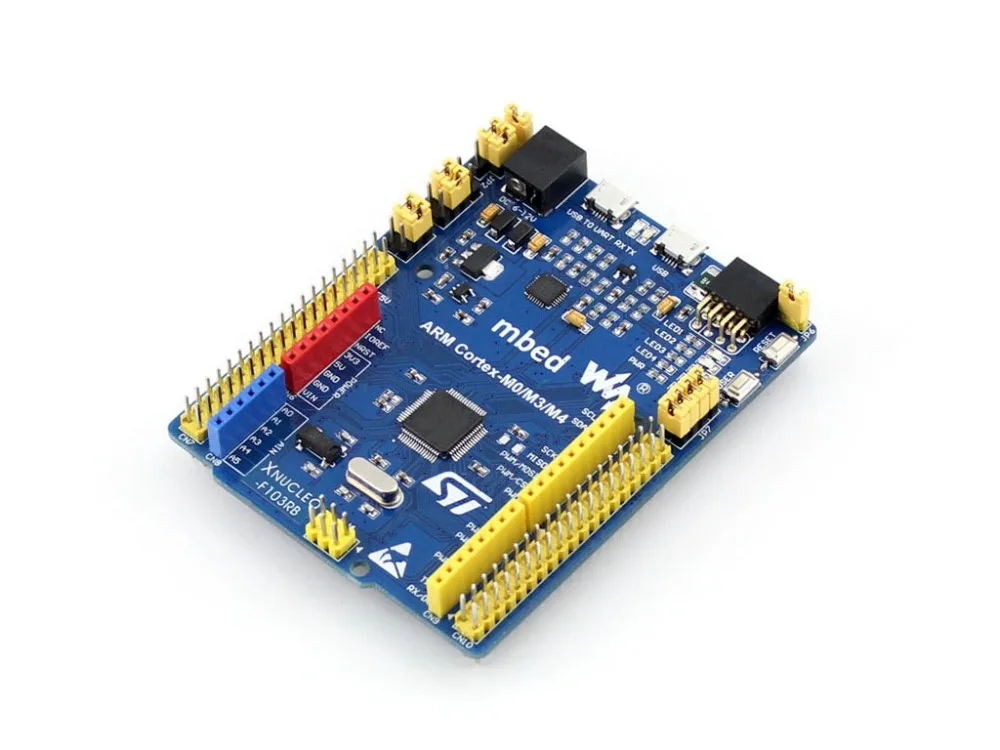

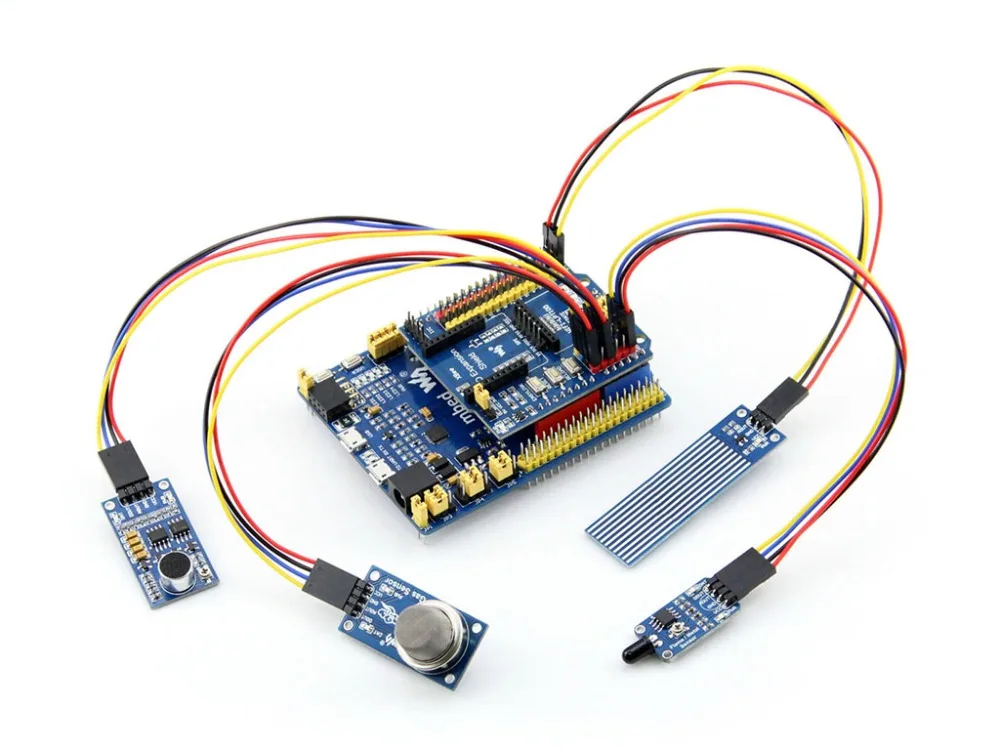

XNUCLEO-F103RB Photos
Development Resources
Wiki : www.waveshare.com/wiki/XNUCLEO-F103RB
PACKAGE CONTENT
weight: 0.154 kg
- XNUCLEO-F103RB x 1
- ST-LINK/V2 (mini) x 1
- USB Type A Plug to Micro B Plug Cable x 1
- USB Type A Plug to Receptacle Cable x 1
