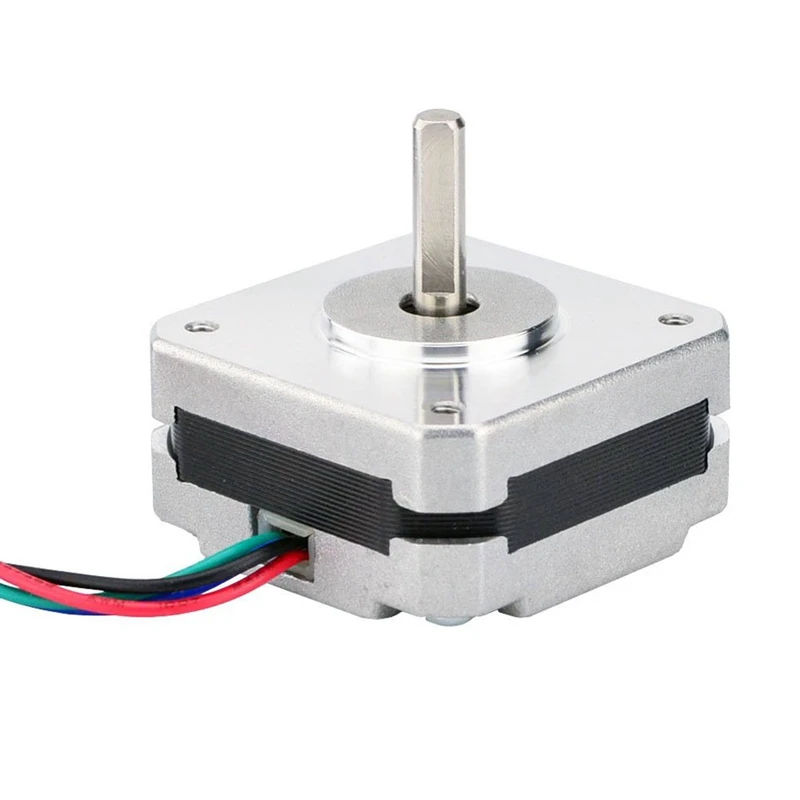

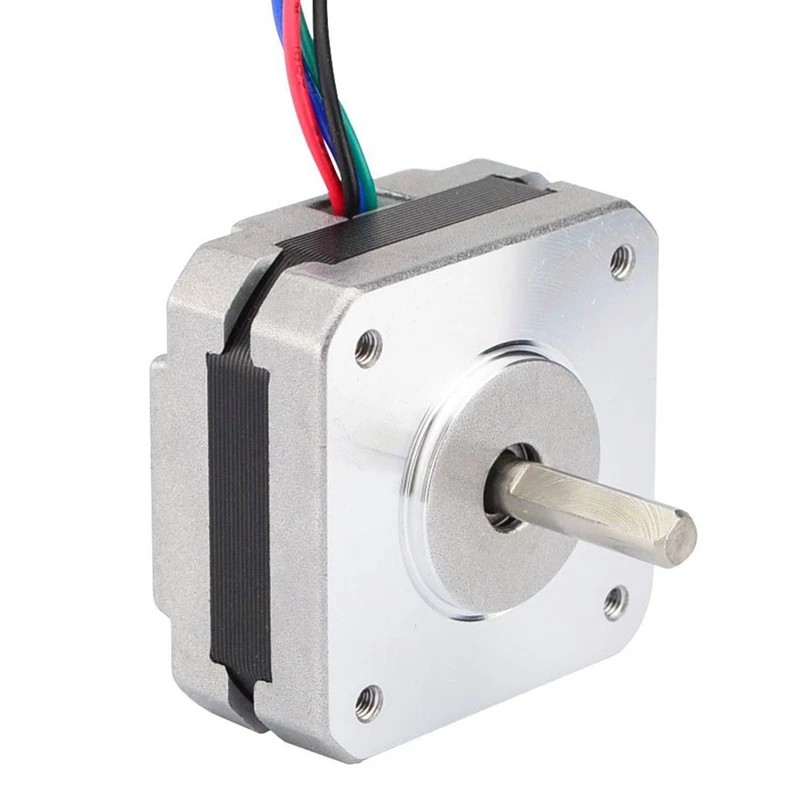

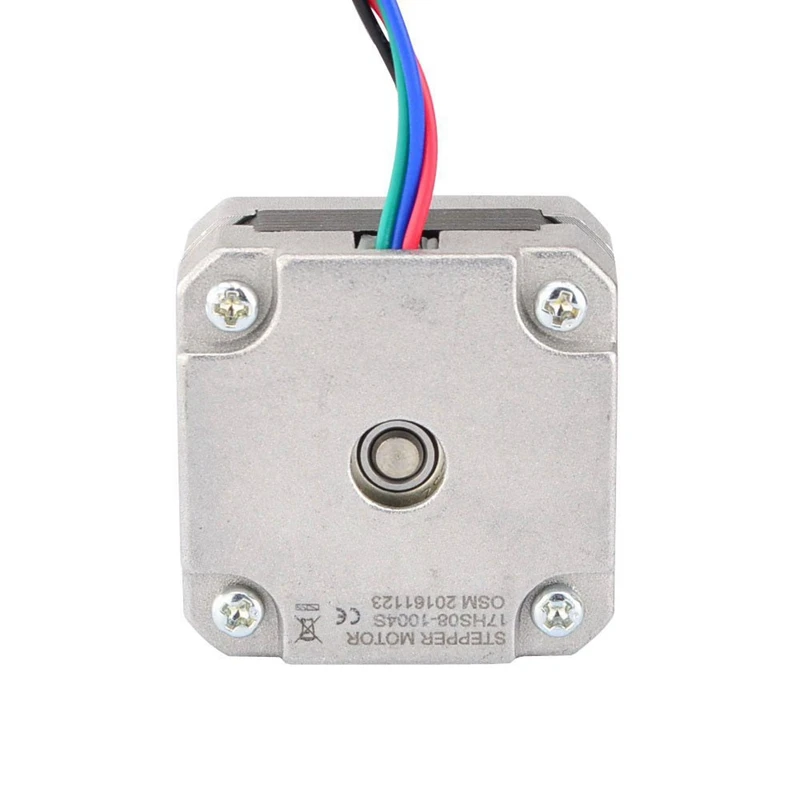

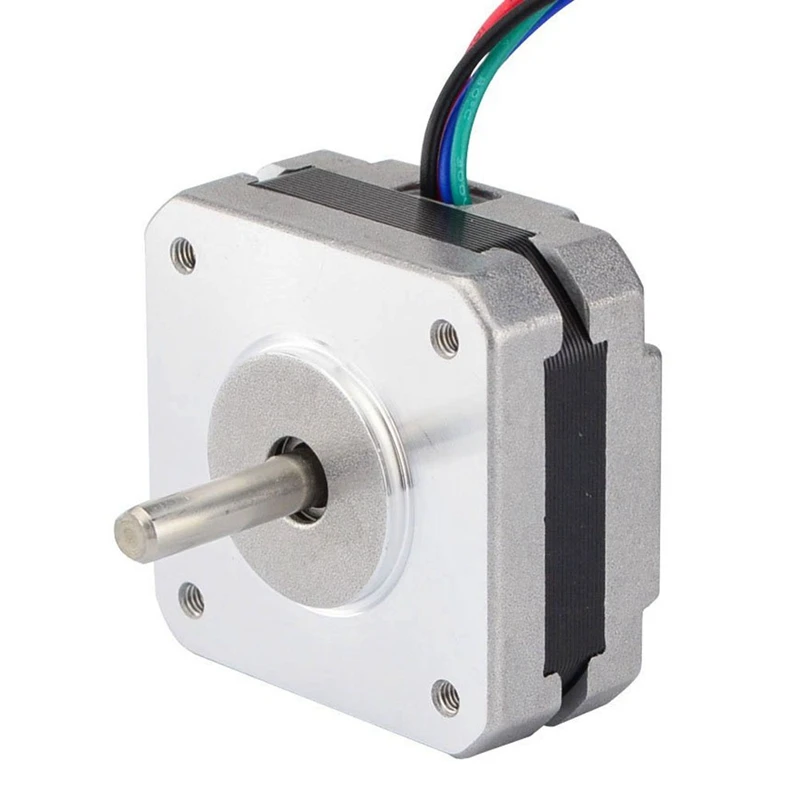

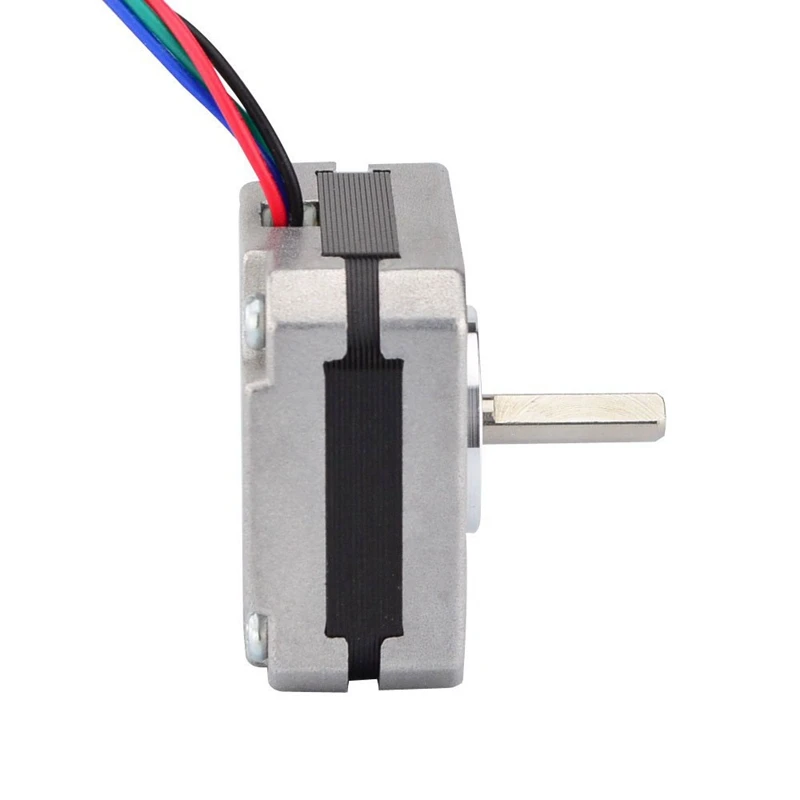

17Hs08-1004S 4-Lead Nema 17 Stepper Motor 20Mm 1A 13Ncm(18.4Oz.In) 42 Nema17 For Diy 3D Printer Cnc Xyz | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.78 руб. | 0.61 руб. | 0 руб. |
| Feb-19-2026 | 0.70 руб. | 0.42 руб. | 0 руб. |
| Jan-19-2026 | 0.43 руб. | 0.58 руб. | 0 руб. |
| Dec-19-2025 | 0.16 руб. | 0.76 руб. | 0 руб. |
| Nov-19-2025 | 0.45 руб. | 0.64 руб. | 0 руб. |
| Oct-19-2025 | 0.19 руб. | 0.95 руб. | 0 руб. |
| Sep-19-2025 | 0.20 руб. | 0.11 руб. | 0 руб. |
| Aug-19-2025 | 0.36 руб. | 0.40 руб. | 0 руб. |
| Jul-19-2025 | 0.85 руб. | 0.96 руб. | 0 руб. |
Описание товара
Short Height
13Ncm(18.4oz.in) holding torque
FOR NEMA 17 bipolar 1.65 inchx1.65 inchx0.79 inch 4-wire
1.8 deg. step angle(200 steps/rev)
Rated current 1.0A & resistance 3.5ohms
This is Short Height FOR Bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution).
Each phase draws current 1A, allowing for a holding torque of 13Ncm(18.4oz.in).
Color: silver
material: metal
Electrical Specification:
Manufacturer Part Number: 17HS08-1004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg.
Holding Torque: 13Ncm(18.4oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.5ohms
Inductance: 4.5mH+/-20%(1KHz)

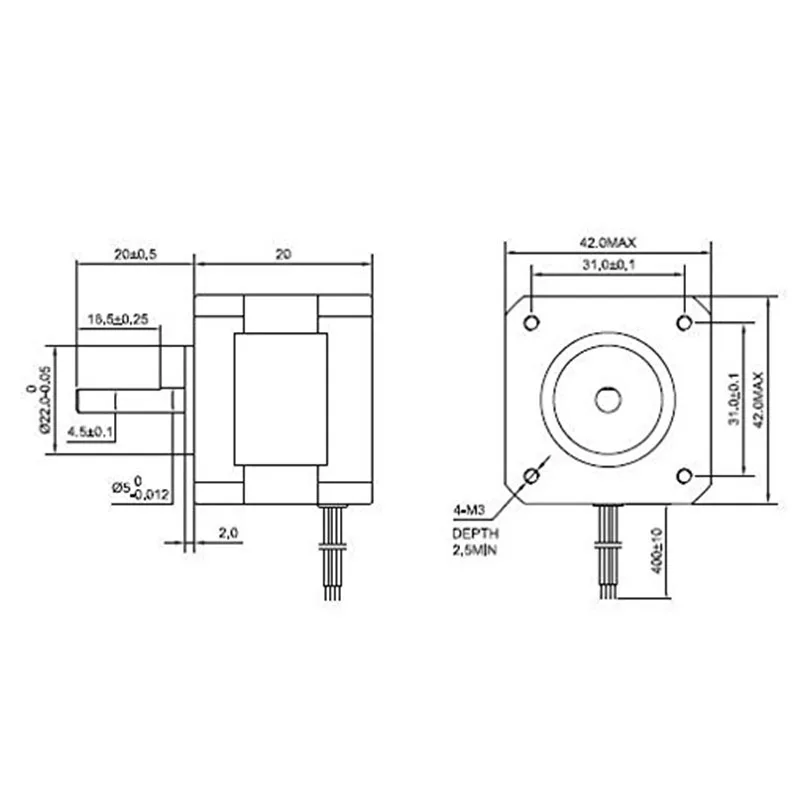

Physical Specification:
Frame Size: 42 x 42mm
Body Length: 20mm
Shaft Diameter: 5mm
Shaft Length: 20mm
D-cut Length: 16.5mm
Number of Leads: 4
Lead Length: 400mm
Weight: 140g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Package Contents:1* stepper motor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
