This 10X-60X stereo zoom microscopy system with 5MP heavy-duty digital camera is designed to meet the demands of modern microscopy applications, exceeding all expectations. The microscope comes with versatile illumination system that provides both incident (top) lighting and transmitted (bottom) illumination. You can choose between incident illumination shining down onto the object or transmitted illumination through the frosted stage plate. The first is used for the observation of three-dimensional objects like circuit boards, gem stones and insects; the second for the inspection of the objects that allow light to get through them like prepared slides. This microscope offers crystal clear sharp stereo images, large zoom magnification range and large working distance. Its 45° inclined trinocular head ensures an easy observation and rubber eyeguards provide further comfort.

The digital camera captures microscope images and streams live video on your computer screen. It gives 5MP high resolution, compatible with Windows XP/Vista/7/8, Mac OS X and Linux. With the user-friendly software included, you can capture microscope images, conduct measurements, record videos, or save them in BMP, TIFF, JPG, or other format. You can measure lengths, angles, areas and etc. This microscopy system is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. It is brand new in factory sealed box. Its Retail Value is $2,700.

Features :

10x-60x Large Zoom Magnification Range with 5MP Digital Camera
Both Captures Microscope Images and Streams Live Video on Your Computer Screen
Displays 5MP Real-time Clear Images with High Resolution
Saves Still Images in BMP, TIFF, JPG, PICT, PTL and Other Formats
Measures Lengths, Angles, Areas and etc. across Images
User-friendly Software Compatible with Windows 2000/XP/Vista/7/8 and Mac OS 10.6 & up
Reduction Lens Provides the Same Field of View on Screen as through Eyepieces
Quick and Easy USB2.0 Connection
Easy Installation and Operation
45° Inclined 360° Rotatable Trinocular Head
High Quality Optical Glass Elements
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field of View
Crystal Clear Original True Color Images
Both Ocular-Tubes with Adjustable Diopter
Large Working Distance
Metal Pillar Stand Finished with Stain Resistant Enamel
Accurate Alignment Ensuring a Fatigue-Free Long Hour Viewing
All Metal Mechanical Components
Adjustable Interpupillary Distance
Dual Halogen Illumination System
CE Approval Electric Apparatus
Manufactured under ISO 9001 Quality Control Standard
Excellent Five (5) Year Manufacturer Warranty
Unbeatable Lowest Price Guaranteed or the Difference Back!
Satisfaction Guaranteed or Your Money Back!
Specifications :

Head: 45° inclined 360° swiveling trinocular
Eyepiece: 30.5mm widefield 10X and 20X
Objective: 1.0-4.0X
Zoom Range: 6:1
Diopter Adjustment: ±5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Working Distance: 3-1/8"
Stage Plates: 3-3/4" (95mm) frosted glass plate and 3-3/4" (95mm) white/black plastic plate
Illumination: 110V power supply, 12V/10W halogen bulbs (please email for 220V version)
Image Sensor: 1/3” Color CMOS (Micron)
Pixel Size: 3.6 micron x 3.6micron
Chip Resolution: 5MP
Imaging Resolution: 3MP
File Format: BMP, TIFF, JPG and others
Frame Rate: 30 f/s @ 640x480, 15 f/s @1280x1024 pixels
Sensitivity: 1.8V/lux-sec (color)
Speed: Low/high adjustable
White Balance: Auto/Manual
Exposure Control: Auto/Manual
Exposure Time: 1ms to 0.3s
Scan Mode: Progressive
Shutter: Electronic Rolling Shutter
Format: Bayer Patten Color (10Bit)
Parameter: Gain (1~40), Gamma (0.1~2.50)
Mount: 23mm Photo Port, C CS-Mount (Ring Adapter Included)
Camera Body: Cast Aluminum
Power Supply: Via USB 2.0 connector
System Required: Windows 2000/XP/Vista/7/8 and Mac OS 10.6 & up with USB 2.0 port
Packing List :

One Trinocular Stereo Zoom Head
One Pillar Base with Top and Bottom Lights and Focusing Rack
One Pair of 30.5mm Widefield 10X Eyepieces
One Pair of 30.5mm Widefield 20X Eyepieces
One Frosted Round Glass Plate
One White/Black Round Plastic Plate
One Power Cord
One Pair of Clips
One Pair of Eye-guards
One Dust Cover

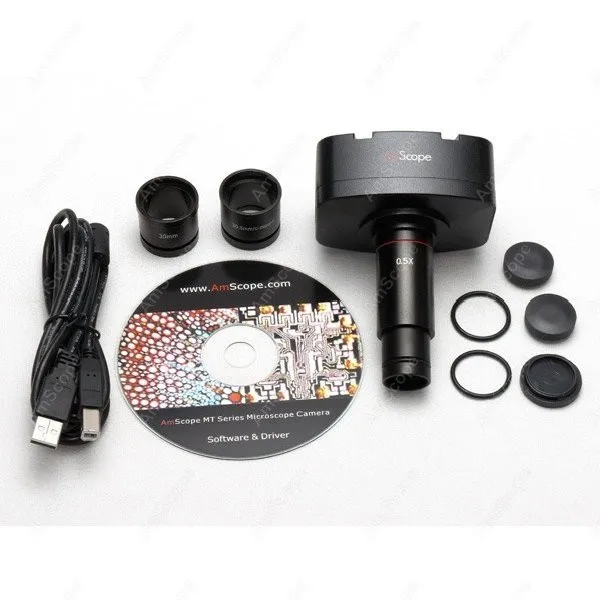

One 5MP Color Digital Camera
One 0.5X C-mount Relay Lens
One 6' (1.8m) USB Cable
Two Eyepiece Adapters, 30.0mm 30.5mm
One CD with AmScope Software, Driver and User's Instructions
Shipping Weight: 20 lbs
