Описание товара
|
|||
|
|
|
|
|
|
|
|

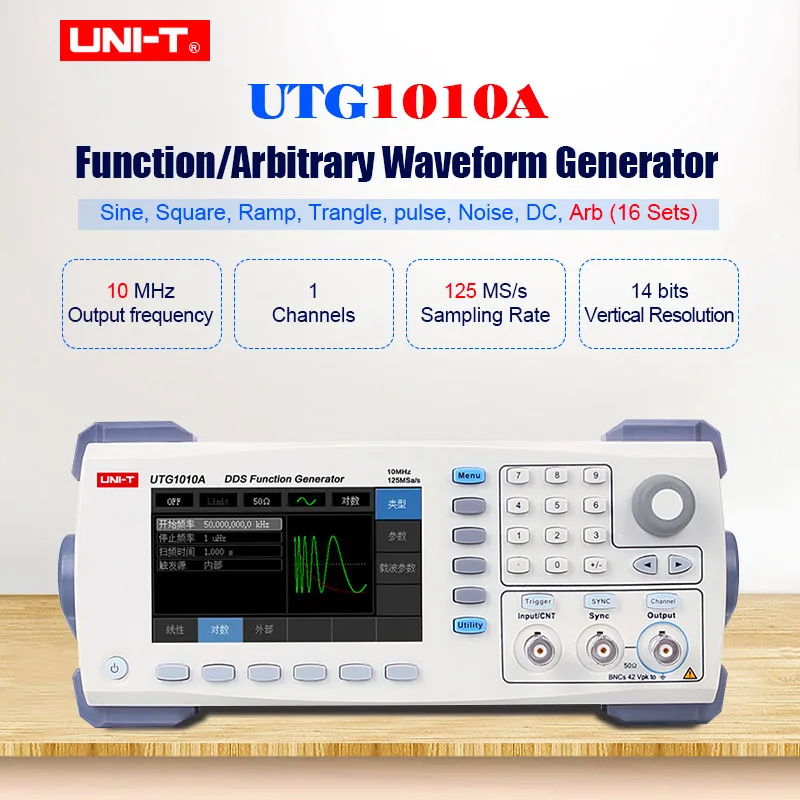

Function/Arbitrary Waveform Generator UTG1010A 1 Channel 125MS/s Sampling rate 5MHz Output frequency AM PM FM ASK FSK Modulation
Notice:
Due to UNI-T Factory rules:All UNI-T Band products standard packing list will not included paper manual and software CD from now on,Customer need download the manual and install software from UNI-T official website://www.uni-trend.com/index.php
When you download,if have any problem,please contact us anytime,we will offer support! Thanks!

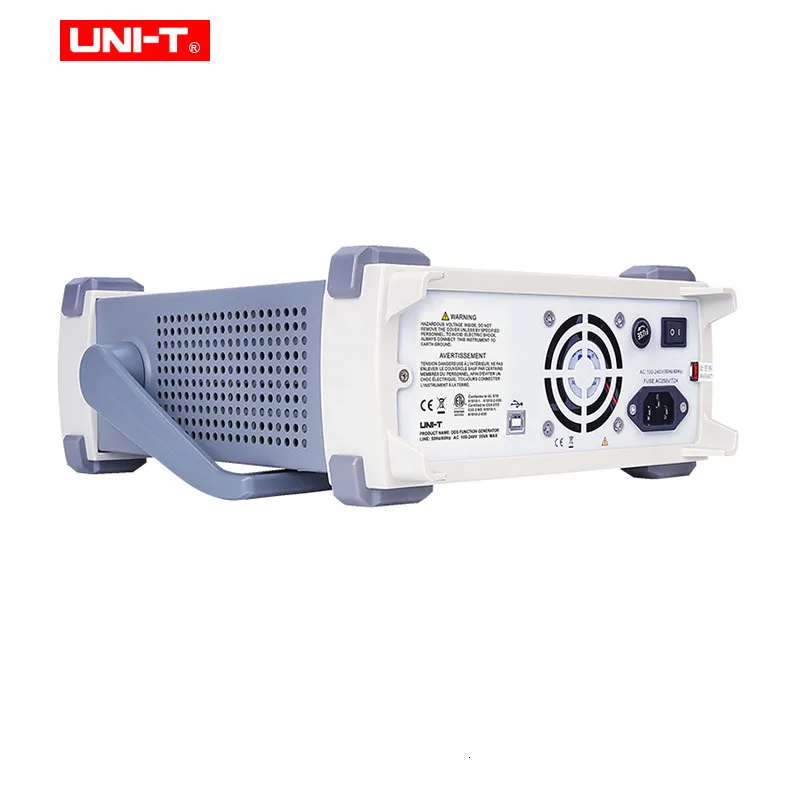

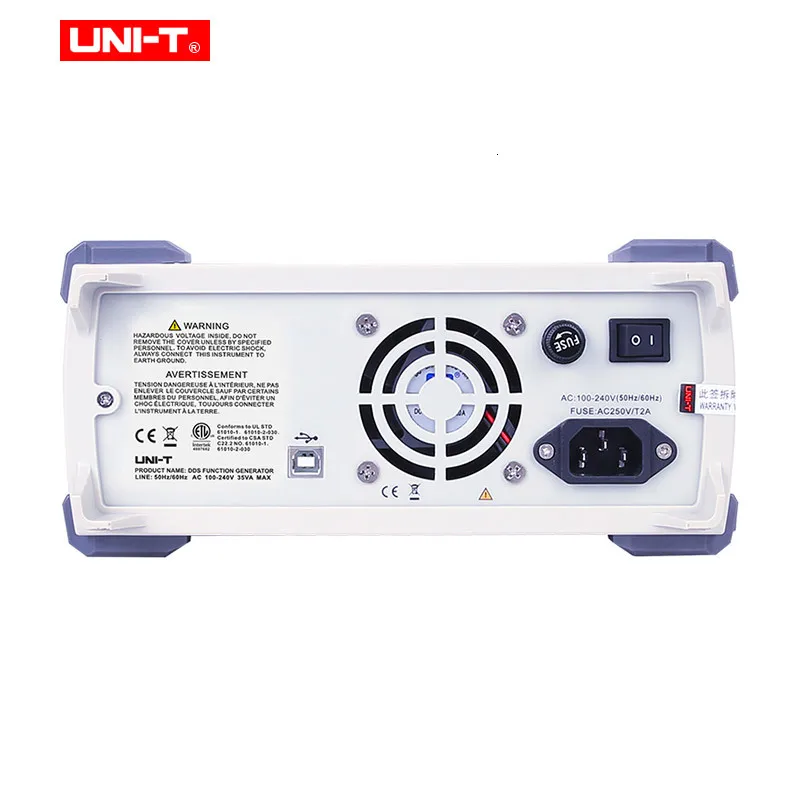

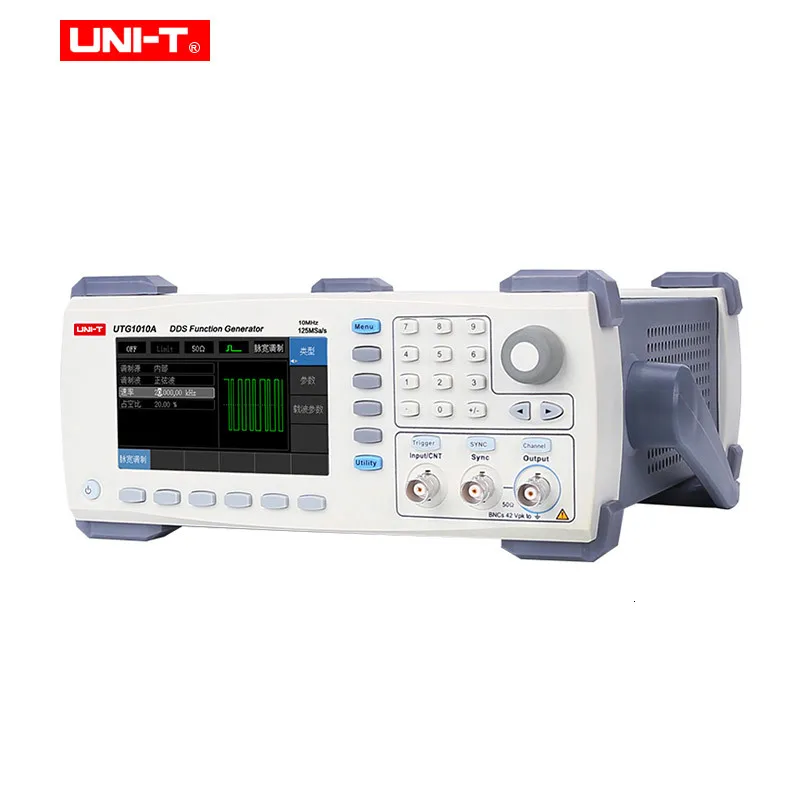

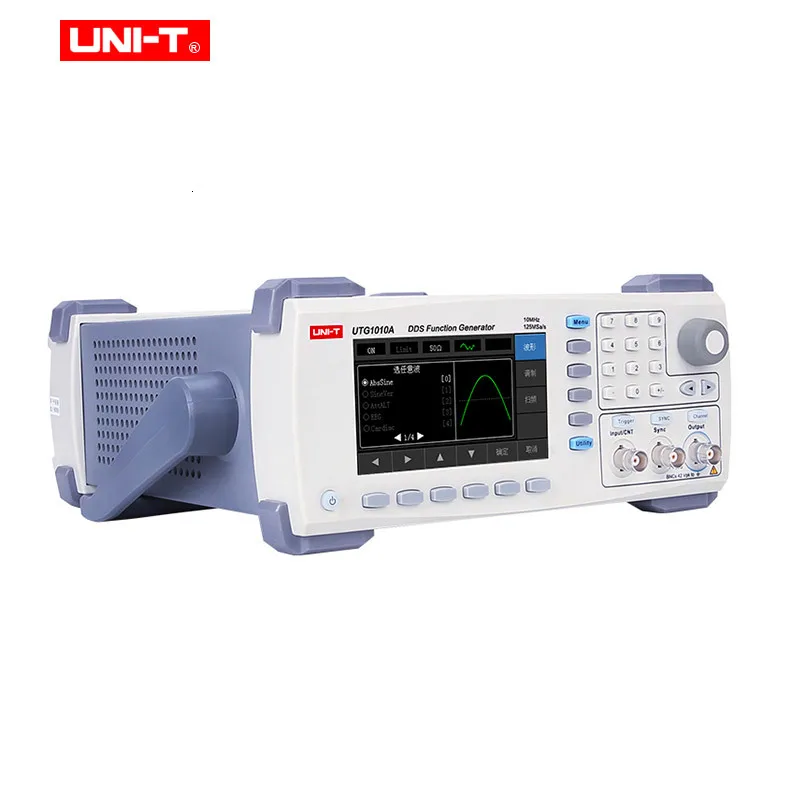

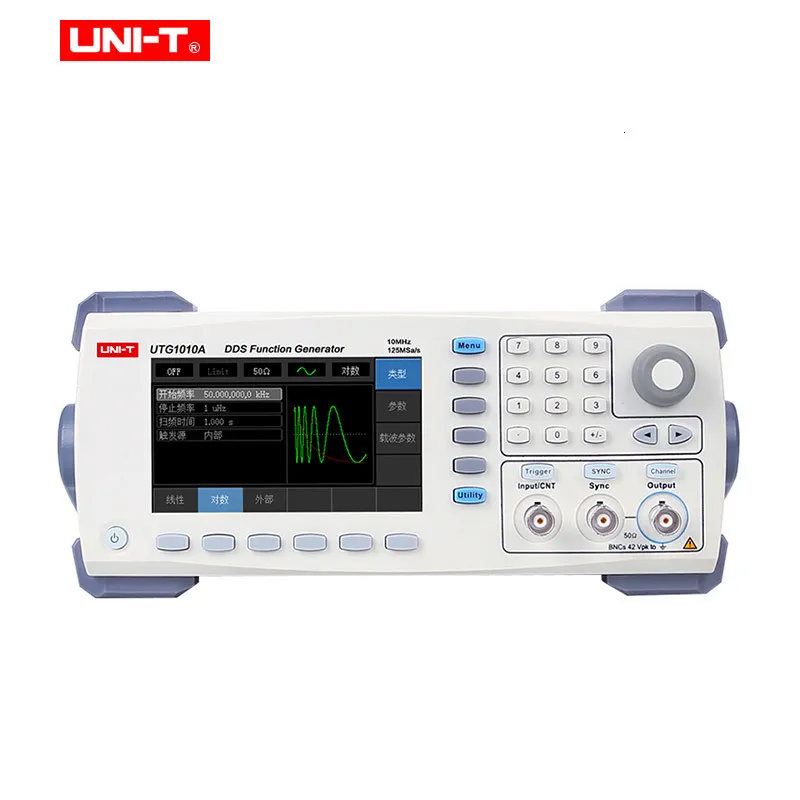

UTG1010A Function/Arbitrary Waveform Generator
UTG1000A function/arbitrary waveform generators adopt direct digital synthesis technology to produce accurate and stable waveform output with 1Hz resolution. Modulations such as AM, PM, FM, ASK, FSK etc. with internal or external source, linear and logarithmic sweeps and USB interface are available. The panel is ergonomically constructed for simple operation.
Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.
1. Intuitive interface design
2. Single channel
3. 125MS/s sampling rate, 14-bit vertical resolution
4. Integrated analog and digital design
5. 4.3 inches TFT LCD
| Specifications | ||
| Model | UTG1005A | UTG1010A |
| Channel | 1 | |
| Sampling rate | 125MS/s | |
| Output frequency | 5MHz | 10MHz |
| Frequency Characteristics | ||
| Sine | 1μHz~5MHz | 1μHz~10MHz |
| Square | 1μHz~5MHz | 1μHz~5MHz |
| Ramp | 1μHz~400kHz | 1μHz~400kHz |
| Pulse | 1μHz~5MHz | 1μHz~5MHz |
| Arbitrary | 1μHz~1MHz | 1μHz~2MHz |
| Resolution | 1μHz | |
| Accuracy | Within 90 days ± 50ppm | |
| Within 1 year ± 100ppm | ||
| 18°~28° | ||
| Arbitrary Waveform | ||
| Vertical resolution | 14 bits | |
| Max. memory depth | 16 sets of arbitrary waveforms | |
| Others | ||
| Output standard waveform | Sine, square, ramp, triangle, pulse, noise, DC, arbitrary | |
| Output amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (High Z) | |
| Modulation types | AM, FM, PM, PWM, ASK, FSK, PSK | |
| Interface | USB Device | |
| General Characteristics | ||
| Power | 100~240V AC, 50Hz/60Hz | |
| Display | 4.3 inches TFT LCD, WVGA (480 x 272) | |
| Product color | White and grey | |
| Product net weight | 3.2kg | |
| Product size | 165mm x 110mm x 320mm | |

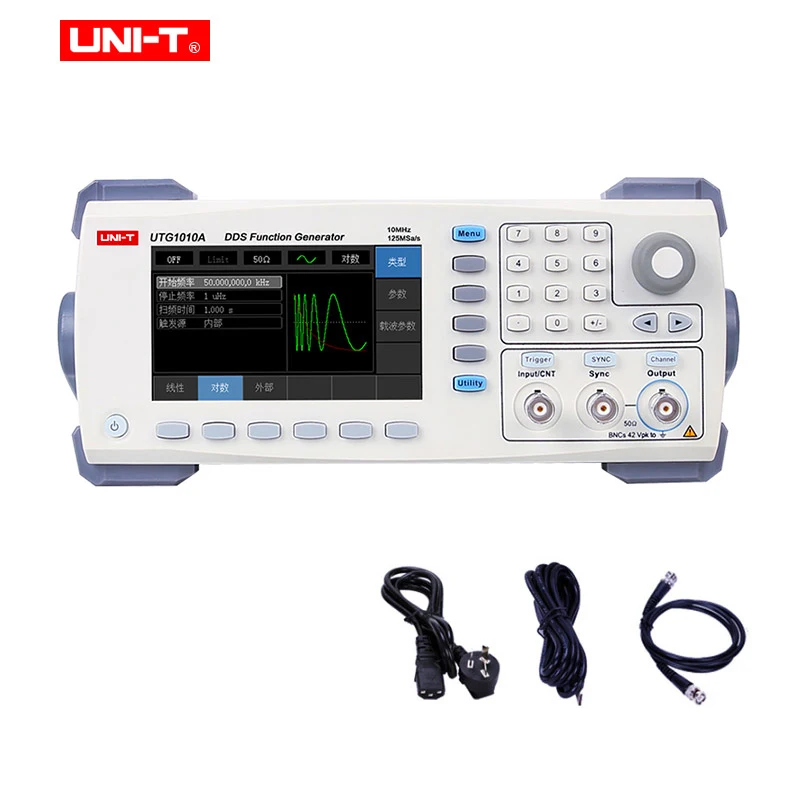

| Standard accessories | USB interface cable, power cord, BNC-BNC cable | |
| Standard individual packing | Carton box | |
| UTG1005A purchase link:http:/item/4000065421229.html | ||
PACK Listing:
1*UTG1005A Function/Arbitrary Waveform Generator
1*USB interface cable
1*power cord
1*BNC-BNC cable
1*Carton box
