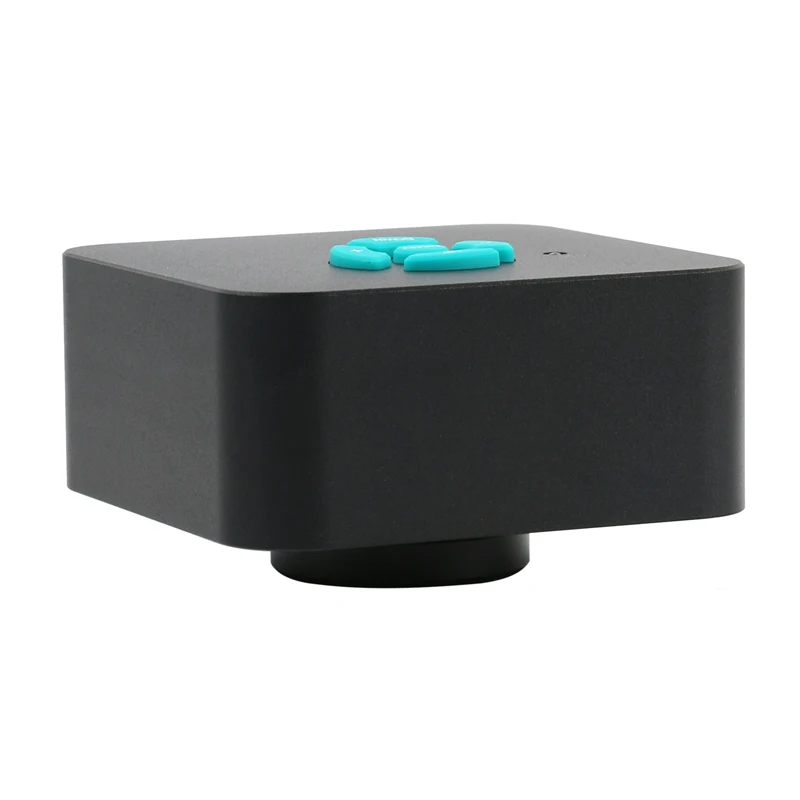

Full HD 1080P Sensor SONY IMX185 HDMI Electronic Digital Microscope Video Camera + 56 LED Ring Light+100X 180X 300X C Mount Lens |

---

wy-pl

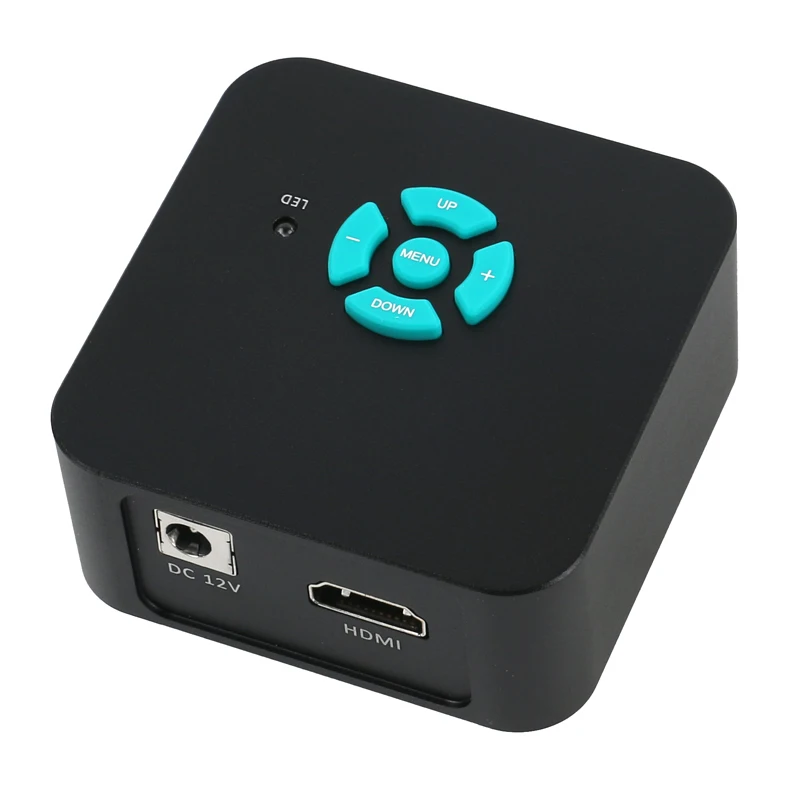

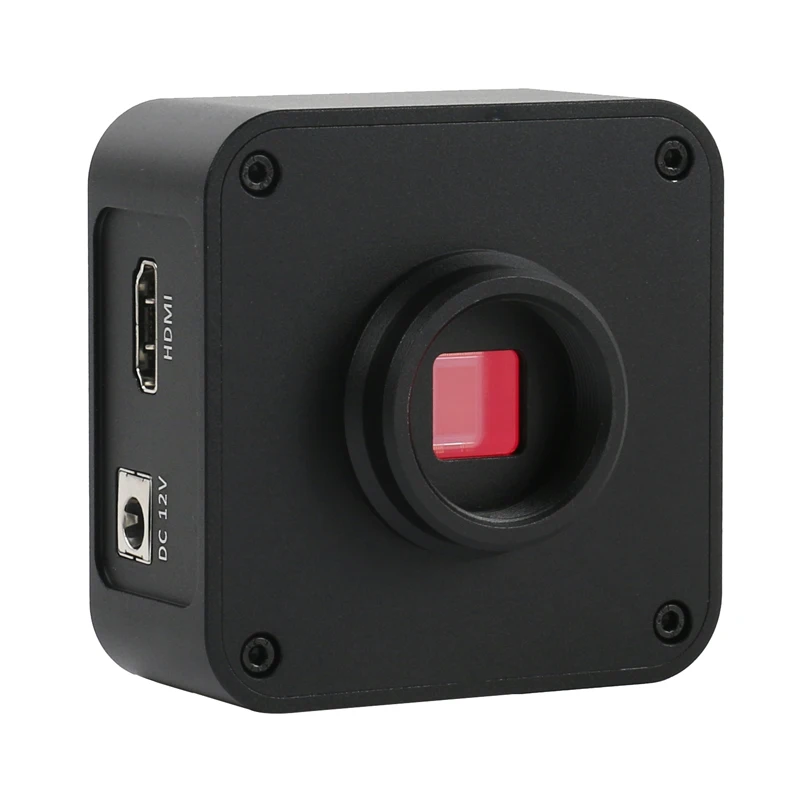

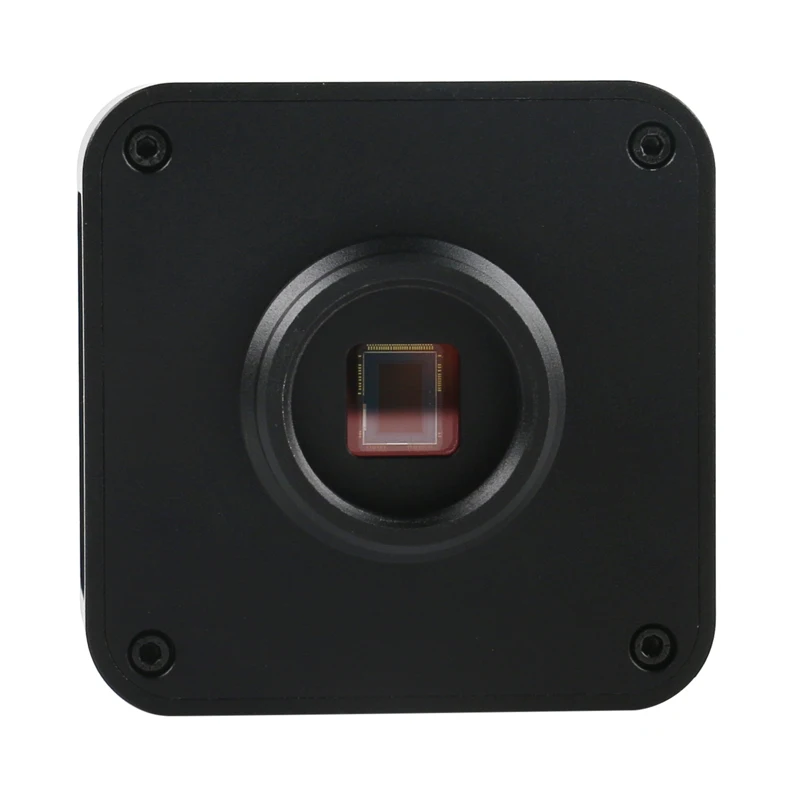

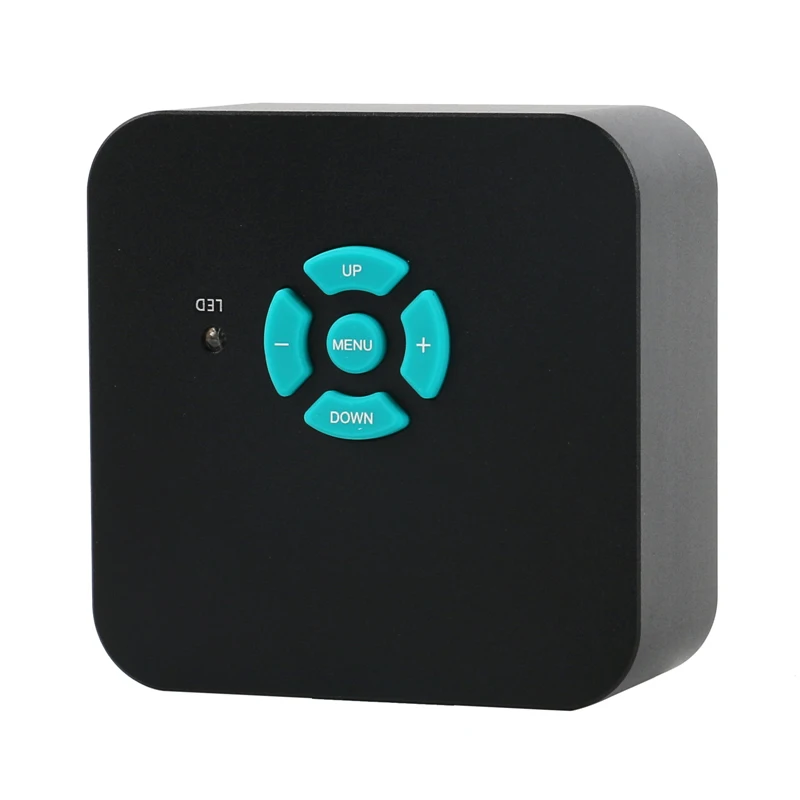

Product advantages: Using 2.0MP imported Sony CMOS image sensor; Using a 1/2.33-inch image sensor, the viewing angle is wider than 1/3 inch; HDMI 1080P 60 frame image output; One button freeze/thaw function; Support manual / automatic exposure / one-button exposure, exposure compensation value adjustment; Support manual / automatic white balance / one button white balance, red, green, blue adjustable; Provide 8 drawing lines, line color, thickness, and adjustable position; Support OSD menu adjustment; Support shutdown settings parameter saving; Aluminum alloy casing machined by CNC finishing technology; Specifications: Sensor: 1/2.33 inch SONY IMX185 CMOS sensor Pixel size: 3.75μm × 3.75μm HDMI output: 1920*1080 60/FPS Lens interface: C/CS Exposure: Auto / Manual / One Touch Exposure Exposure compensation: support White balance: automatic / manual / one-button white balance, support RGB adjustable Input voltage: DC 12V 2A Dash: Support 8 lines, color, thickness and position adjustable WDR: HDR 1-5 Level adjustable Gain: SE 1-3 Level adjustable Select glare suppression: 1,2,3 Select Edge enhancement mode: 1,2,3 Select Color Adjustment: R, G, B independently adjust Centerline: Support Color adjustment: Auto / Manual Bringhtness adjustment : Auto / Manual Net weight: 250 grams Gross weight: 450 grams Product size: 68*68*47mm Package size:145*130*70mm 100X C-MOUNT Lens Magnification Power by 0.12 - 2X (about 8X - 100X on the display) Work distance: 100mm Visual field :2.4mm-32mm Size: 115mm(L) * 40mm(DIA) Weight: 210g 180X C-MOUNT Lens Working distance: 95mm

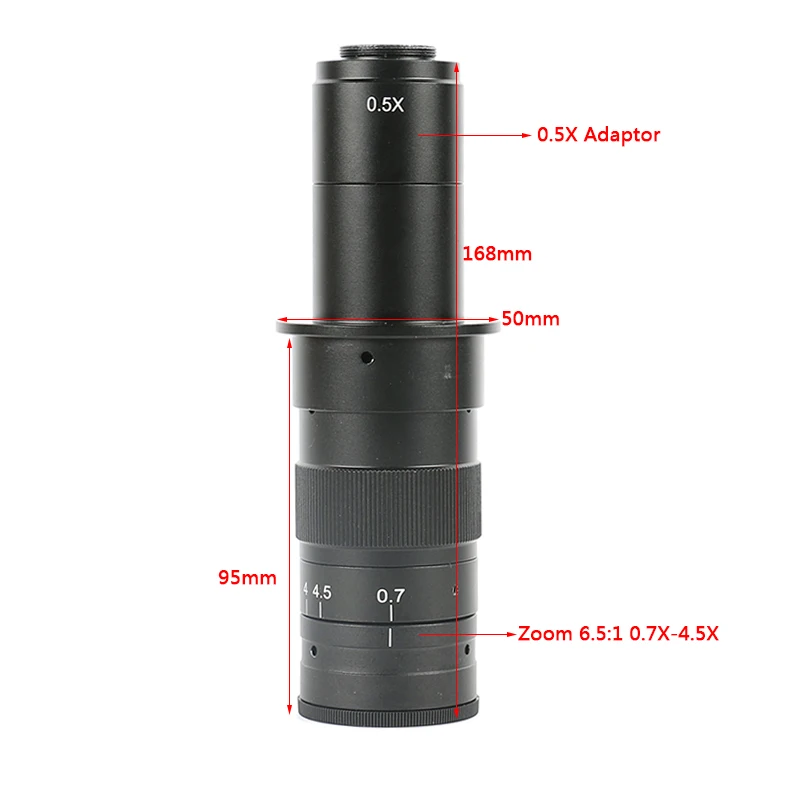

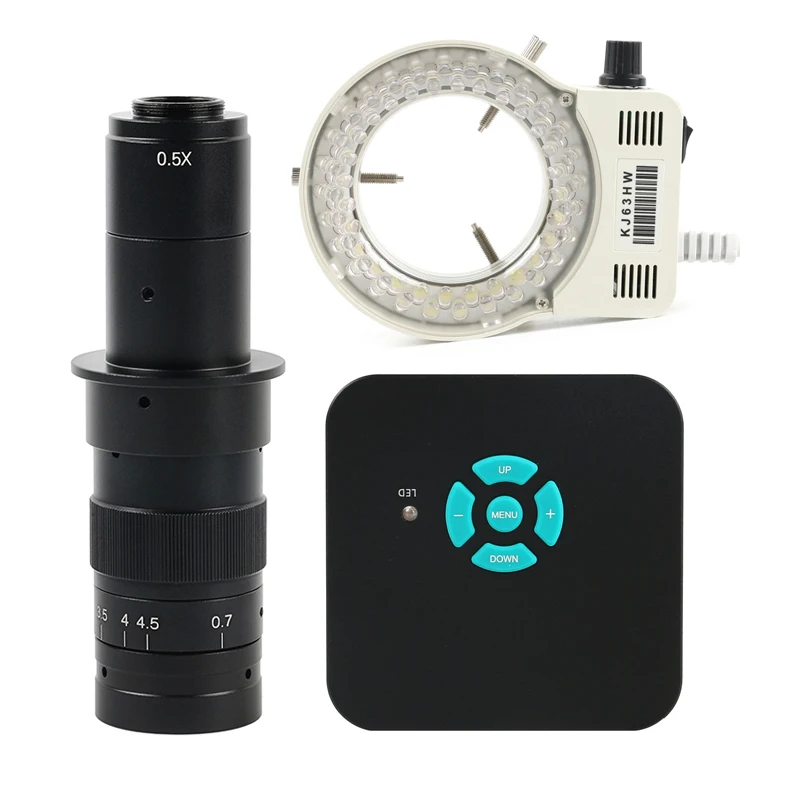

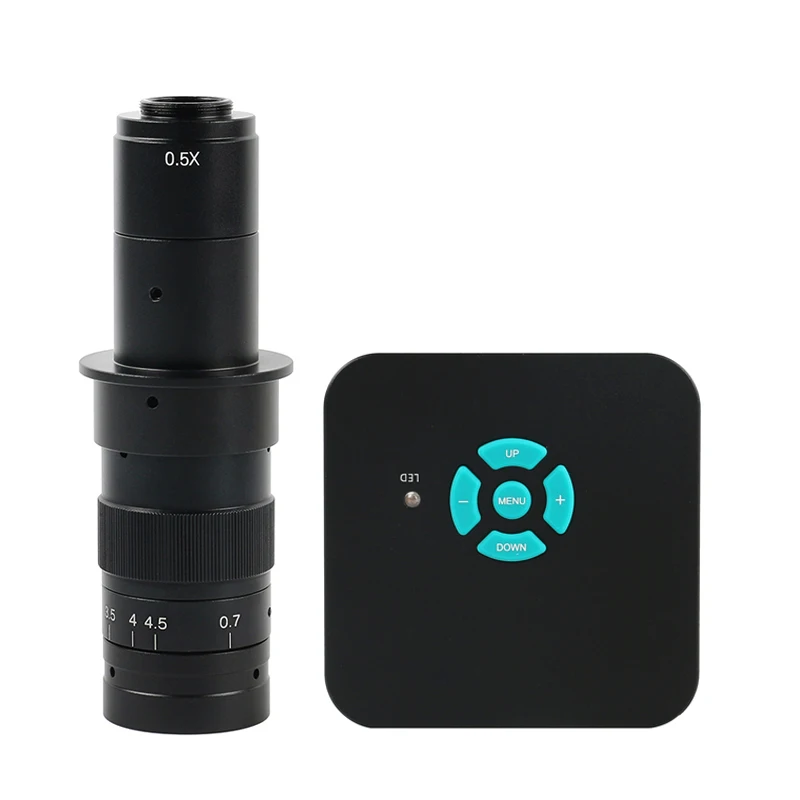

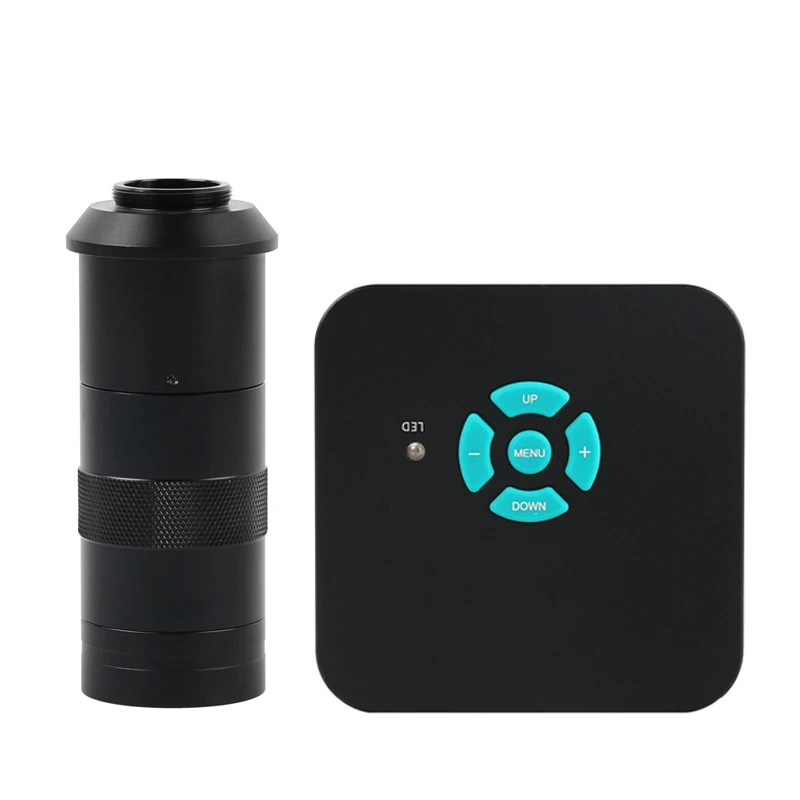

Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

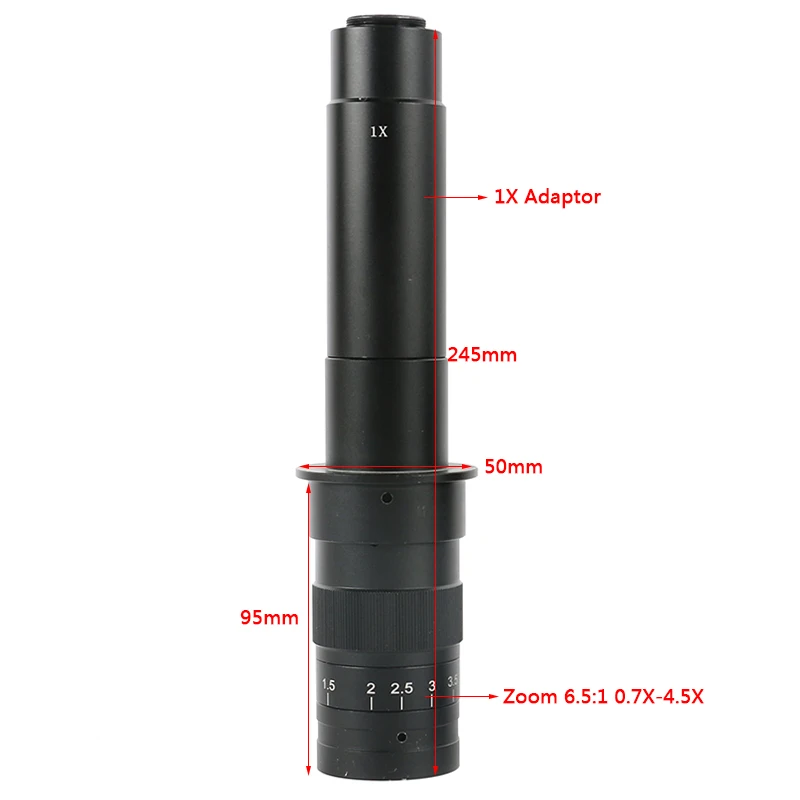

Size: 180mm(L) * 50mm(DIA) 300X C-MOUNT Lens Working distance: 95mm

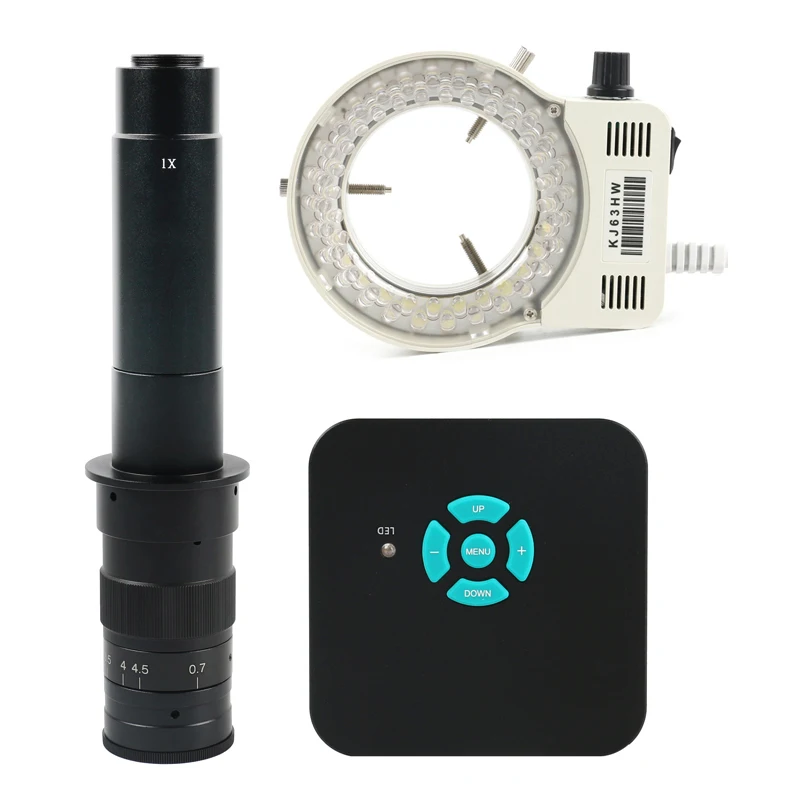

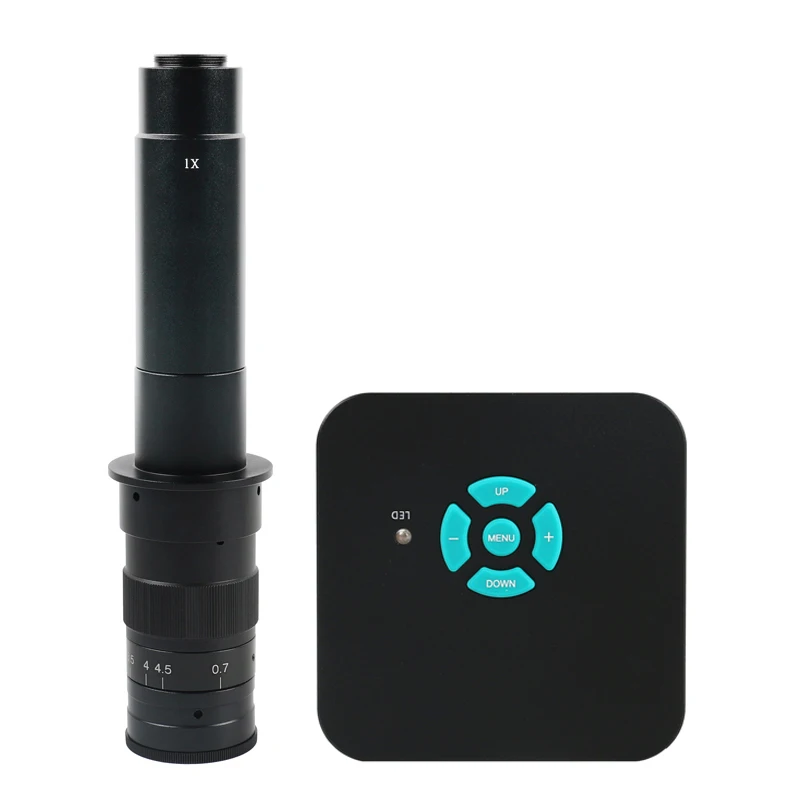

Zoom c-mount Lens
1X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 248mm(L) * 50mm(DIA) 56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

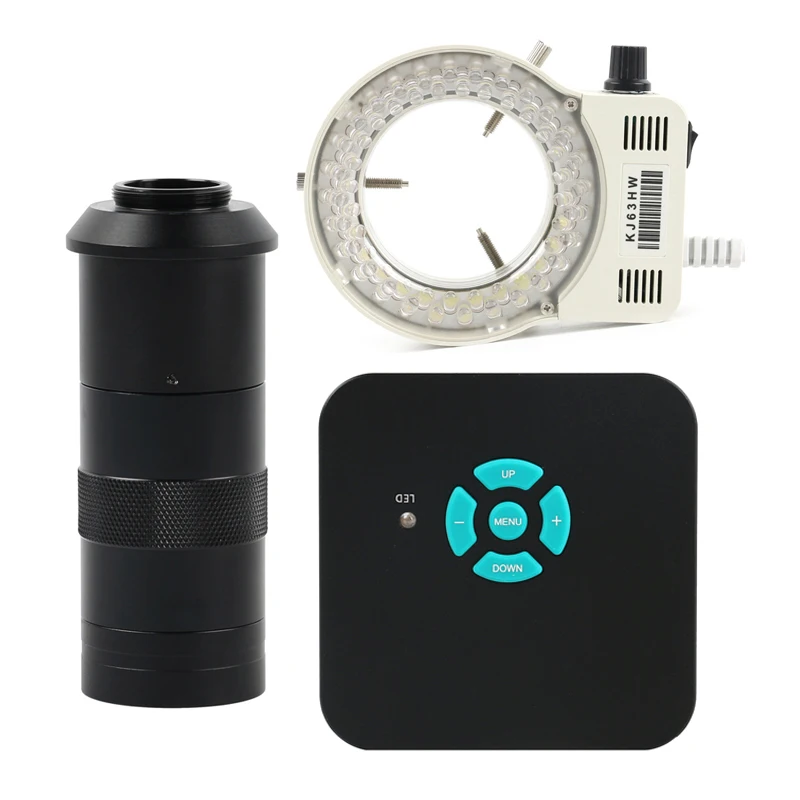

Working Distance: 27mm-120mm Packing including: 1 x HDMI Camera 1 x Power supply 1 x HDMI Line Optional accessories incluede: 1 x C-MOUNT Lens(100X or 180X or 300X) 1 x 56 LED Adjustable Microscope Ring Light
