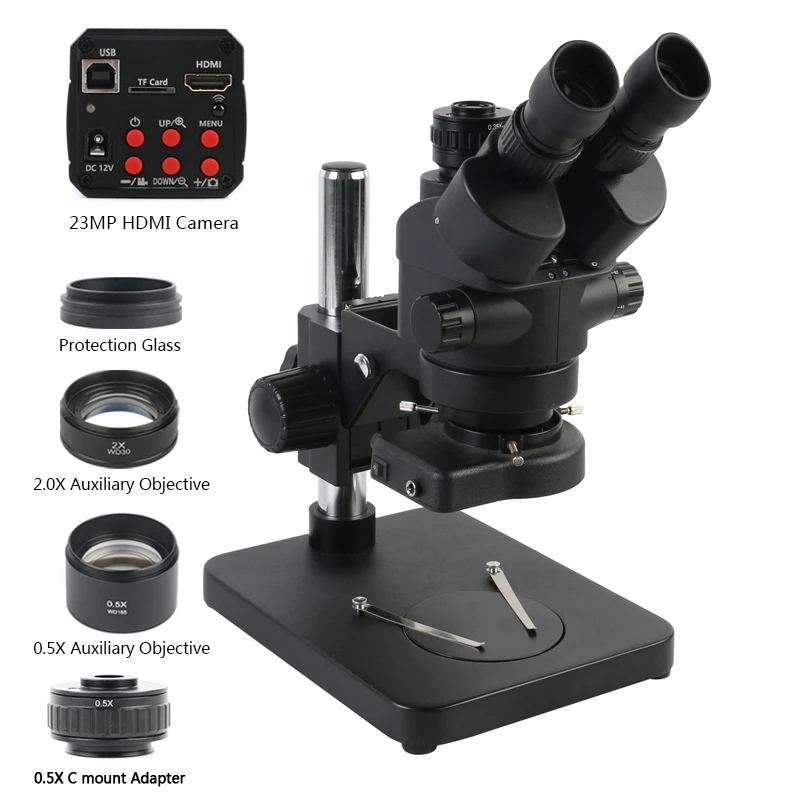

3.5X-90X Zoom Industrial Lab Simul-focal Stereo Microscope Trinocular Set + 23MP USB HDMI Video Camera For PCB Repair | Инструменты

---

wy-plugin-start

Hot Commodity

Trinocular Stereo Microscope 7X-45X Continuous Zoom Magnification+14MP HDMI USB Microscope Video Camera for Repair iPhone PCB $332.99	16MP 1080P HDMI USB Camera Trinocular Stereo Continues Zoom 7-45X Microscope for Fix Repair iPhone PCB Electronic Tools $356.99	Full HD 16MP 1080P HDMI USB Video Camera Trinocular Stereo Microscope 7X-45X Continuous Zoom Magnification For Repair iPhone $369.99	Trinocular Stereo Microscope Continuous Zoom 7X-45X+VGA USB AV TV Digital Industrial Video Microscope Camera +144 led Light $276.99
7X-45X Trinocular Zoom Stereo Microscope 144 LED Light Measurement soft 1080P VGA HDMI Camera for Phone Repairing PCB Inspection $369.99	7X-45X Trinocular Illuminated Zoom Stereo Microscope with LED Light 13MP 720P VGA HDMI Camera for Phone Repairing PCB Inspection $279.99	Trinocular Stereo Microscope 3.5X-90X Continuous Zoom Magnification+14MP HDMI USB Video Camera+Big stand+0.5X/2X Objective Lens $386.99	Trinocular Stereo Microscope 7X-90X Continuous Zoom Magnification+16MP 1080P HDMI USB Video Camera+144 LED Light+0.5x/2.0x Lens $399.99

wy-plugin-end

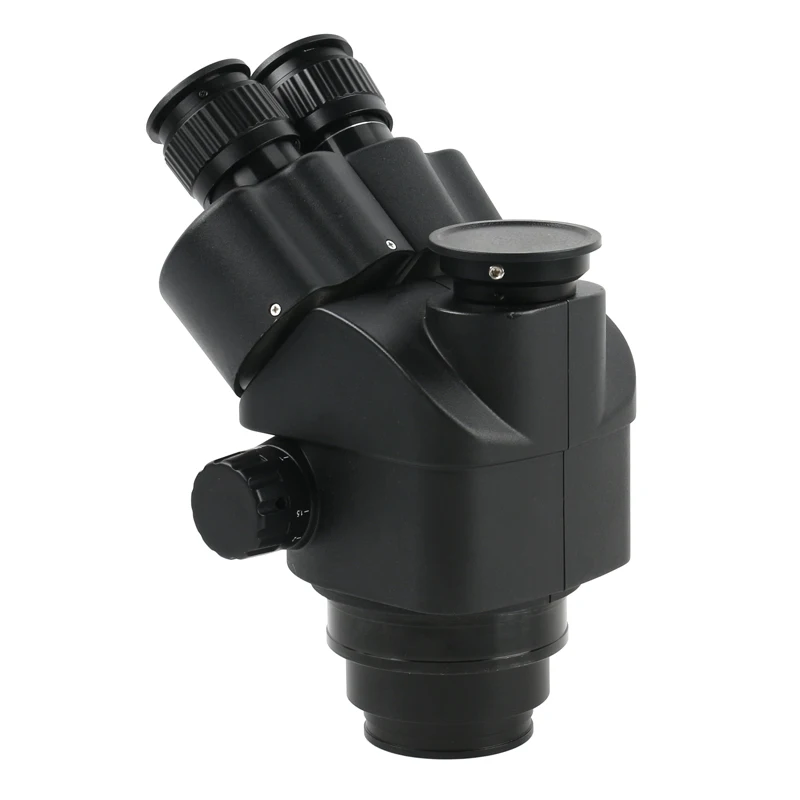

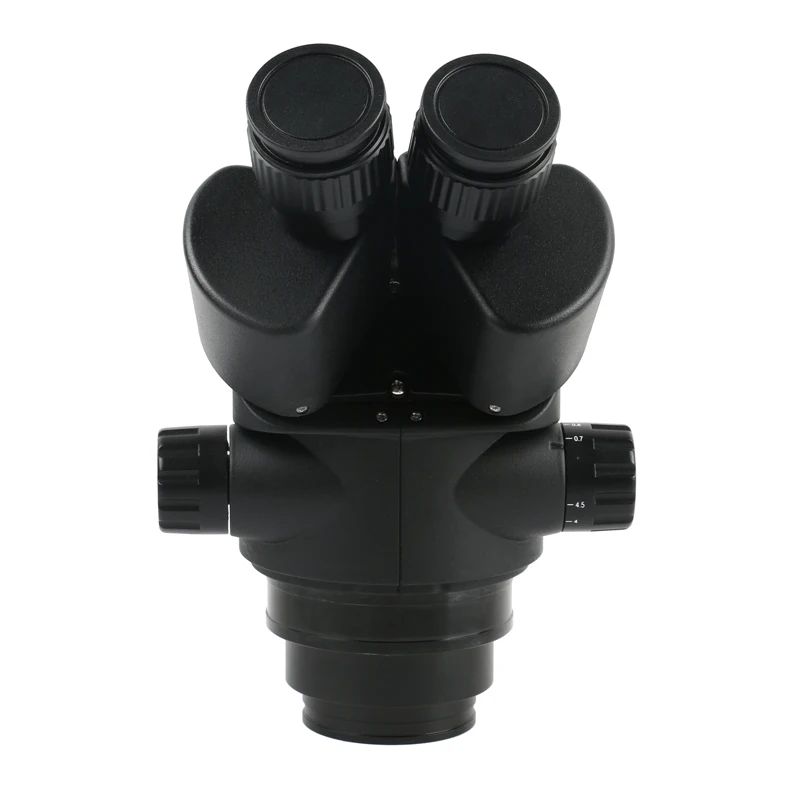

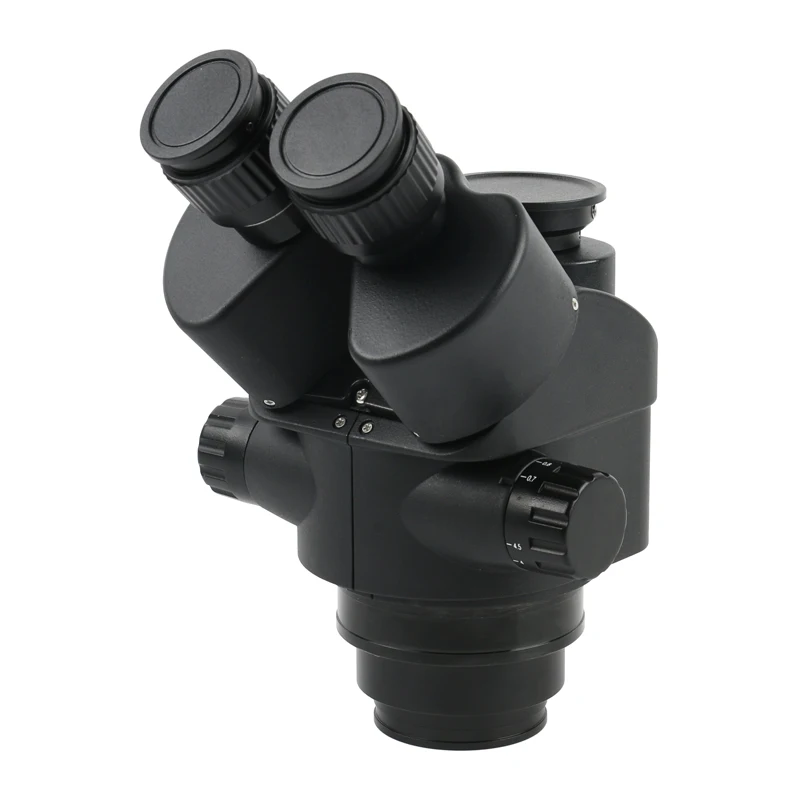

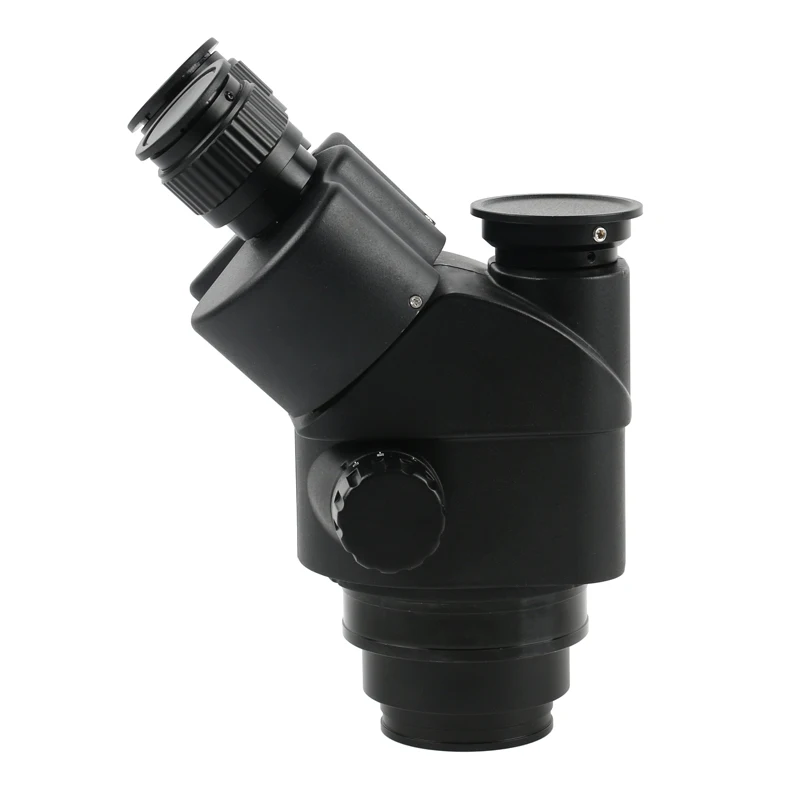

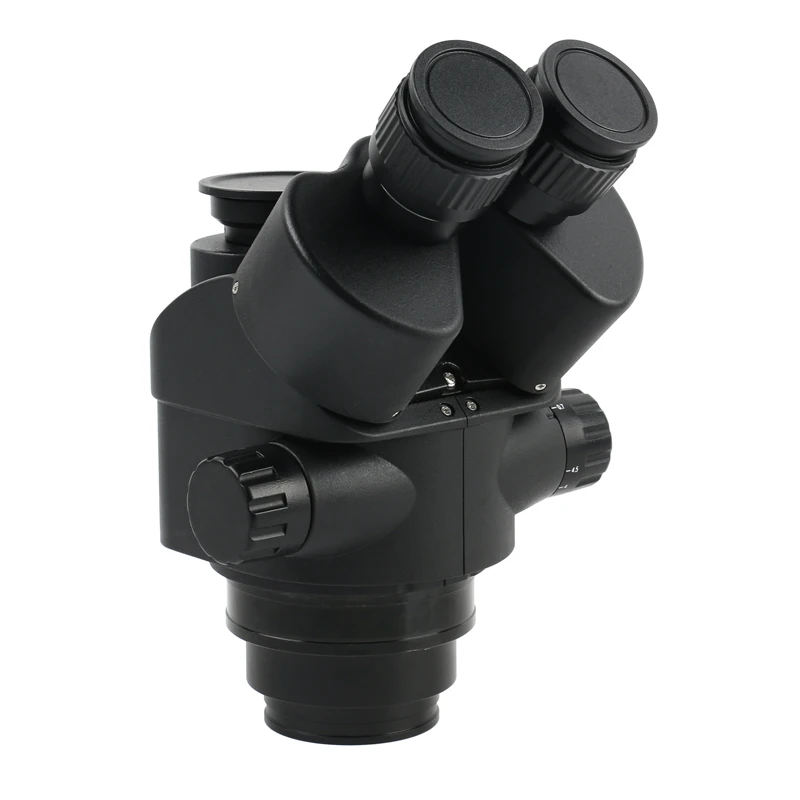

Features: 7X to 45X Continuous Zoom Magnification Power 45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces Trinocular port for adding photo or video capability 30mm Super Widefield WF10X Eyepieces with 20mm Field of View High Resolution with Great Flatness and Contrast Sharp Stereo Erect Images over a Wide Field View Crystal Clear Original True Color Images Large Working Distance Accurate Alignment Ensuring a Fatigue-Free Viewing Full Optical Glass Elements Precise Ground Glass Lens All Metal Mechanical Components Adjustable Interpupillary Distance Manufactured under ISO 9001 Quality Control Standard Specifications: Head: 45-degree inclined 360-degree swiveling trinocular simul-focal Eyepiece: 30mm super widefield high-eyepoint WF10X/20 Objective: 0.7-4.5X Zoom Range: 6.5:1 Trinocular Port: 23mm photo port Interpupillary Distance: 2-1/8" to 3"(54-76mm) Field of View: 1-1/4" (33mm) Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm) Head Mounting Size: 3" (76mm) diameter Accessory Mounting Size: 1-7/8" (48mm female thread) diameter 144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-160mm Feature: High Quality, High Resolution, Clear Images 36.0MP 1/2.33 Inch big size Japan Panasonic CMOS sensor TF Card Video Recorder Photo Model / Video Model Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV. It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, NegativeSupply USB2.0,HDMI HD video,Two output ports Sensor :Panasonic CMOS Optical format:1/2.3 inch pixel size:1.335μm x1.335μm Interface:HDMI(Type A).USB(Type B).TF Card Image resolution:23MegaPixel Video record resolution:2K@30FPS 1080p@60FPS HDMI resoltion:1920*1080p 60FPS Can output with USB at the same time HDMI scale:Support 4:3,16:9,16:10 screen USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS TF card:MAX 64GB AWB:WB color correction/Auto/Manual R.G.B value setting independent Exposure:Auto/Manual.AE value can set Cross lines:8lines.Can set color& width& position Scale mark lines:2lines. Dotted lines:2lines.Can set color& width& position Sharpness Contrast Color gain:Support Mono Negative:Support Mirror:Horizontal vertical mirror Language:English/simplified Chinese Digital Zoom:Support IR remoter:Support Voltage in:DC 12V 55-21mm size Power consumption:MAX 0.15W  12V,0.12A Lens interface:C/CS Net weight:200g Gross weight:400g Camera size:54*58*50mm Packaging size:160*100*80mm Questions Solutions: LCD no video or flicker 1.Check power supply. Check green LED be onlight. Press PowerKey to Up it. 2.Check lens cover. Increase the lighting. LCD have black bar Image warp 1.change resolution of LCD 2.change resolution of camera Have dirty spot 1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser Package Including: 1 x Trinocular Stereo Zoom Head(Working distance is about 10cm) 1 x Pair of Super Widefield 10X20MM Eyepieces 1 x Pair of Eye-Guards 1 x Dust Cover 1 x 144-LED Ring Light 1 x Stand 1 x 76mm Focusing Holder 1 x HDMI USB Video Camera 1 x HDMI Cable 1 x USB Cable 1 x IR Remote control 1 x Power Supply Adapter (EU/AU) 1 x 0.5X C-mount Adapter （Optional） 1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm) 1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm) 1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens) 1 x  Adjustable Metal Arm
