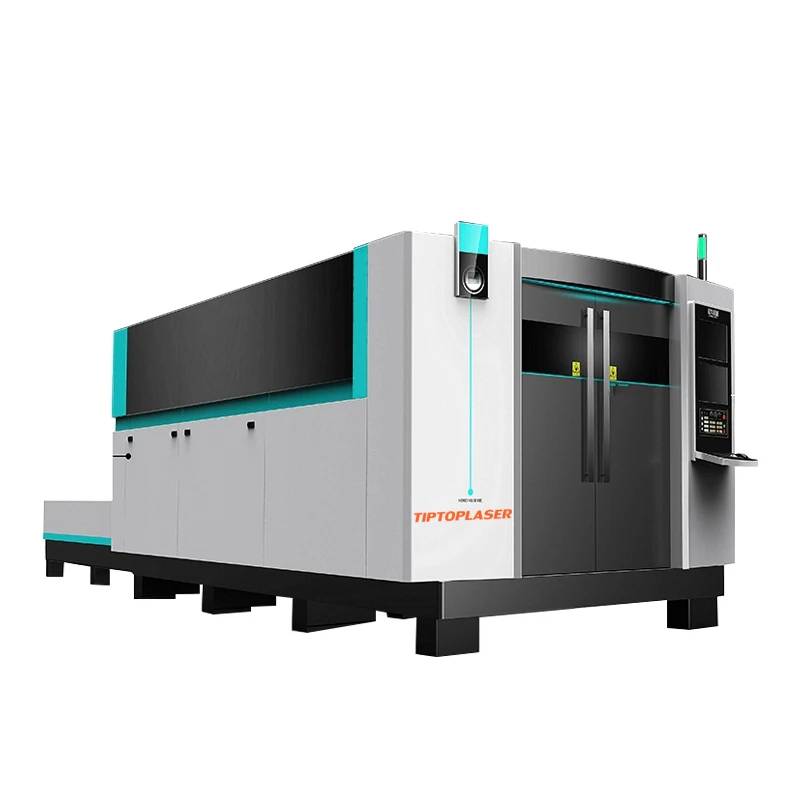

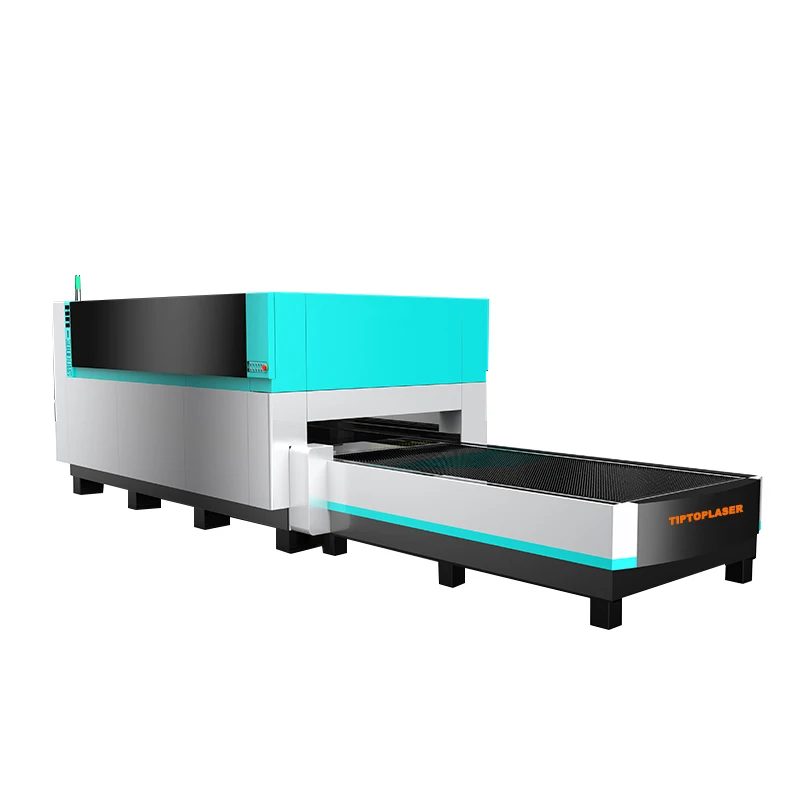

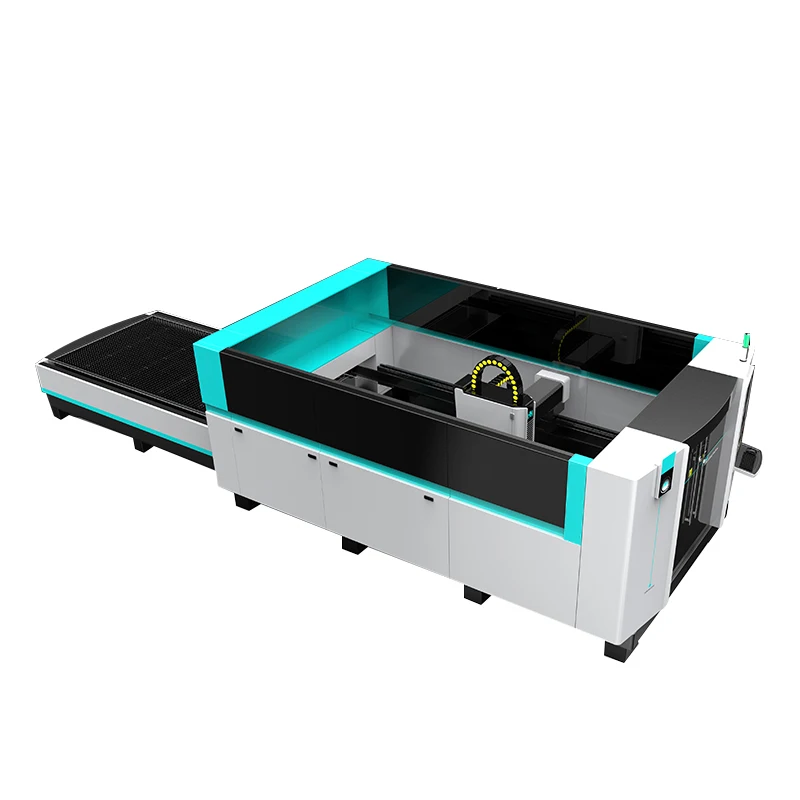

Tiptoplaser fiber laser cutting machine TPF-2040 use the world top brand parts, Raytools fiber laser head with automatic focus and imported Japan Fuji or Japan Shimpo or Yaskawa servo motors and drives, high precision, high speed, large torque, performance is stable and durable, ensure the high-speed operation of the whole machine. Chinese top brand fiber laser source Max, Raycus, IPG high power, high precision.Top brand control system: Cypcut control system, with automatic nesting function.

Model

TPF-1530

TPF-2040

TPF-2060

Working area

1500mm*3000mm

2000mm*4000mm

2000mm*6000mm

Laser Power

1000W/1500W/2000W/3000W/3300W/4000W/

Laser head

Swiss Raytools

Drive motor system

Japan FUJI/YASKAWA Servo motor and driver

Transmission system

X, Y, Z-Axis Taiwan Hiwin 25mm linear guide

Taiwan YYC Rack driving

Cooling system

Water Chiller with Dual temperature and dual control

Maximum Speed

100m/min

Accuracy of Positioning

+-0.02mm

Repeat positioning Accuracy

+-0.03mm

1.Excellent beam quality: The focused spot smaller cut lines more sophisticated, higher productivity, better quality, and processing.
2.High cutting speed: 2 times faster than the same power CO2 laser cutting machine.
3.High stability: Fiber Laser cutter adopts the world's top imported fiber laser source, stable performance, a key component of up to 100, 000 hours life.
4.High electro-optical conversion efficiency: Fiber Laser cutting machine is three times higher than the CO2 laser Electrical and optical conversion efficiency, energy-saving and environmental protection.
5.Low cost: The whole power consumption of only similar CO2 Laser cutting Machine 20-30%.
6. Low maintenance cost: No working gas lasers; optical fiber transmission, without reflecting lenses; can save a lot of maintenance costs.
7.Easy operation and maintenance: Optical transmission, no need to adjust the optical path.
8.Super flexible light guide effect: Small size, compact structure, easy to flexible processing requirements.

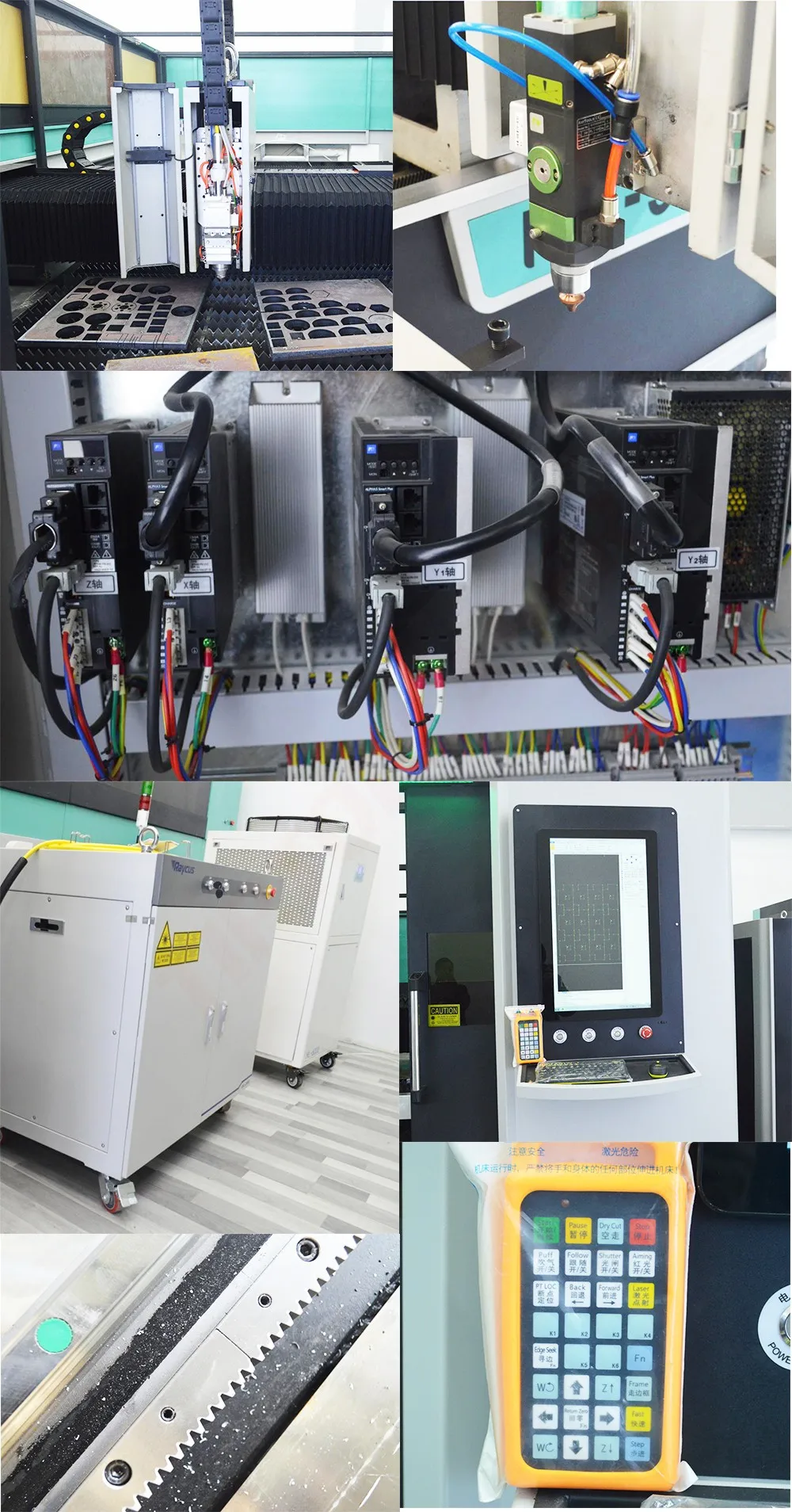

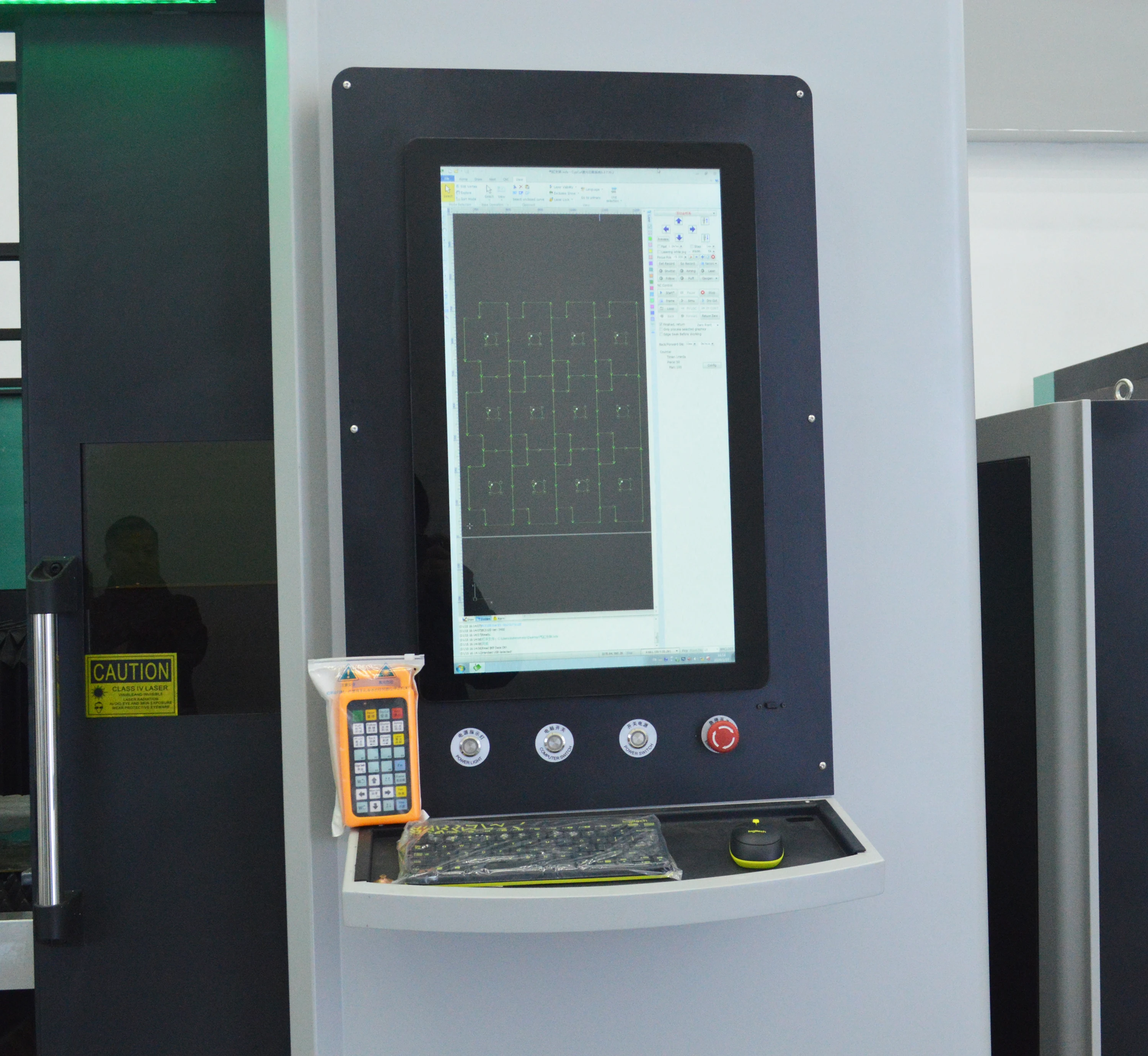

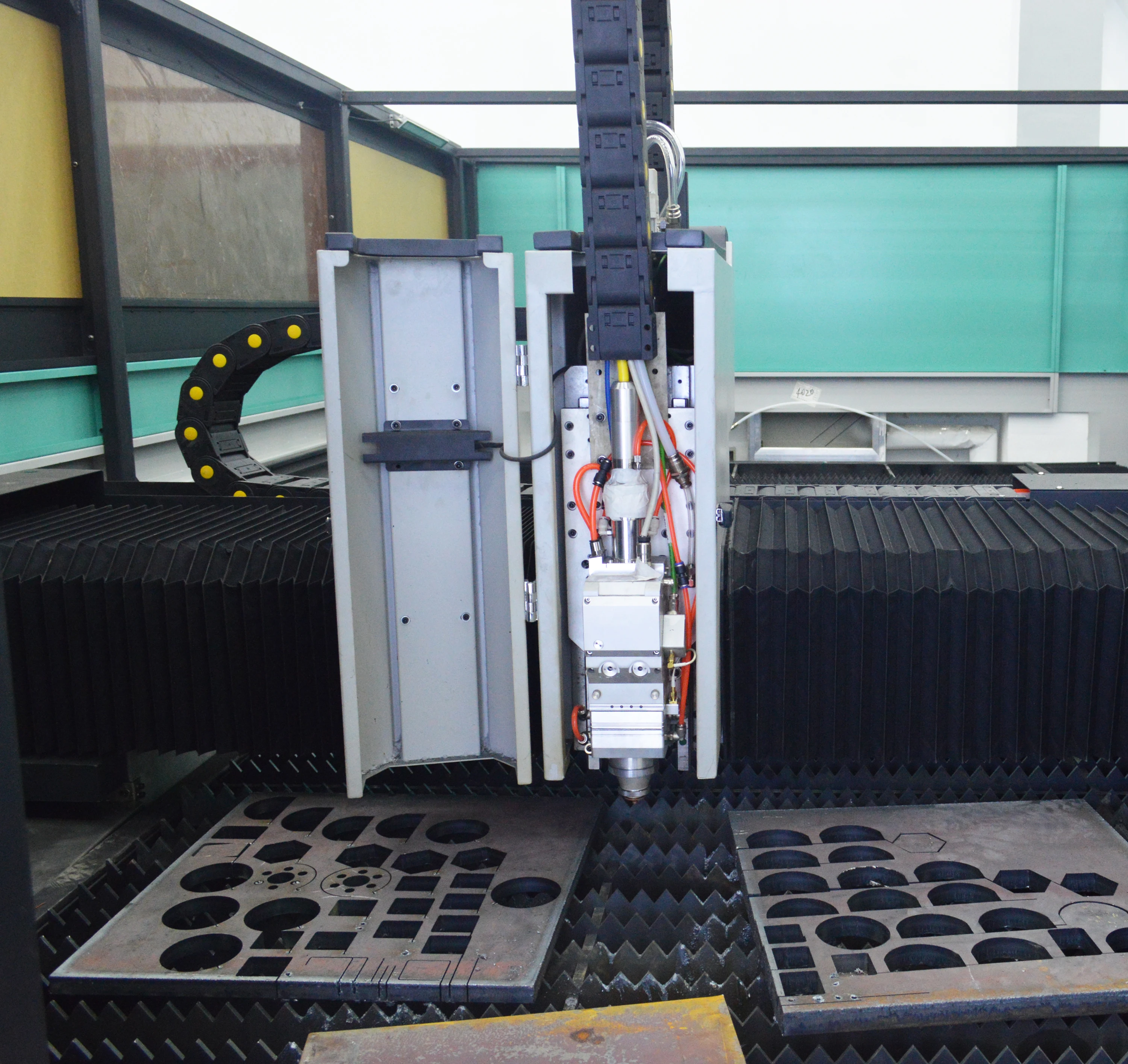

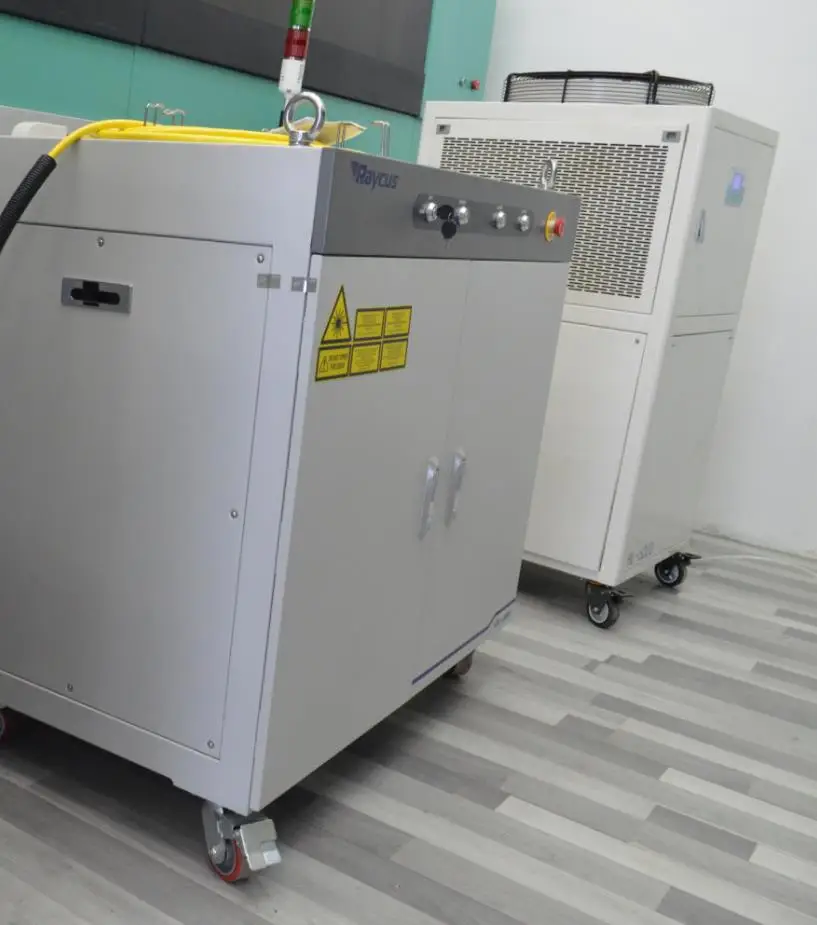

DETAILS PICTURES:

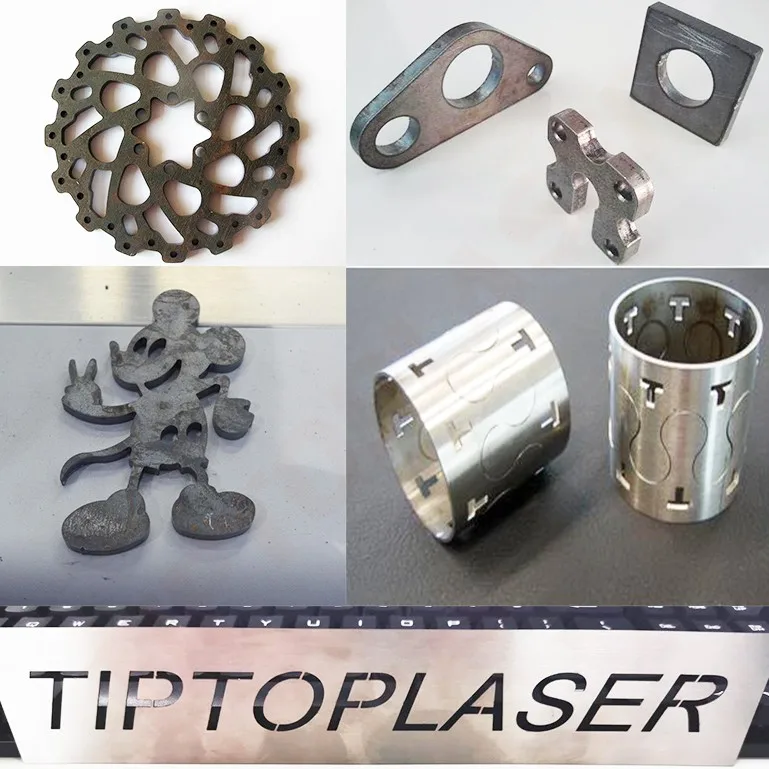

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

1)Packaging:

Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

2)Shipping:

We cooperate with a shipping company whose experience in ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine, and other inland countries.

3)Payment:

We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.

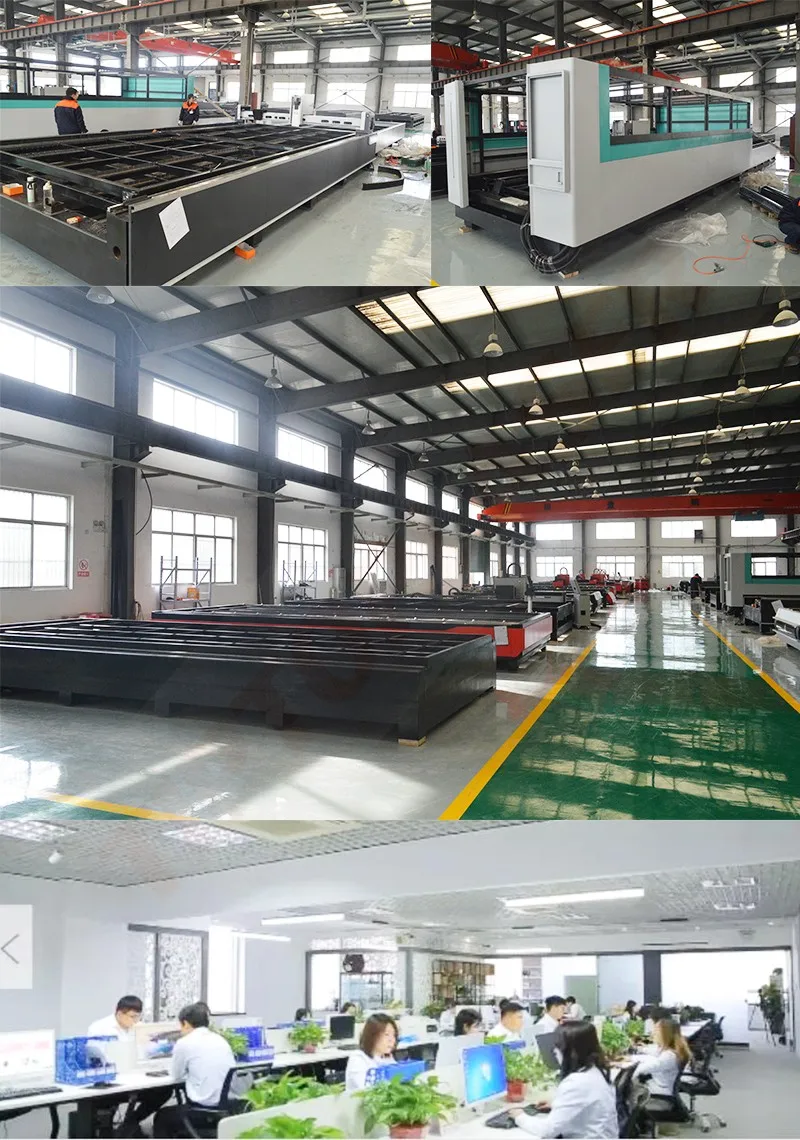

TIPTOPLASER is an integrated modern enterprise with R&D, Producing, Sales and After-Sales Service for various industrial laser equipment involving fiber laser marking machine, fiber laser cutting machine, CO2 laser marking machine, CO2 laser welding machine, laser engraving machine, laser welding machine, laser cleaning machine, pneumatic marking machine, etc. The products are widely used in metal plate, IT electronic product, hardware, model making, garment, leather, shoe-making, advertisement, Printing and Packaging, toys, Auto & motorcycle and accessories, precision instrument, medical equipment, building materials, instruments and apparatus, food and beverage packing, jewelry, handicrafts, etc.

Q: How to operate the machine?

A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

Q: How can I get the sample to check your quality?

A: If you want to mark the sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

Q: Does the machine can be customized according to my requirements?

A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.

Q: Can you arrange the shipment for me?

A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
