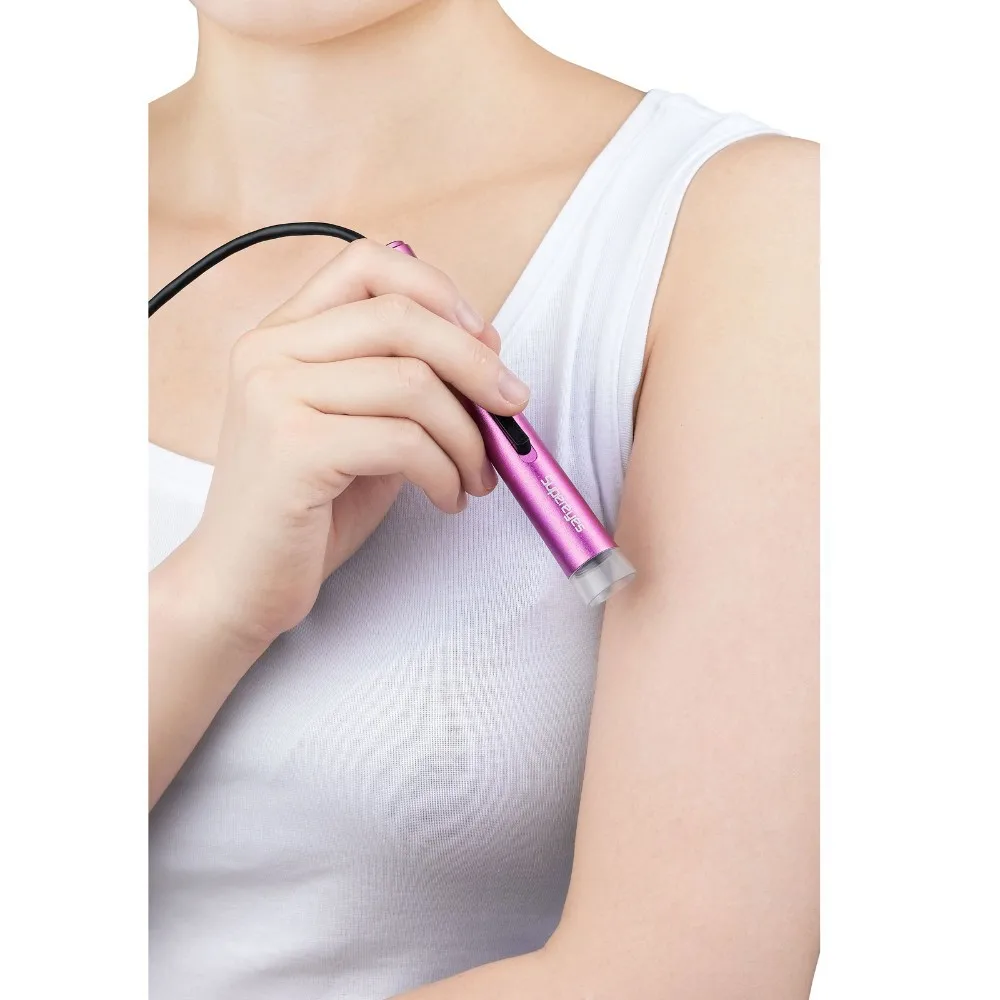

B010-S 300X 2MP Digital USB Microscope Video Camera Handheld Microscope Magnifier with LED for Skin Check

Unique Features

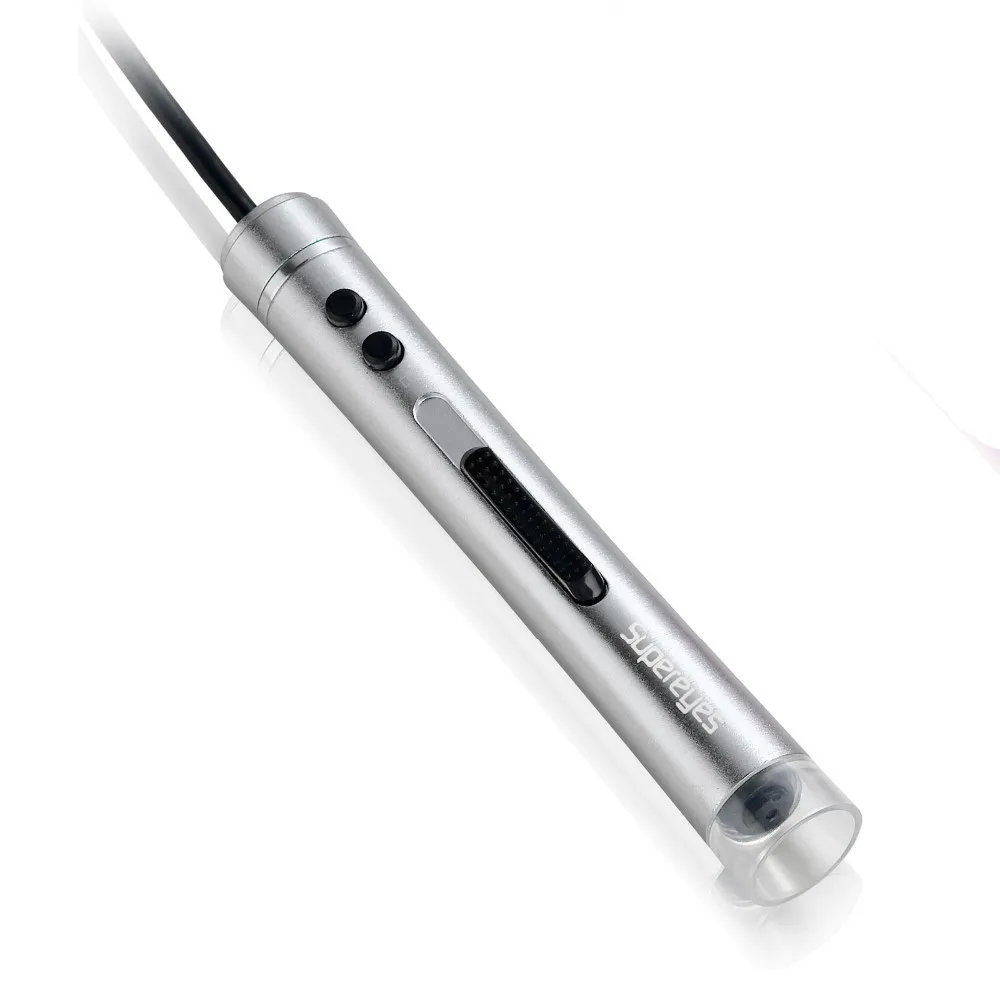

• Slim microscope body compared with traditional microscopes or other brand or non-branded USB microscopes.

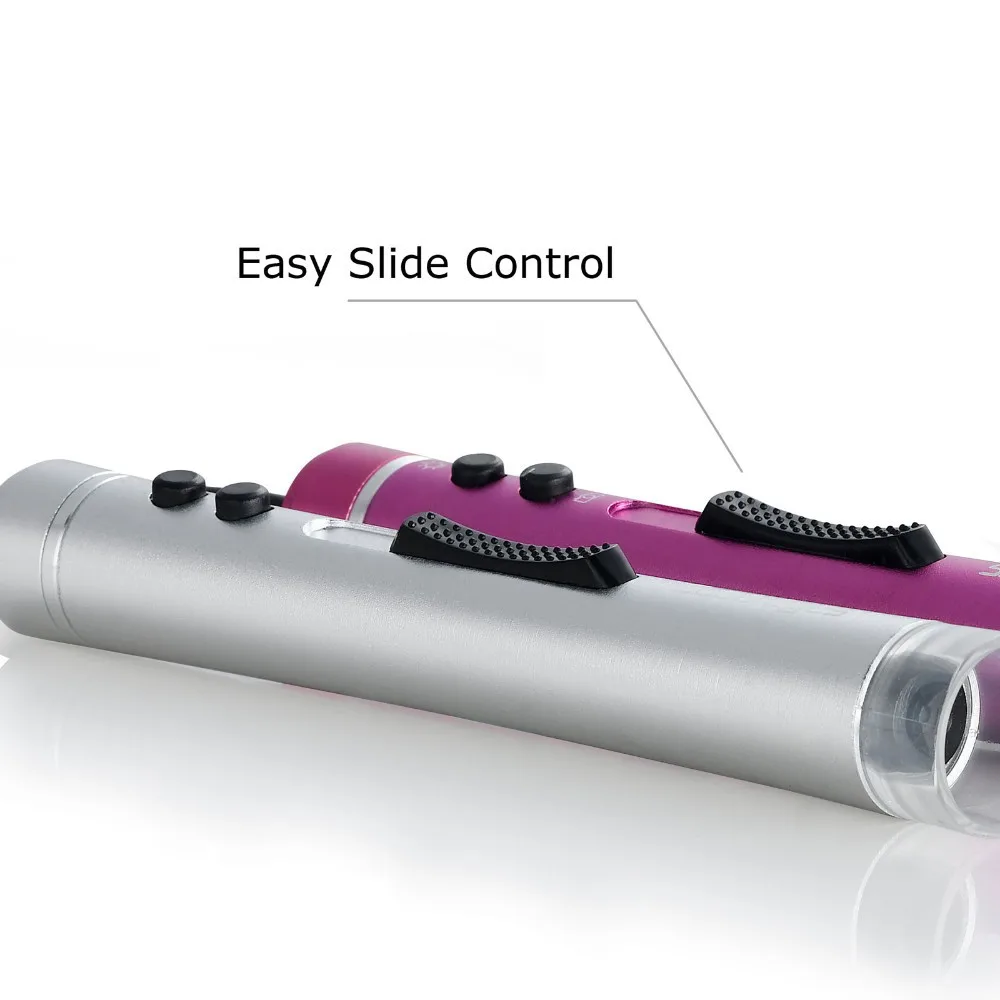

• Convenience wire controlled LED light and snapshot.
• Eco-friendly alloy material with Rhos certification, provides strong and light microscope body.
• Supereyes Software has exclusive measurement function; it is fully compatible with Win 8 32/64 bit

Applications:

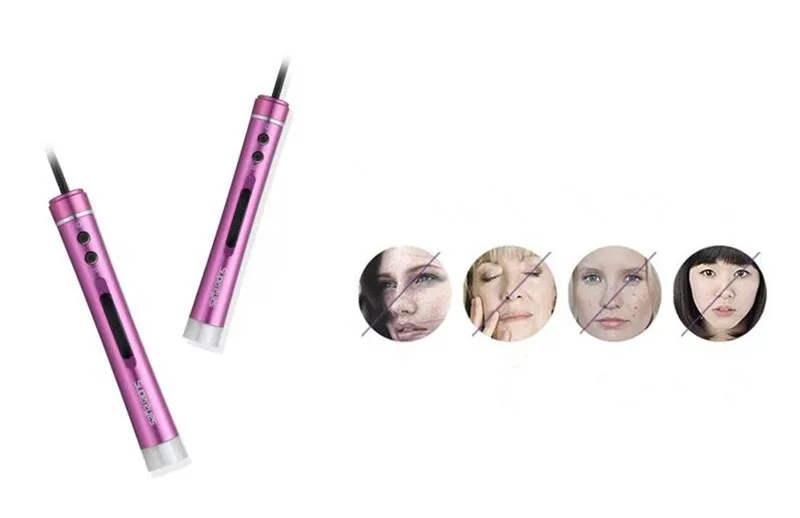

• Health: hair, skin
• Anti-counterfeit: false label, tiny print, forged money, security identification
• Quality control: material, design, repair, metal, surface, printing, PCB
• Education: biological sample, living creature observation, auxiliary reading
• Forensic: finger print, trace elements
• And more.....

Specifications

• Model: Supereyes B010, brand new EASY CONTROL design, perfect for skin and collection check.
• Magnification: 1 ~ 300 times (continuous zoom capability)
• Sensor: 2.0MP (true hardware)
• Operating System: Windows 8/7/Vista/XP/2000, Mac OS × 10.5 or above, Linux
• Object distance:  5 mm ~ infinity
• Focus type: manual focus
• Interface USB 2.0
• Max Size: Ø18 mm × 125 mm

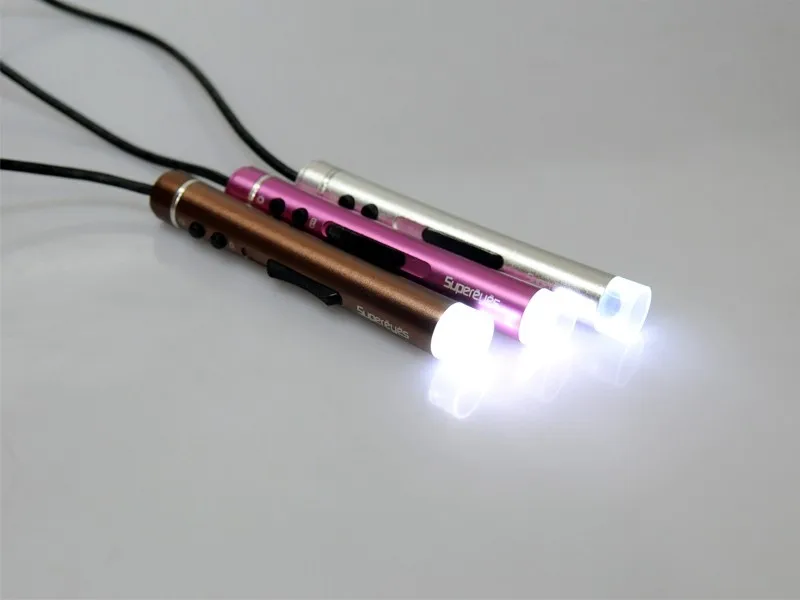

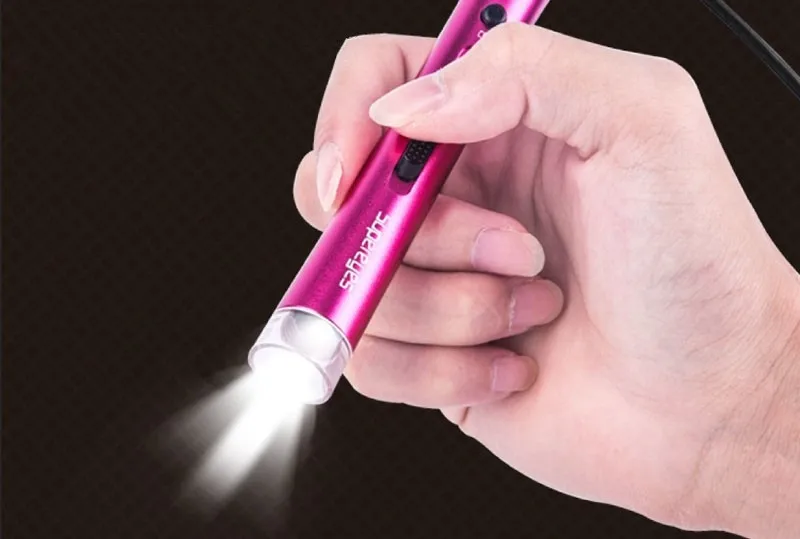

• Light Sources: LED illumination (adjustable by control wheel)
• OSD language: English, Chinese, German, Japanese
• Software: Supereyes Software with measurement and calibration function
• For Mac, please use Photo Booth, FaceTime or QuickTime
• For Linux, please use web camera software to open it
• Snapshot by software/hardware
• Still image capture resolution: max 1600 X 1200
• Photo Format: JPEG
• Video: High compression, 11 hours long
• Video Capture Resolution: max 1600 X 1200
• Video Format: WMV
• Display Speed: Maximum 30 f/s

Package and Accessory:

• Package Size: 17.5 cm(L) × 12 cm(W) × 4 cm(H)
• Gross weight: 200 g
• Net weight: 80 g

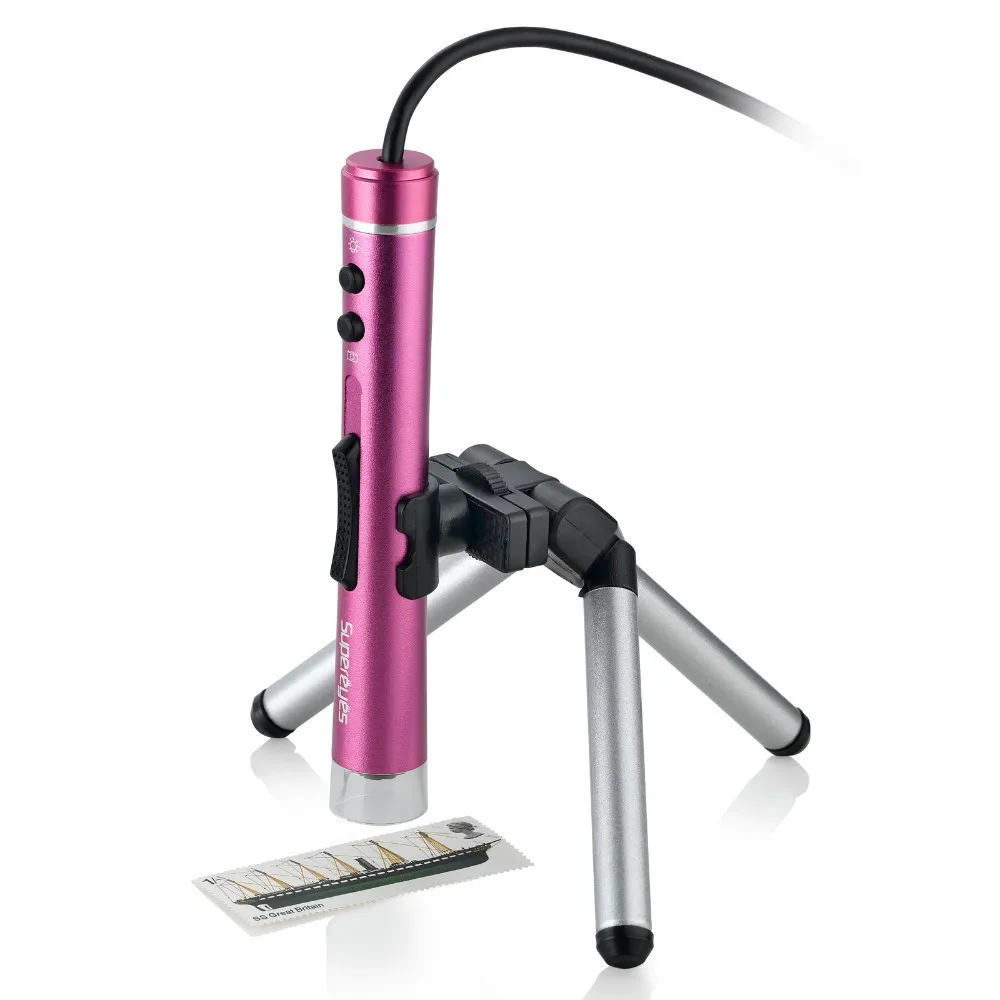

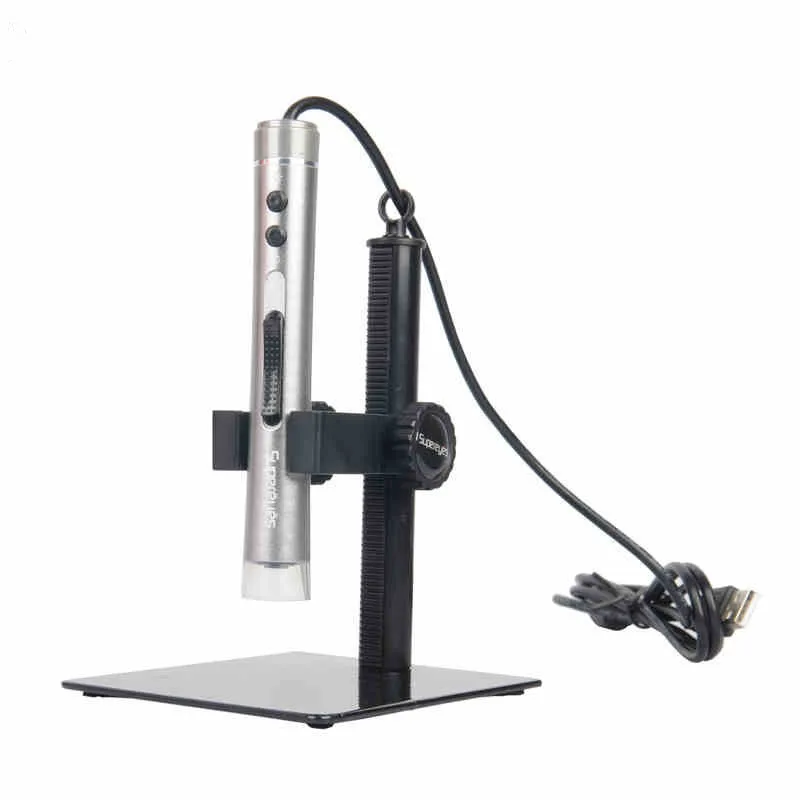

• Including: 1 X Microscope, 1 X User Manual, 1 X CD, 1 X Tripod stand

How to use, a quick guide from Supereyes

• For Mac and Linux, please plug the device into your computer, and then use corresponding software to open it.
• For Windows XP SP 2 and above, including Win 8 32/64 bit, no driver needed, please directly install the software on the mini CD. If you have any problems regarding the mini CD, please download the software on www.supereyes.cc, or contact us.
  a. After software installation, plug the device into PC, open software, select "Preview", then you should be able to see the device working. For more detail information about measurement, please see the User Manual.
  b. To achieve maximum magnification, please put the microscope on top of the object, rotate the tail of the microscope to change focus. Turn on the LED lights if needed. The zoom capability would decrease as the distance between microscope and objects increase.
  c. You might find that the display speed of 5 MP is slow, which depends on your computer's specifications and USB 2.0's transfer rates. We recommend you to use 3 MP for previewing and 5 MP for taking photo, or using the latest Supereyes software v3.54.

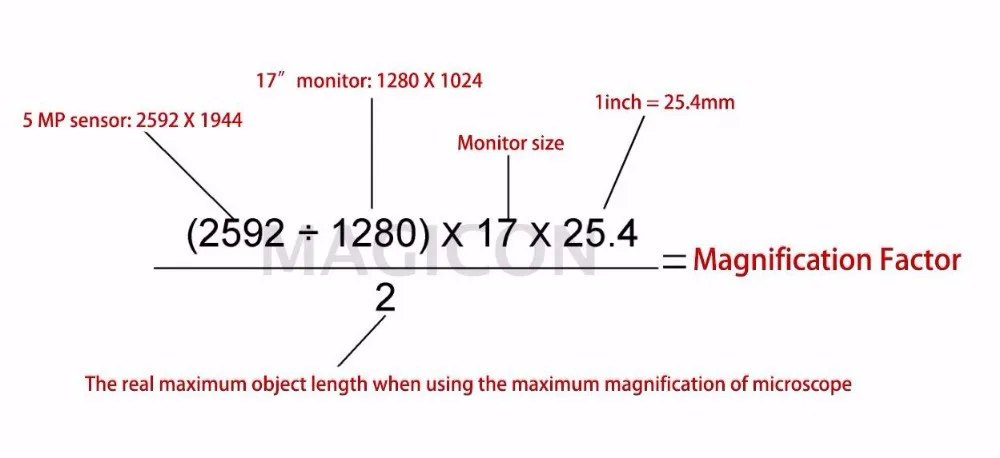

How to calculate a digital microscope's magnification:

• A005+/B008 has 5 MP sensor. If you want to calculate model B003+/A005, please change 5 MP to 3 MP.
• 17" is the most popular monitor in the market. All Supereyes products' specifications are calculated based on 17" monitor.
• 2 is 2 mm. Usually, if you use the maximum power/magnification of Supereyes products, the maximum real length that could fully occupied the monitor is 2 mm.
• If a microscope has a 0.3 MP sensor, it is unlikely that it has real 500X power. So don't be cheated by some advertisement!

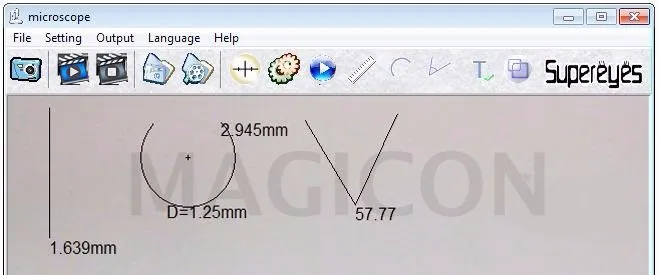

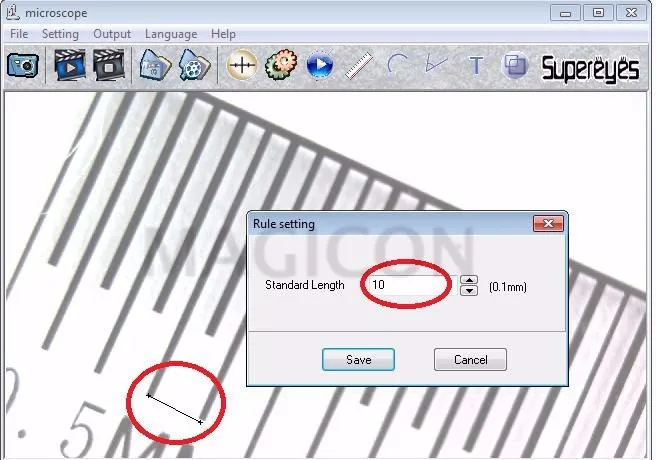

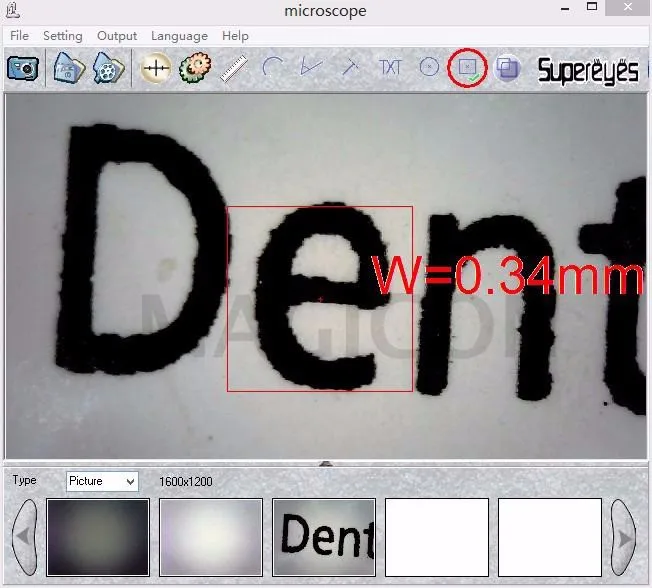

Supereyes Software

How to choose your microscope?

1. Which RESOLUTION fits your purposes best?
   There are some sample photos taken by Supereyes microscope on our product list, which would help you to make decision. If you need more photos, please send message to us.
2. AUTO FOCUS or MANUAL FOCUS?
   Manual focus microscopes are cheaper and smaller.
   Auto focus microscopes save your time. There are three different types of auto-focus Supereyes microscope:
   A005/A005+. Firstly use manual focus to find the approximately focal point, and then the fine auto-focus would work for you to find the accurate focal point. The fine auto-focus's working range is about 0 ~ 10mm. If the distance change too much, manual focus is needed. The working distance is 0 ~ ? mm.
   A004/A004+, touch-point auto-focus, the most fast auto-focus. As long as the object touching or very close to the pointed metal head of A004/A004, the microscope would find the accurate focal point. The working distance is 0 ~ 3mm. To change zoom, please rotate the tail of the device.
   A006, ultimate auto-focus, with maximum 50X magnification. Totally auto focus, no manual focus needed. The zoom power depends on the distance between microscope and object: move close for zoom in, move away for zoom out.
3. In some cases, lens diameter is more important. Please choose the microscope based on your own unique requirement. The tips listed above are only for references.
