1、The diesel generator set has a low fuel consumption of 50 kilowatts, strong overload capacity, and good transient speed regulation.

2、Turbocharging: Improve fuel economy, reduce exhaust emissions, and increase engine power.

3、Automatic voltage regulation: To prevent the generator voltage from being too high or too low to cause malfunction of the electrical equipment and damage to the battery.

4、The unit has strong durability: equipped with a radiator water tank suitable for the environment of 40 ℃ -50 ℃, a belt-driven cooling fan, and a fan safety shield. Safe and stable operation.

5、Long service life and guaranteed maintenance: Due to product quality problems, free maintenance or replacement parts are provided,and paid for life.

  Genearal

  Unit model:

  HQ50GF

  Steady state voltage adjustment rate (%):

  ≤± 1

  Output power:

  50KW

  Voltage fluctuation rate (%):

  ≤ ± 0.5

  Power factor:

  COSΦ = 0.8 (lagging)

  Transient voltage adjustment rate (%):

  ＋20 ～－15

  Output voltage:

  400V / 230V

  Voltage stabilization time (s):

  ≤1

  Output current:

  90A

  Steady state frequency adjustment rate (%):

  ≤ ± 1

  Rated frequency:

  50Hz

  Frequency fluctuation rate (%):

  ≤ ± 0.5

  Rated speed:

  1500rpm

  Transient frequency adjustment rate (%):

  + 10 ~ -7

  Fuel grade:

  (standard) 0 # light diesel (normal temperature)

  Frequency stabilization time (S):

  ≤3

  Dimensions:

  1800×750×1300（L×W×H mm）

  Fuel consumption (100% load):

  224g/kW·h

  Start mode:

  800kg

  Acoustic noise (LP7m):

  95dB（A）

  Technical parameters of diesel engine

  Brand/origin：

  Ricardo engine

  Cooling method:

  Closed water-cooling

  Model:

  ZH4100D

  Oil supply method:

  direct injection

  Number of cylinders / Dare to mention structure:

  4 / L Type

  Speed regulation method:

  Mechanical

  Bore stroke:

  105×125 mm

  Intake method:

  Natural inhalation

  Compression ratio:

  19：1

  Overload capacity:

  110%

  Weight：

  DC 12V Electric start

  Speed:

  1500rpm

  Technical parameters of generator

  Brand：

  Huaquan Brushless Generator

  Protection level：

  IP22

  Model：

  HQF-50

  Wiring mode：

  Three-phase four-wire, Y-connection

  Rated power:

  50kW

  Adjustment method:

  AVR (Automatic Voltage Regulator)

  Rated voltage:

  400V / 230V

  Output frequency:

  50Hz

  Insulation class:

  H class

  Output factor:

  COSΦ = 0.8 (lag)

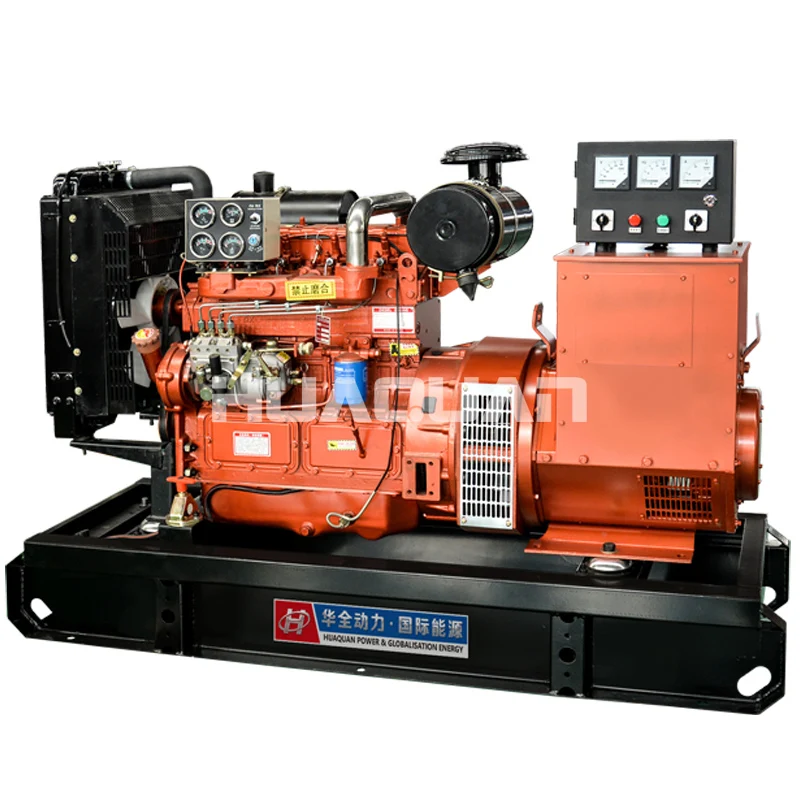

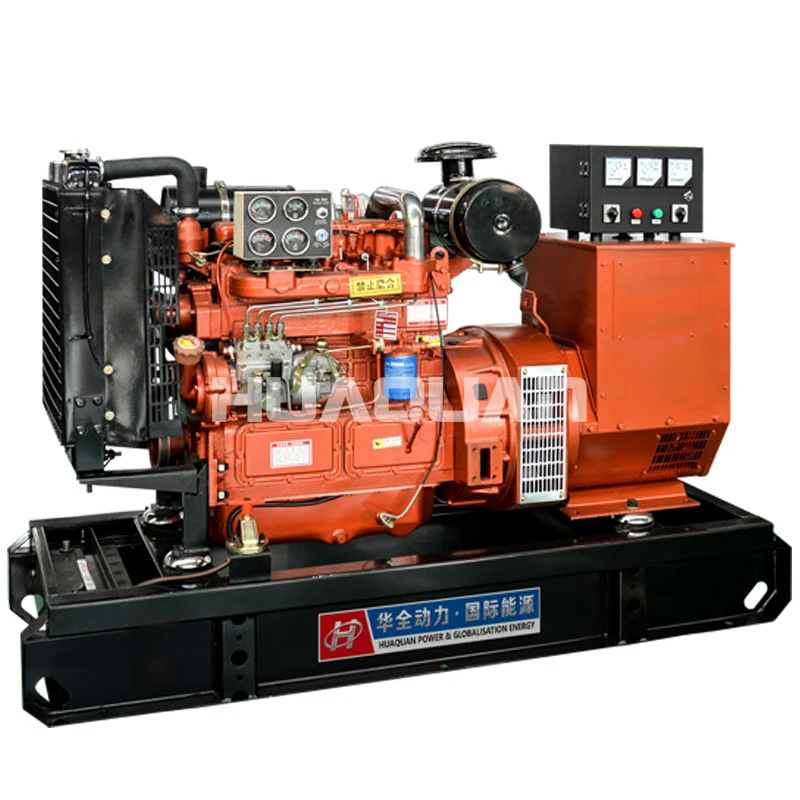

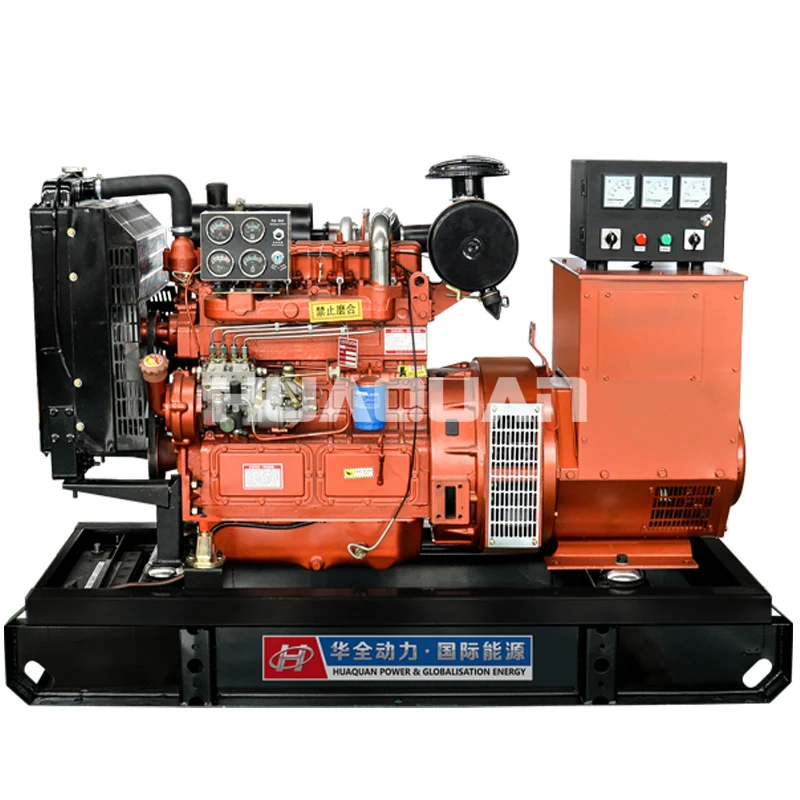

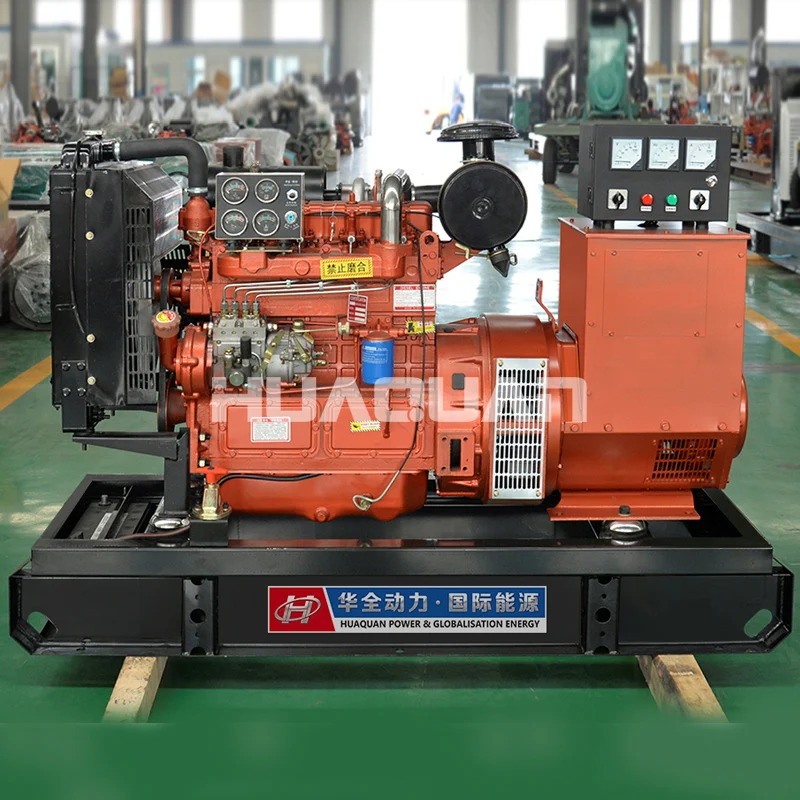

  Genset standard features

  Ø Direct injection internal combustion engine(Diesel)；

  Ø AC synchronous generator（Single Bearing）；

  Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

  Ø Generation output air switch、Standard control panel；

  Ø Steel common base with shock absorber；

  Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

  Ø starter battery and connecting cables；

  Ø Industrial 9dB muffler and accessories；

  Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

  Optional accessories（Extra charged）

  Ø Engine oil、diesel、water jacket、Anti-condensation heater

  Ø Battery floating charger

  Ø Self-protection unit/self-starting control panel

  Ø Tree-remote control panel

  Ø ATS AUTO-loaded transferring screen

  Ø Daily fuel tank、Integral fuel tank

  Ø Waterproof type(Cabinet)

  Ø Mobile trailer(Drip proof)

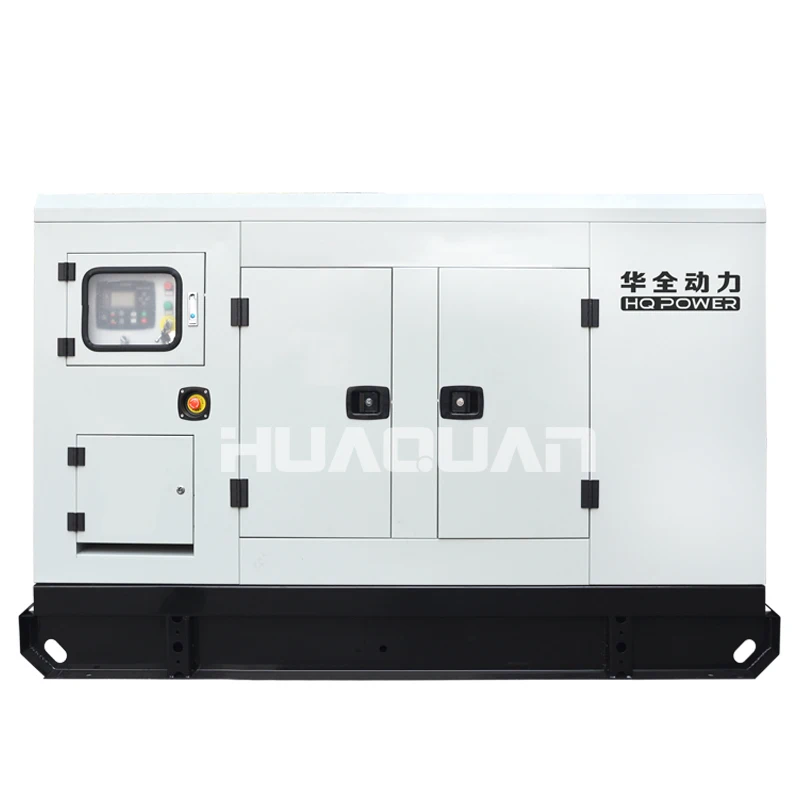

  Ø Mobile trailer(Silent type)
