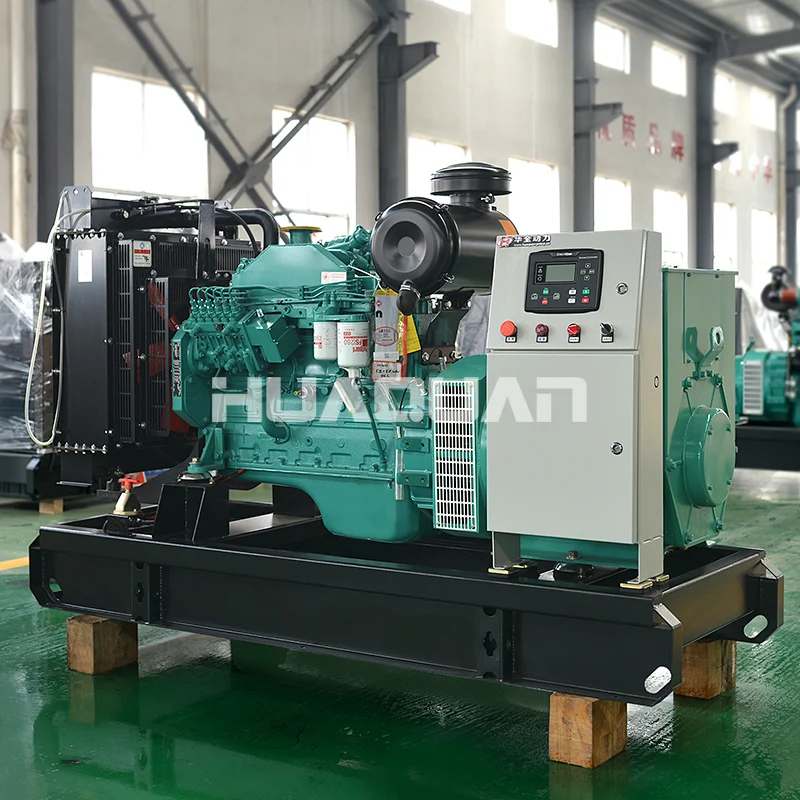

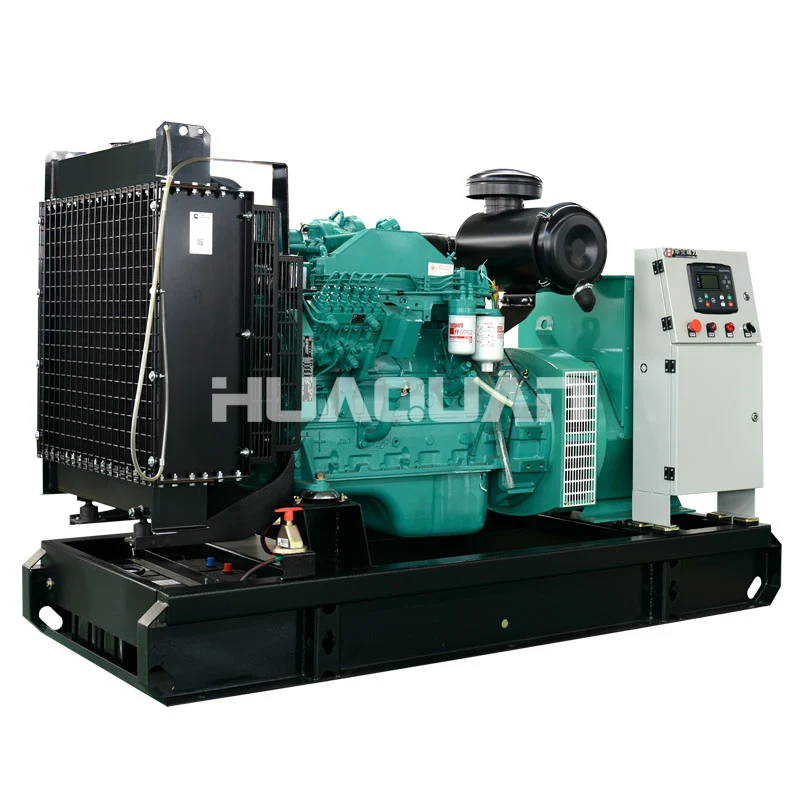

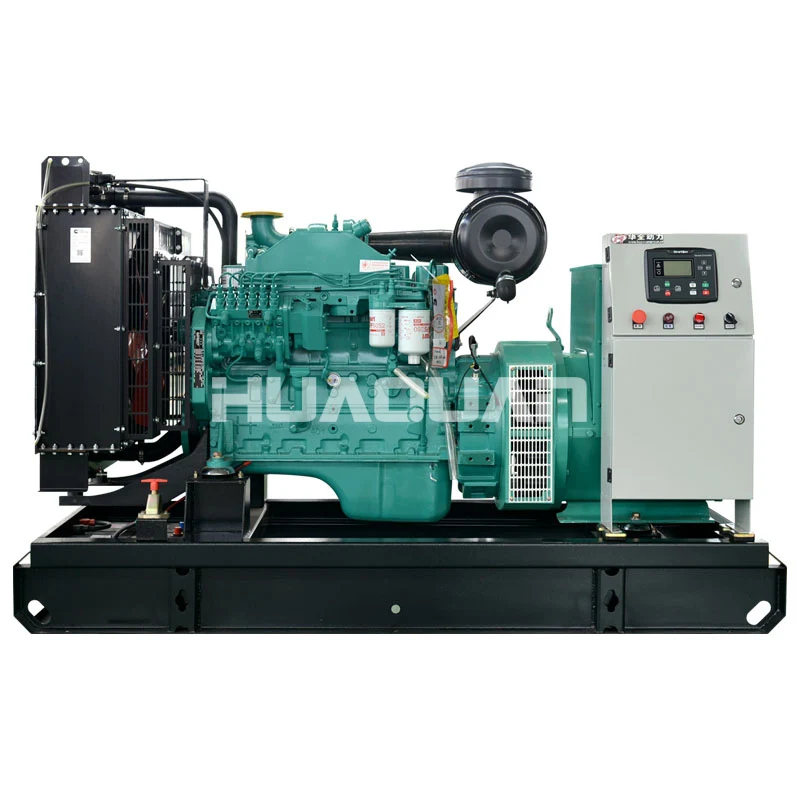

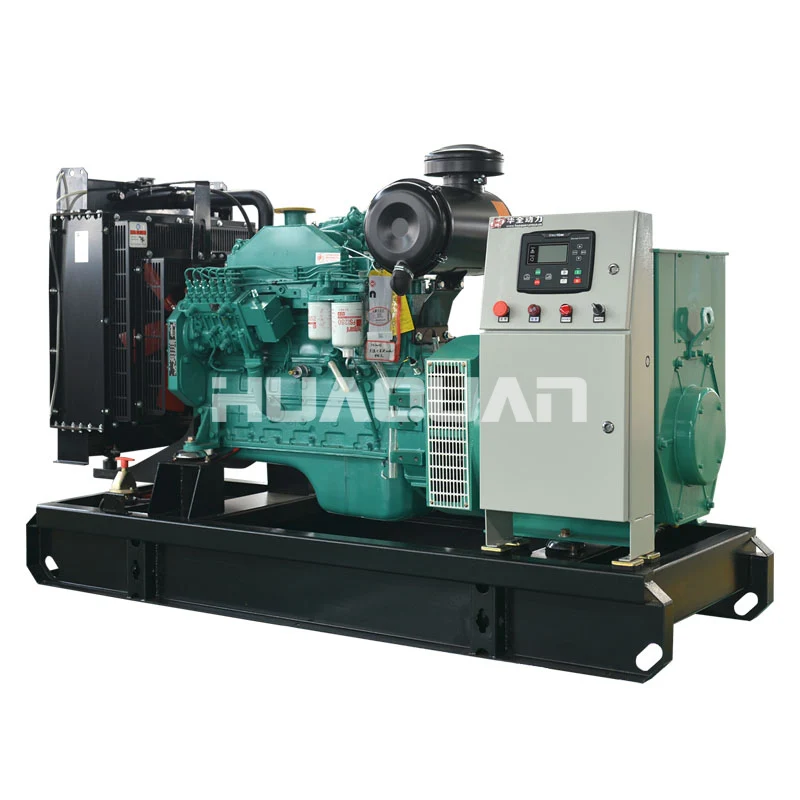

1、Huaquan diesel generator set is 100 kilowatts, and its external dimensions: 2250×920×1600 (L×W×H mm). Unit weight: 1250kg. Low noise and easy placement.

2、Using DC24V electric start and electronic speed regulation, the unit has good transient speed regulation performance and strong loading capacity.

3、The AC synchronous generator is matched with the direct injection internal combustion engine to ensure the safe and stable operation of the unit and protect your production and life.

4、The unit has strong adaptability. It is equipped with a radiator water tank suitable for the environment of 40℃-50℃, a belt-driven cooling fan, a fan safety shield, etc. to ensure the safe operation of the unit.

5、The steel base of the unit is shared to improve the versatility of the parts and expand the performance of the unit.

Genearal

Unit model:

HQ100GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

100KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

＋20 ～－15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

180A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

2250×930×1600（L×W×H mm）

Fuel consumption (100% load):

224g/kW·h

Start mode:

1250kg

Acoustic noise (LP7m):

95dB（A）

Technical parameters of diesel engine

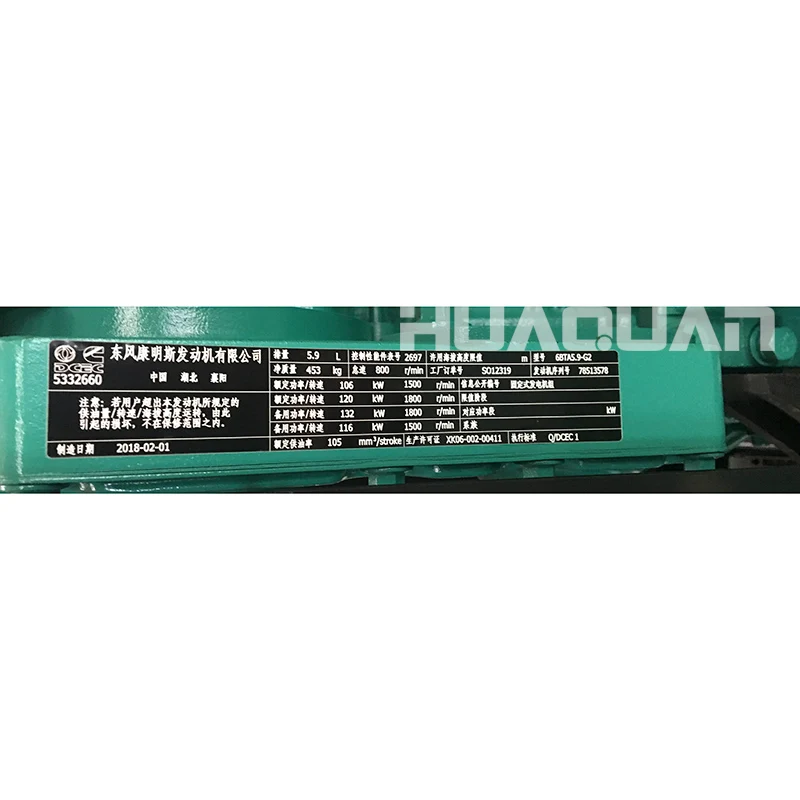

Brand/origin：

DCEC engine

Cooling method:

Closed water-cooling

Model:

6BTA5.9-G2

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

6 / L Type

Speed regulation method:

Electric

Bore stroke:

102×120 mm

Intake method:

Turbo

Compression ratio:

17.5：1

Overload capacity:

110%

Weight：

DC 24V Electric start

Speed:

1500rpm

Technical parameters of generator

Brand：

Huaquan Brushless Generator

Protection level：

IP22

Model：

HQF-100

Wiring mode：

Three-phase four-wire, Y-connection

Rated power:

100kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

Genset standard features

Ø Direct injection internal combustion engine(Diesel)；

Ø AC synchronous generator（Single Bearing）；

Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

Ø Generation output air switch、Standard control panel；

Ø Steel common base with shock absorber；

Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

Ø starter battery and connecting cables；

Ø Industrial 9dB muffler and accessories；

Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

Ø Engine oil、diesel、water jacket、Anti-condensation heater

Ø Battery floating charger

Ø Self-protection unit/self-starting control panel

Ø Tree-remote control panel

Ø ATS AUTO-loaded transferring screen

Ø Daily fuel tank、Integral fuel tank

Ø Waterproof type(Cabinet)

Ø Mobile trailer(Drip proof)

Ø Mobile trailer(Silent type)
