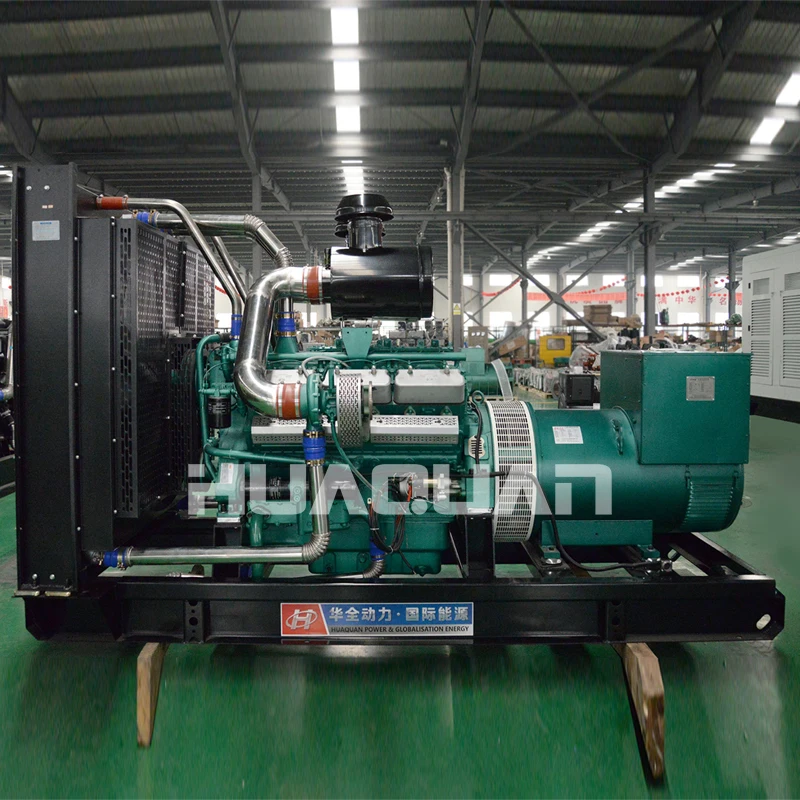

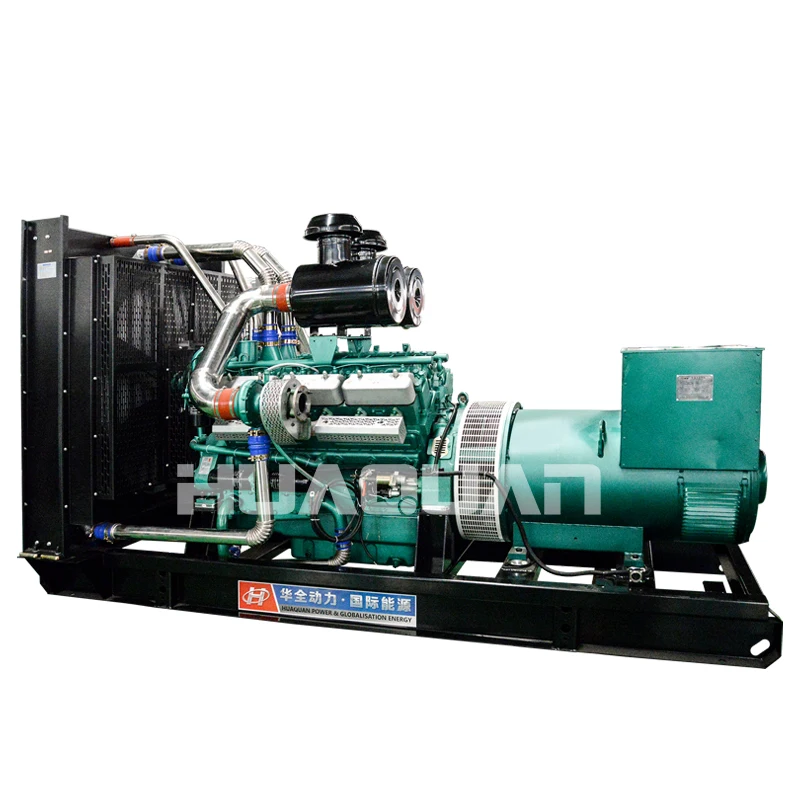

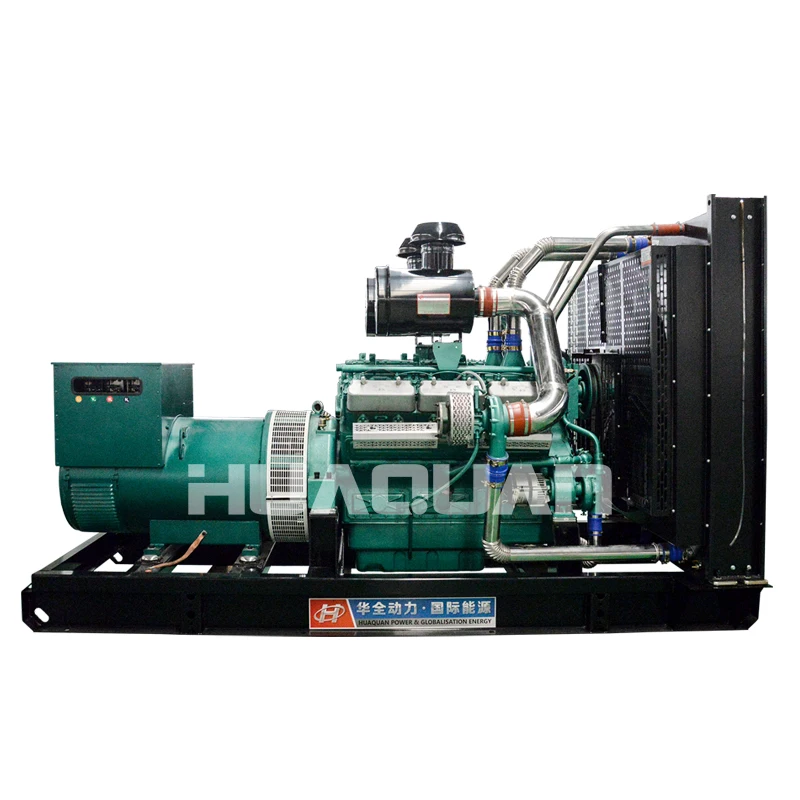

high performance 6 pole generating alternator 600kw diesel generator 750kva | Обустройство дома

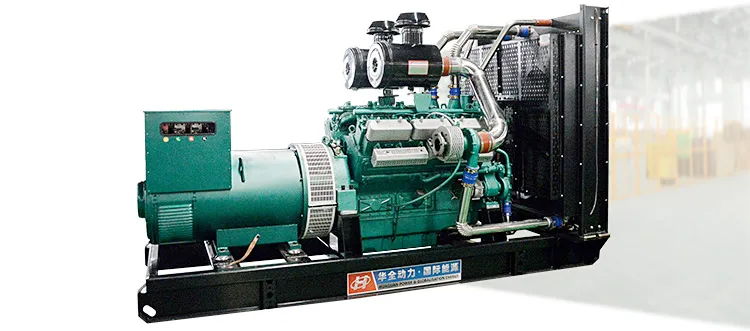

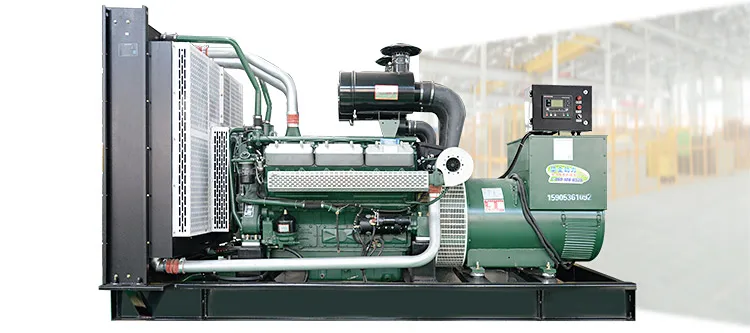

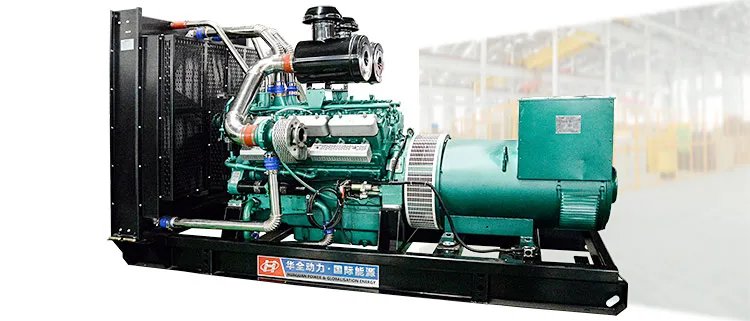

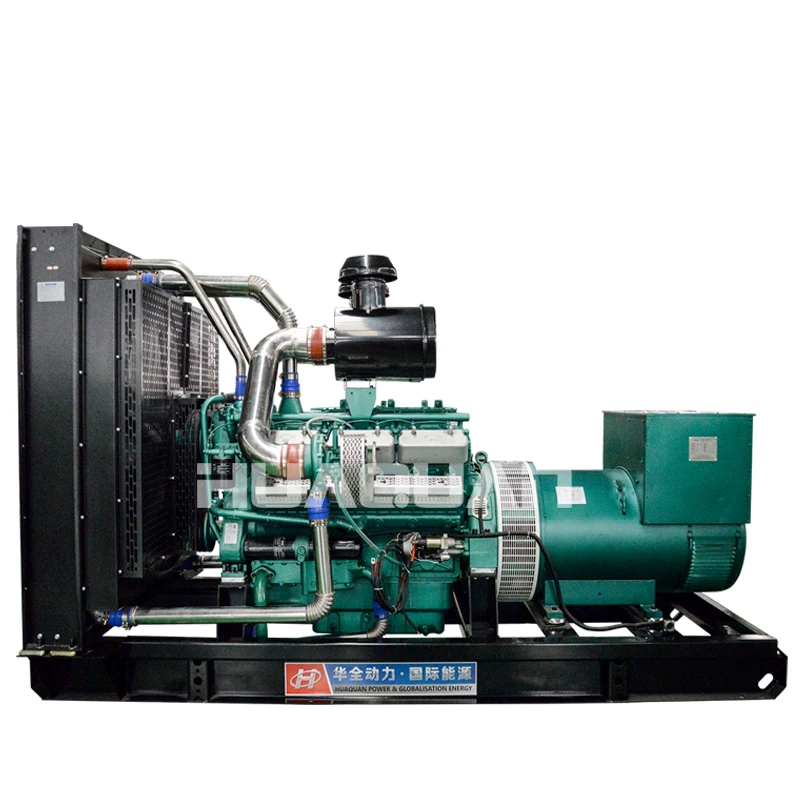

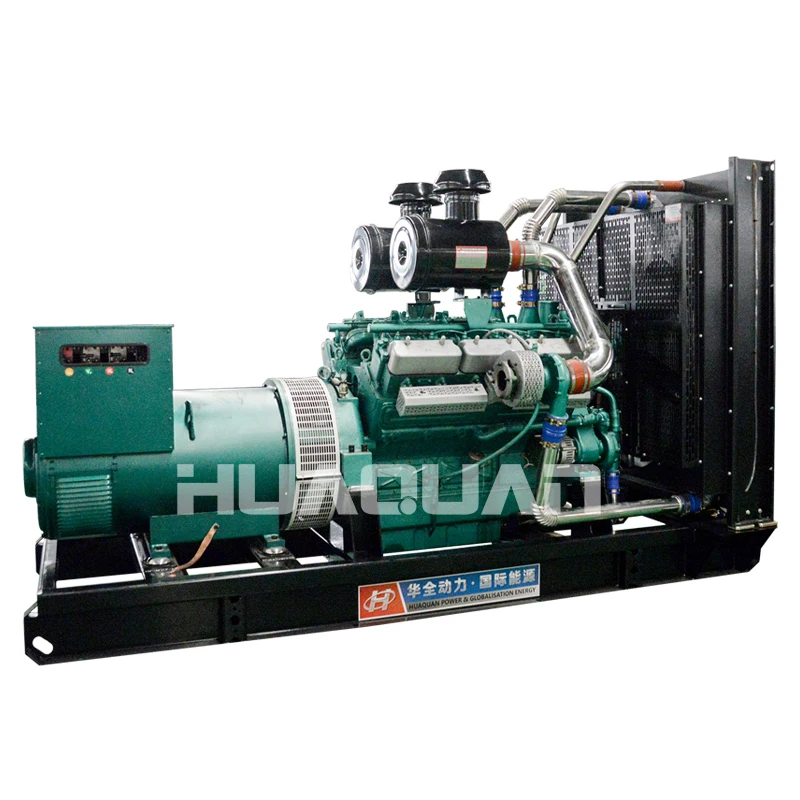

1. Huaquan 600 kW diesel generator set has the characteristics of high efficiency, low fuel consumption, good transient speed regulation, safe and stable operation, low noise, long service life, convenient installation and maintenance, etc.

2. 12-cylinder combustion, turbocharging, four-stroke, full combustion and strong power, to ensure your production and life.

3. With four protection control systems according to needs, namely current, overload, low oil pressure and high water temperature,it can guarantee the normal operation of the unit, and it will automatically alarm and shut down once a failure occurs.

4. 12 months after the acceptance of the unit's commissioning test or 1000 hours of cumulative operation, due to product quality problems, free maintenance or replacement will be provided for life-long paid service!.

Genearal

Unit model:

HQ600GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

600KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

＋20 ～－15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

1080A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

3680×1550×1900（L×W×H mm）

Fuel consumption (100% load):

207g/kW·h

Start mode:

4650kg

Acoustic noise (LP7m):

100dB（A）

Technical parameters of diesel engine

Brand/origin：

Shanghai kaipu

Cooling method:

Closed water-cooling

Model:

KPV660

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

12/ V Type

Speed regulation method:

Electric

Bore stroke:

135×155 mm

Intake method:

Turbo

Compression ratio:

16.4：1

Overload capacity:

110%

Weight：

DC 24V Electric start

Speed:

1500rpm

Technical parameters of generator

Brand：

Huaquan Brushless Generator

Protection level：

IP22

Model：

HQF-600

Wiring mode：

Three-phase four-wire, Y-connection

Rated power:

600kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

Genset standard features

Ø Direct injection internal combustion engine(Diesel)；

Ø AC synchronous generator（Single Bearing）；

Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

Ø Generation output air switch、Standard control panel；

Ø Steel common base with shock absorber；

Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

Ø starter battery and connecting cables；

Ø Industrial 9dB muffler and accessories；

Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

Ø Engine oil、diesel、water jacket、Anti-condensation heater

Ø Battery floating charger

Ø Self-protection unit/self-starting control panel

Ø Tree-remote control panel

Ø ATS AUTO-loaded transferring screen

Ø Daily fuel tank、Integral fuel tank

Ø Waterproof type(Cabinet)

Ø Mobile trailer(Drip proof)

Ø Mobile trailer(Silent type)
