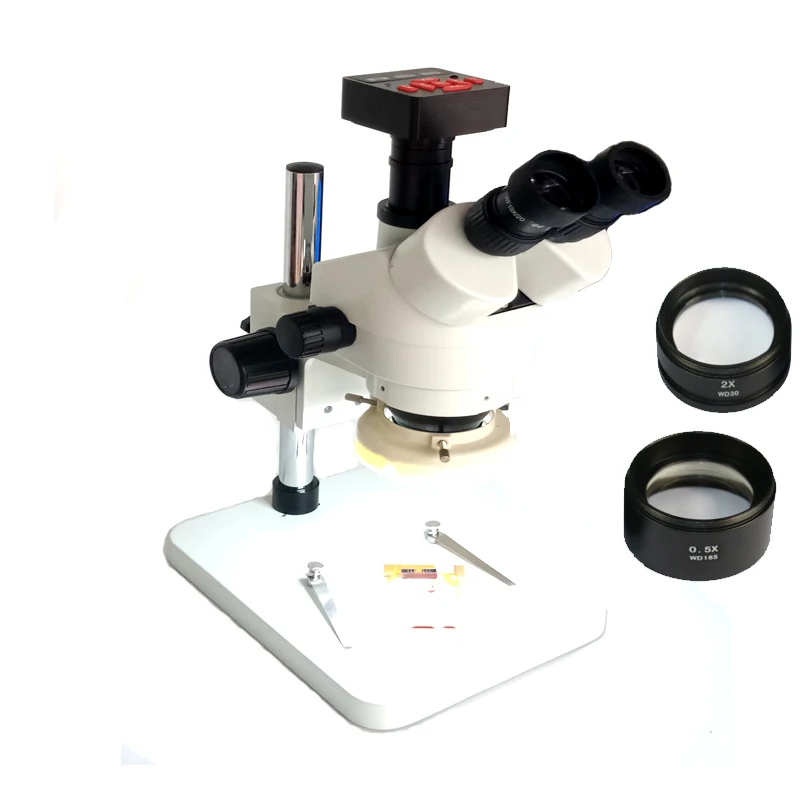

1080P 60FP 21MP 3.5X 7X 45X 90X HDMI USB Trinocular Stereo Soldering Zoom Industrial Video Microscope Camera PCB IC Repair Tool |

1080P 60FP 21MP 3.5X 7X 45X 90X HDMI USB Trinocular Stereo Soldering Zoom Industrial Video Microscope Camera PCB IC Repair Tool |


key Feature:

7X-45X zoom magnification power with crisp sharp images
Super widefield high-eyepoint optics
widefield of view
4" (100mm) working distance
Sturdy all-metal pillar stand
Powerful 144-LED ring light with dimmer
This stereo microscope has a 144-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
Key Feature:

An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included

Specification:

Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM

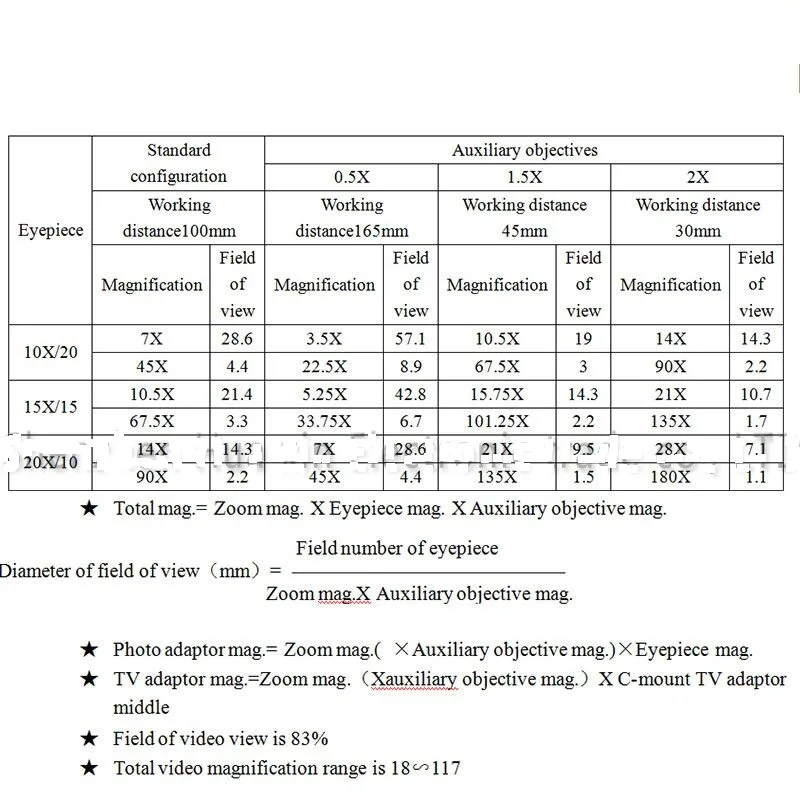

Objective Zoom Range: 0.67X-4.5X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter

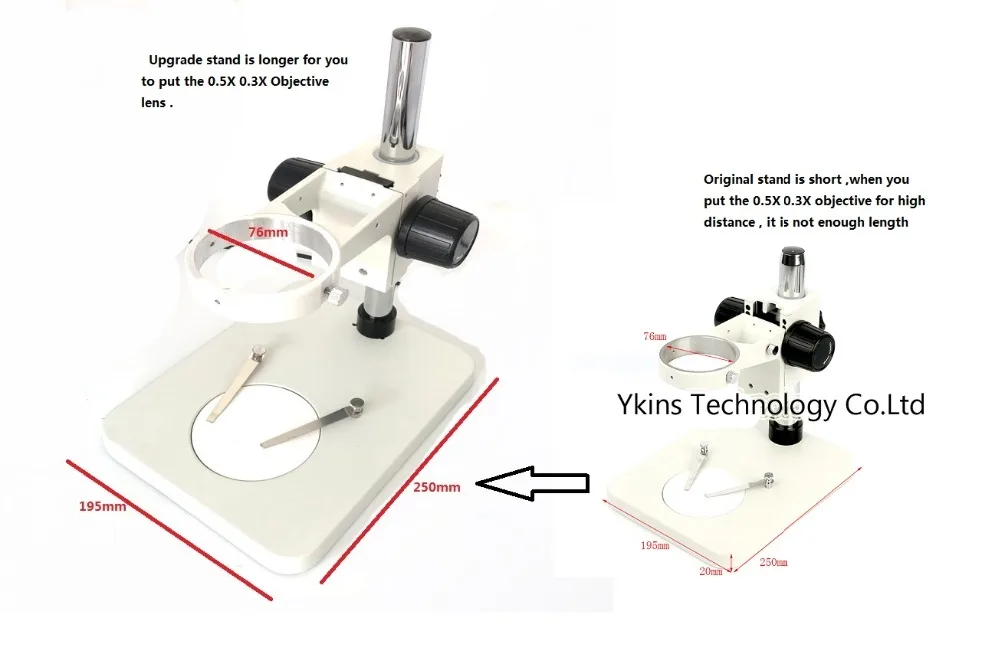

Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg

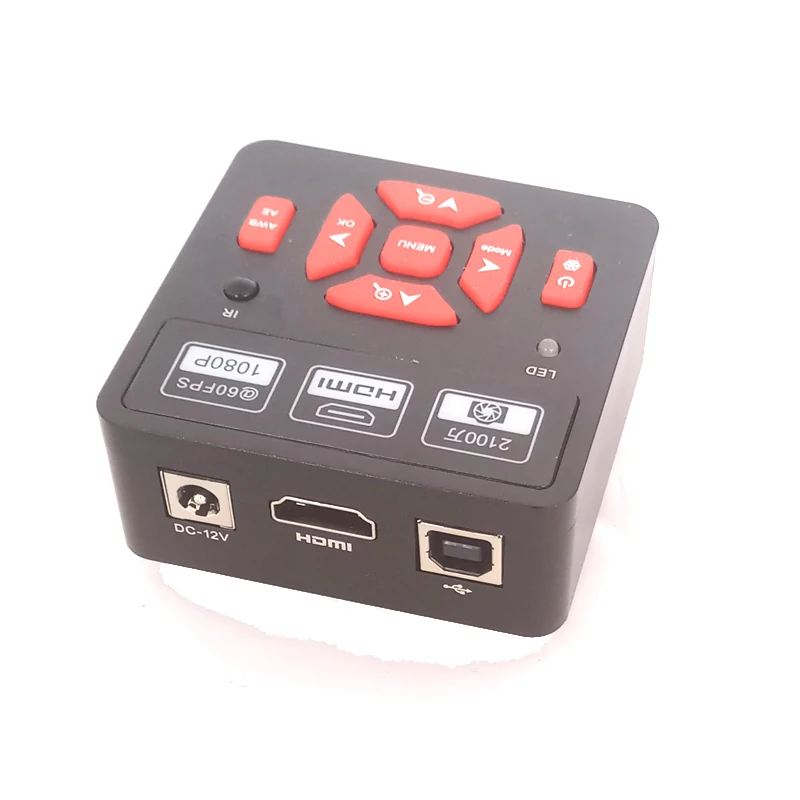

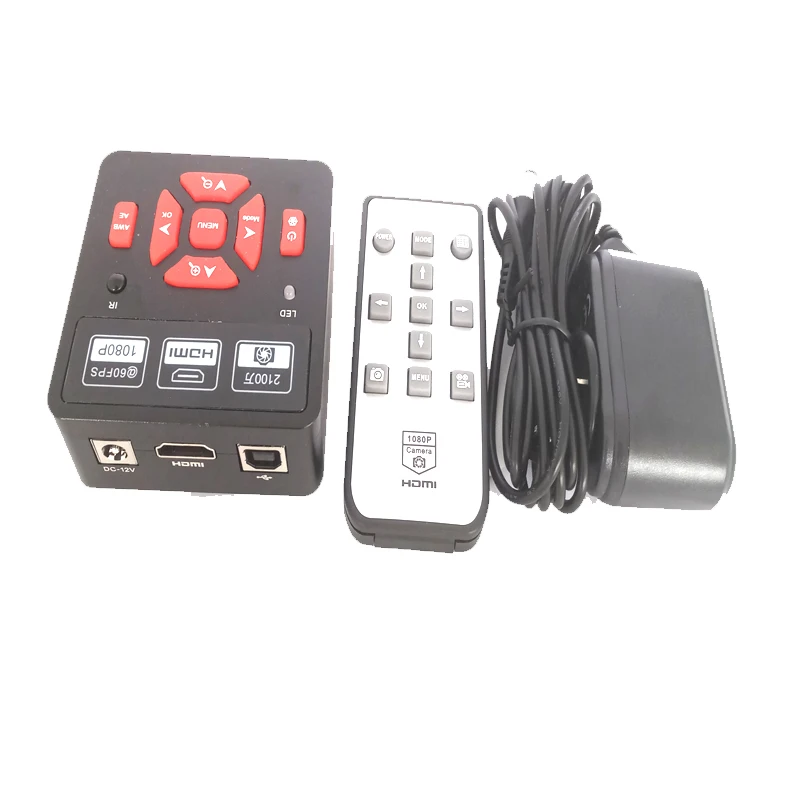

Camera parameters:
Using a 21 million pixel imported Panasonic CMOS image sensor;
Using a 1/2.33-inch image sensor, the viewing angle is wider than 1/3 inch;
 HDMI 1080P 60 frame image output;
USB free drive output 1080P 30 frame image output;
One button freeze/thaw function;
21 million pixel camera and 1080P video recording; photo size 5280x3960
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual / automatic white balance, red, green, blue adjustable;
Provide 8 drawing lines, line color, thickness, and adjustable position;
Provide center cross line display/close;
Support TF card storage, maximum support 64GB;
Support remote operation, the camera does not shake the image more clearly;
Support Chinese and English menu language (default English);
Support shutdown settings parameter saving;
Sturdy metal casing;
Specifications:
Sensor: 1/2.33 inch Panasonic 21 million pixel CMOS sensor
Pixel size: 1.34μm × 1.34μm
HDMI output: 1920*1080 60 frames
USB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: Auto / Manual
Exposure compensation: support
White balance: automatic / manual, support RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Dash: Support 8 lines, color, thickness and position adjustable
Centerline: Support
Menu language: English / Simplified Chinese / Traditional Chinese / Spanish / French / Portuguese / German / Italian / Japanese / Russian

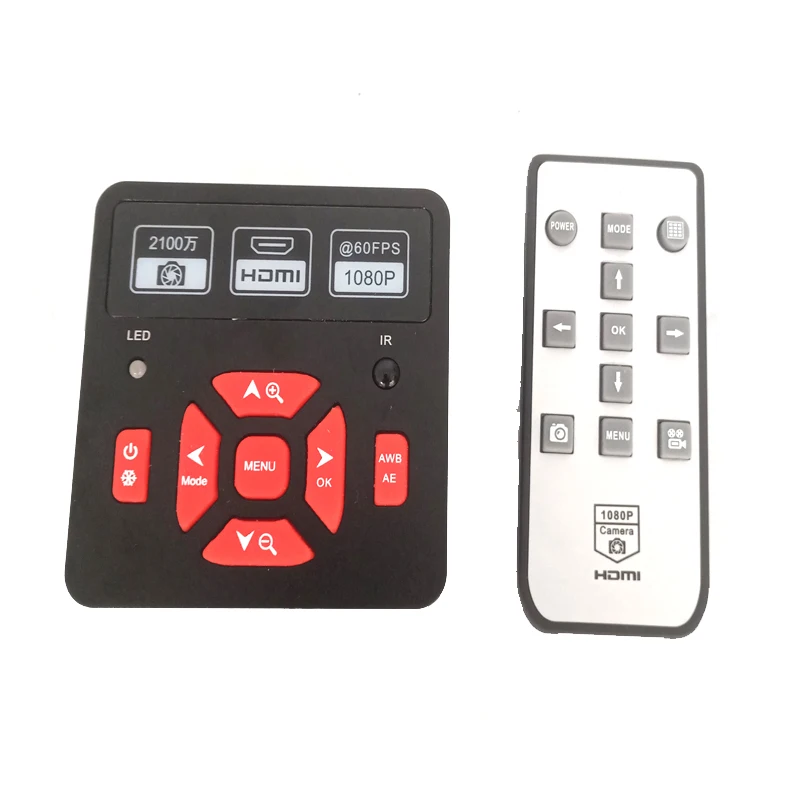

Remote control: support remote control operation

Please kindly note that package is not including the display screen . why shows display screen on the photo , just show you to see the camera image quality

Package incluede:

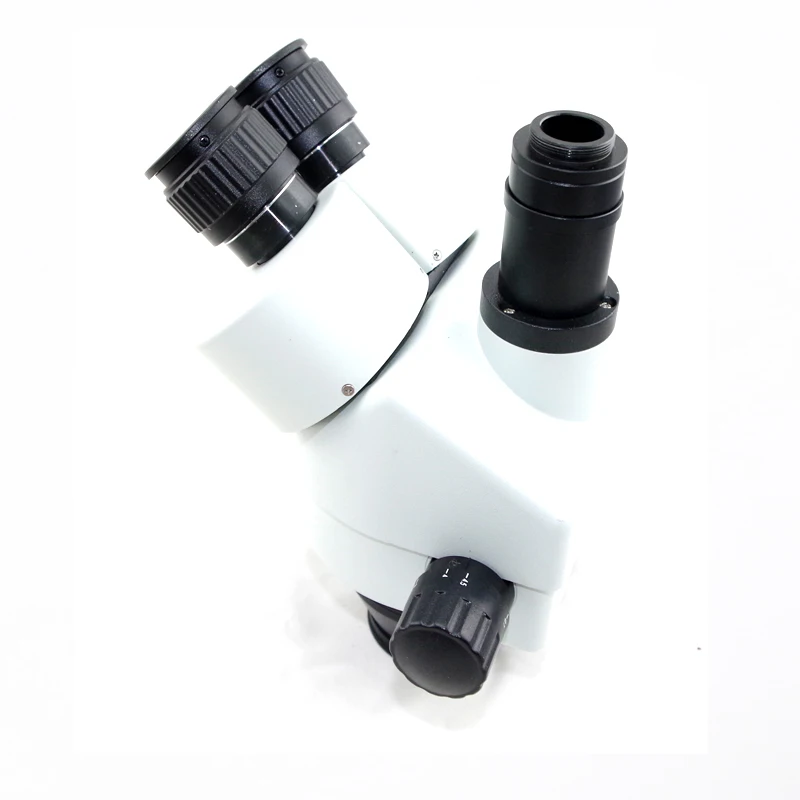

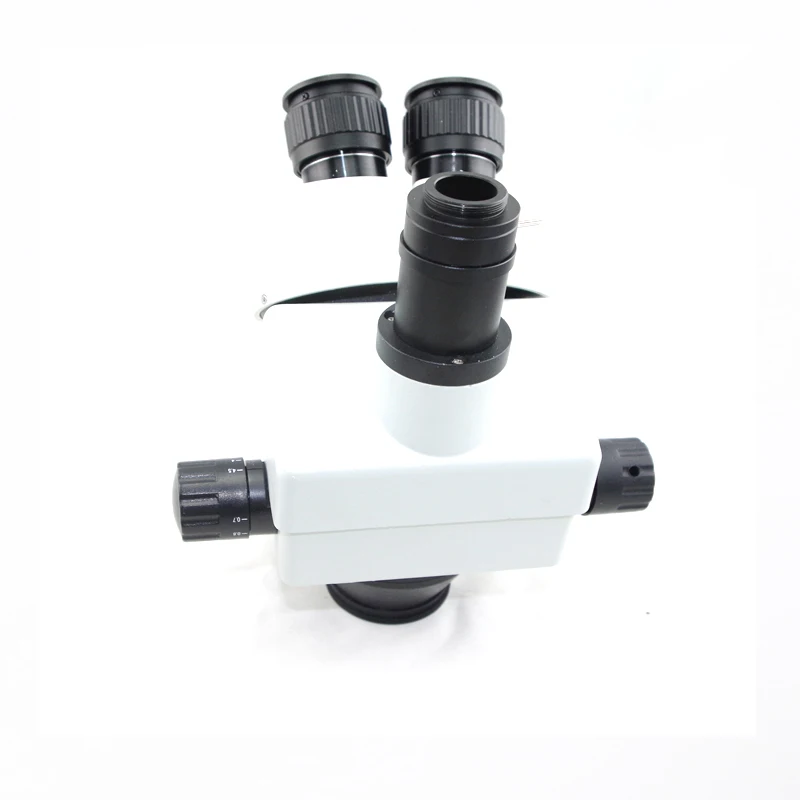

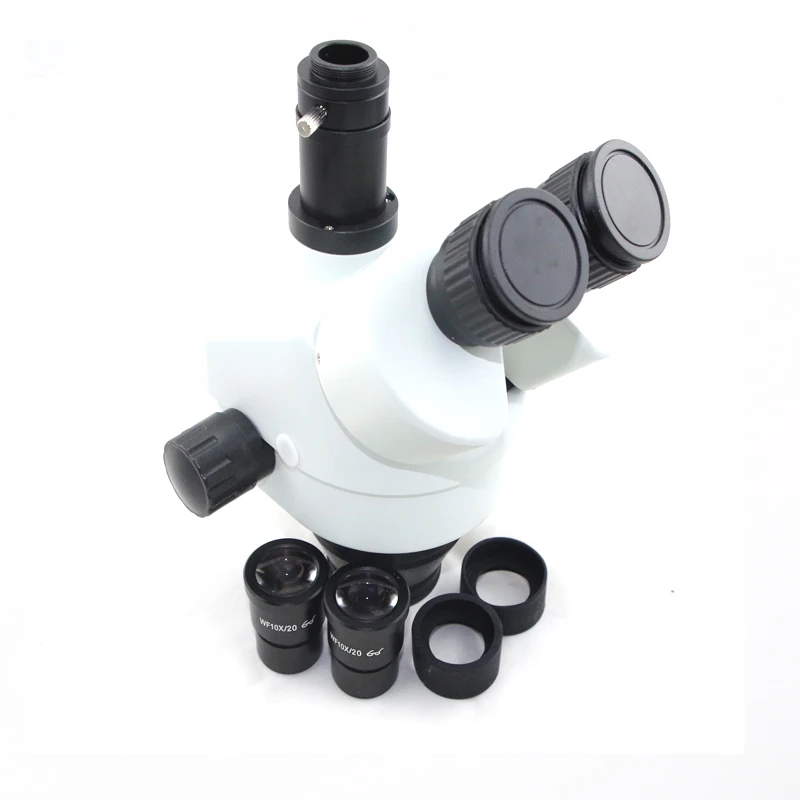

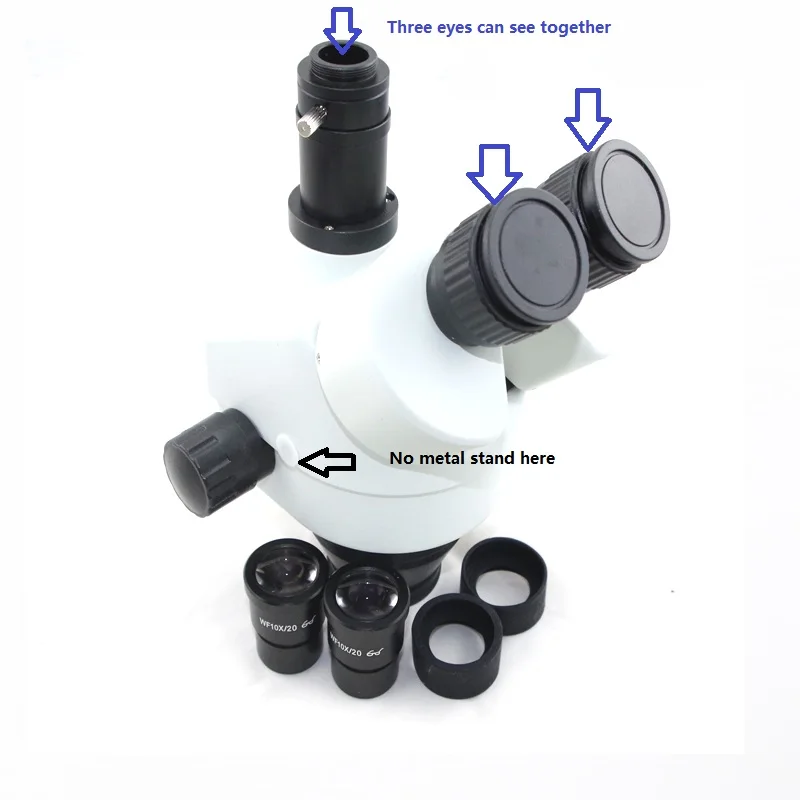

1 x Binocular Stereo Zoom Head
1 x Pair of Super Widefield 10X Eyepieces

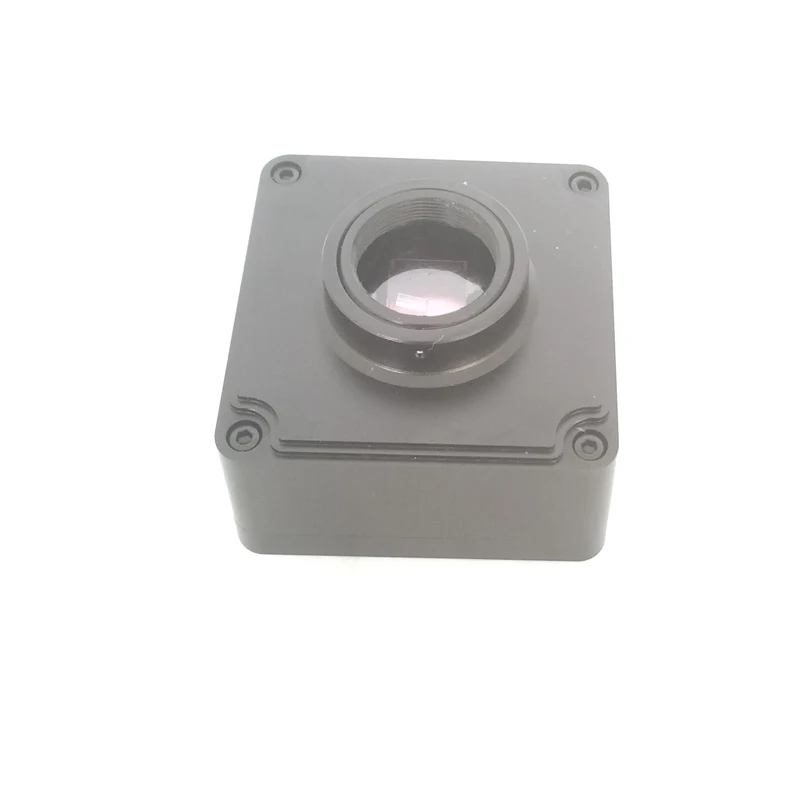

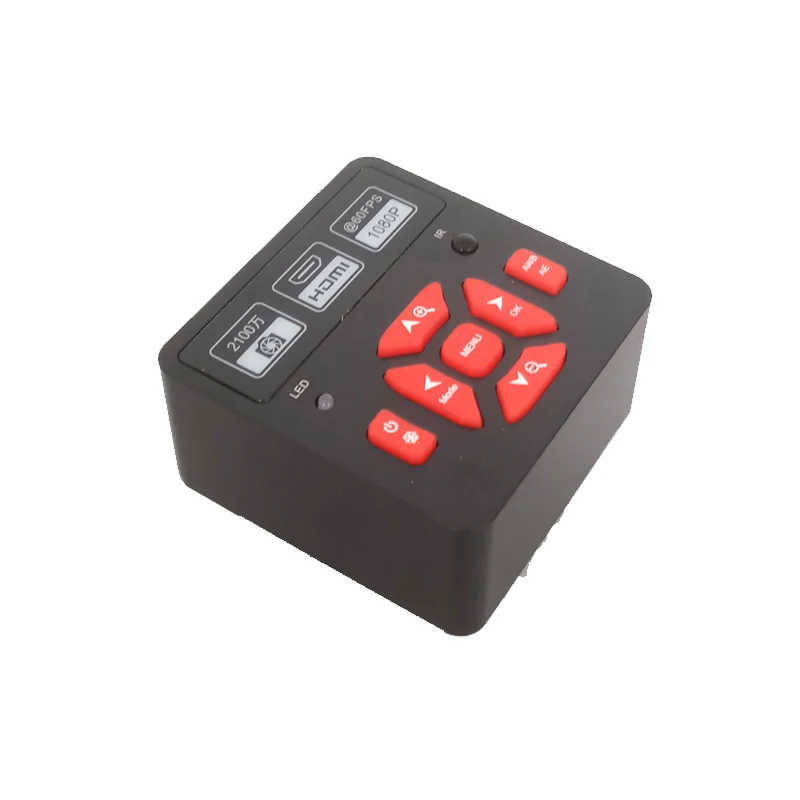

1 x Microscope Camera
1 x Power Supper for Camera (5V)

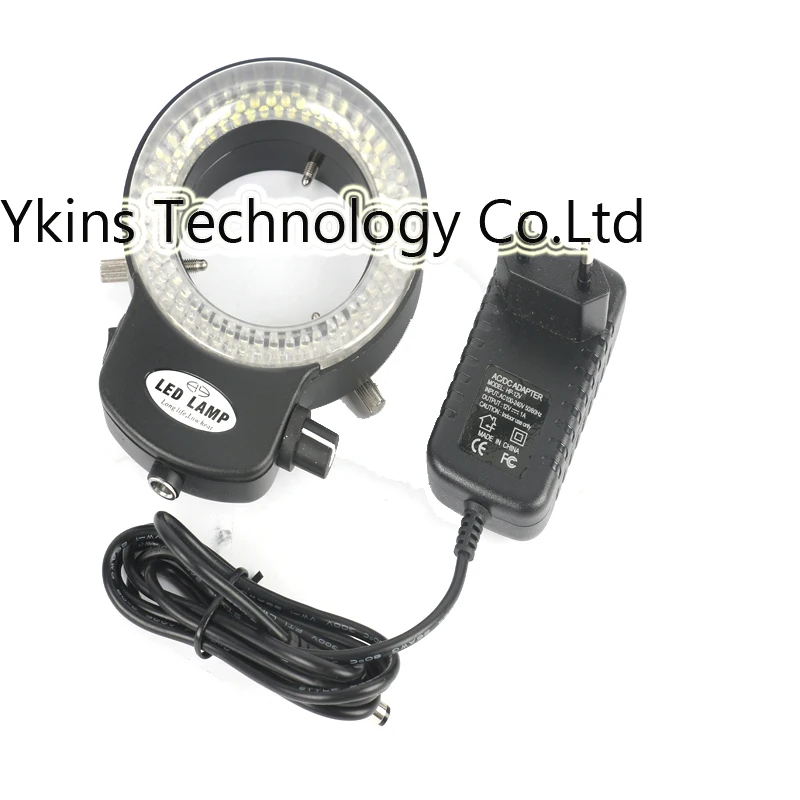

1 x 144-LED Ring Light with Adapter (12V)

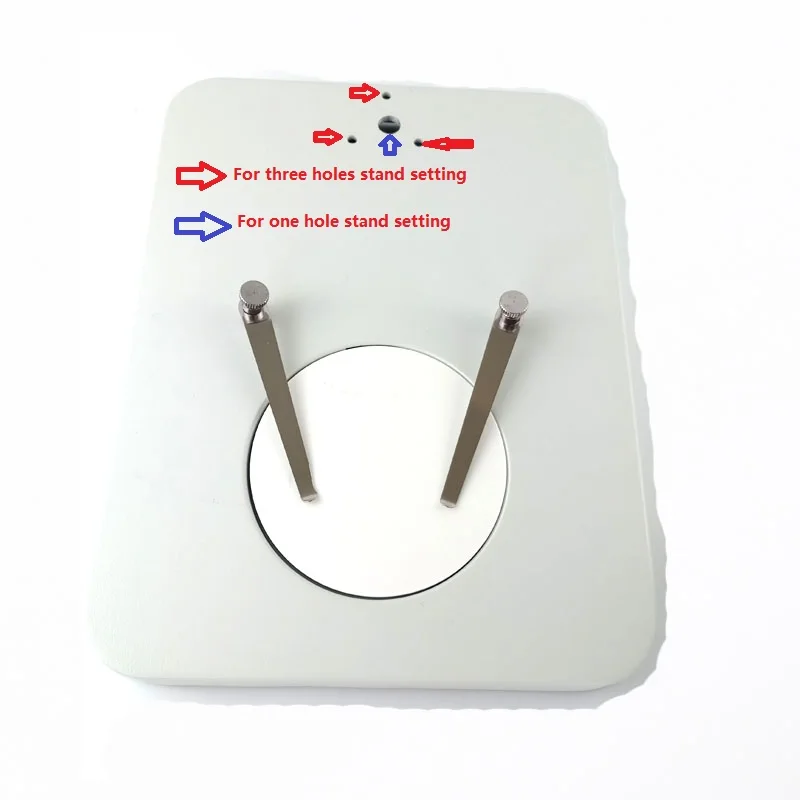

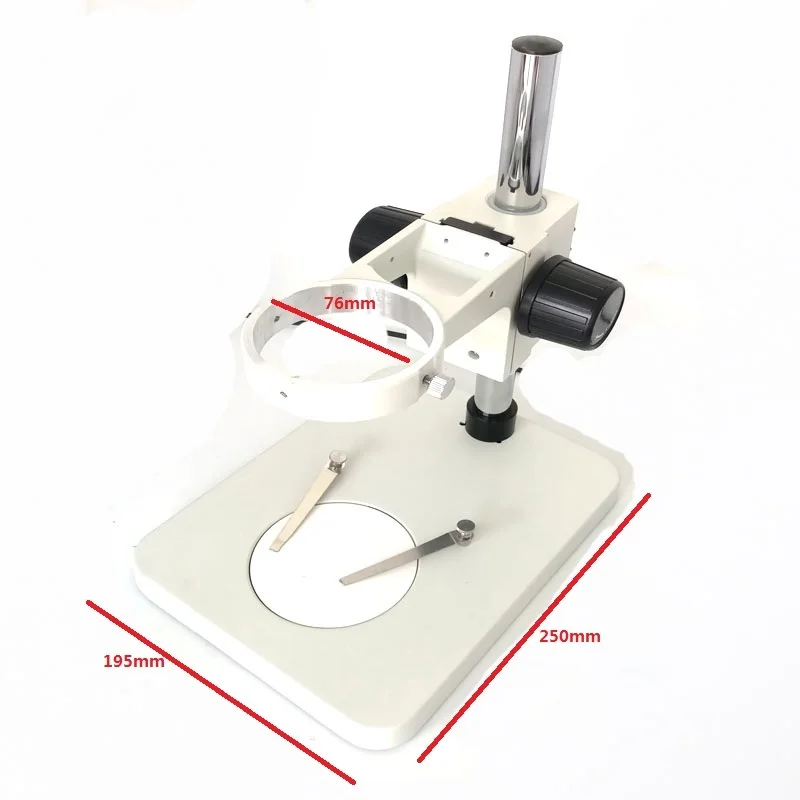

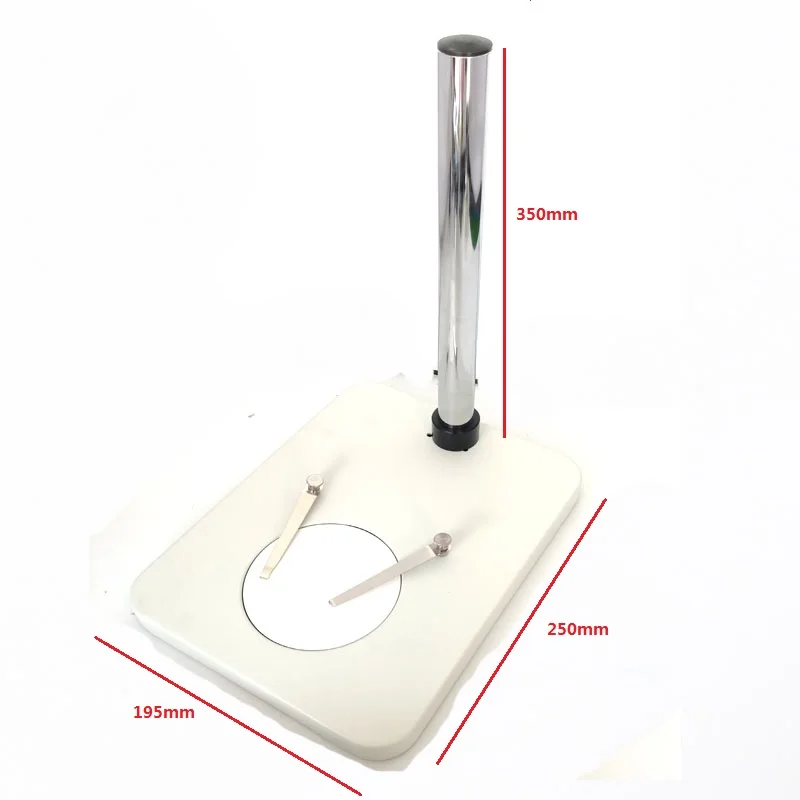

1 x Pillar Table Stand
1 x Focusing Rack
1 x C-mount Adapter
1 x Pair of Eye-Guards
1 x Pair of Clips
1 x Dust Cover

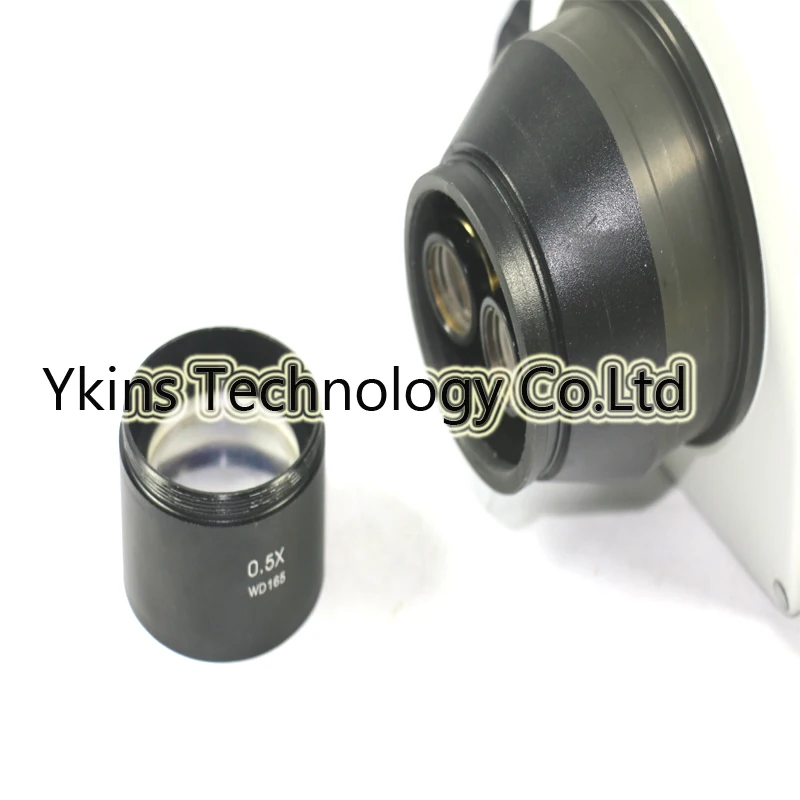

1 x0.5X Objective lens

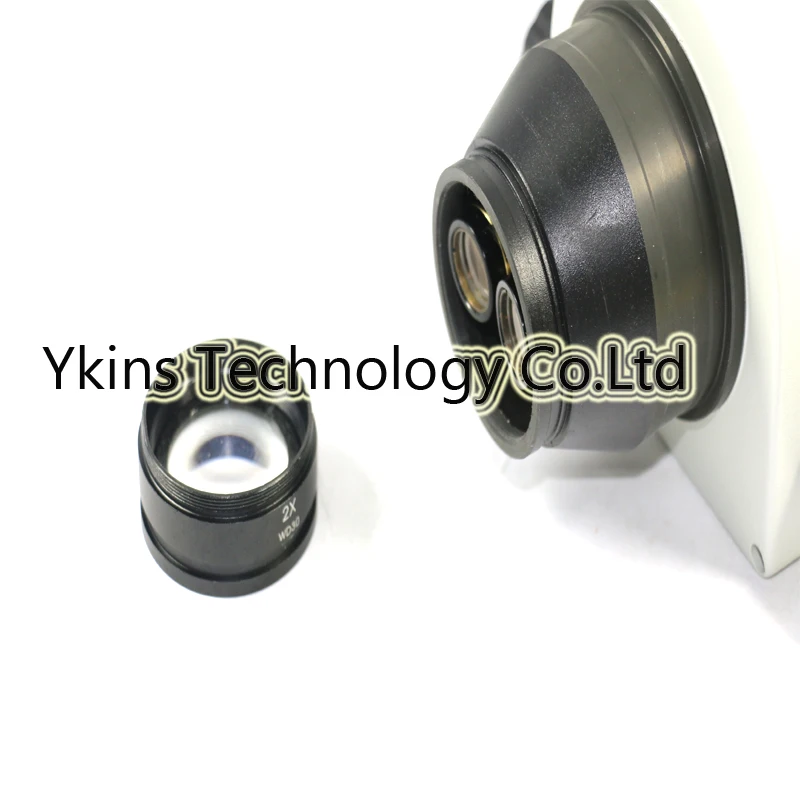

1 x2.0X Objective lens
