’Ultra small and high reliability

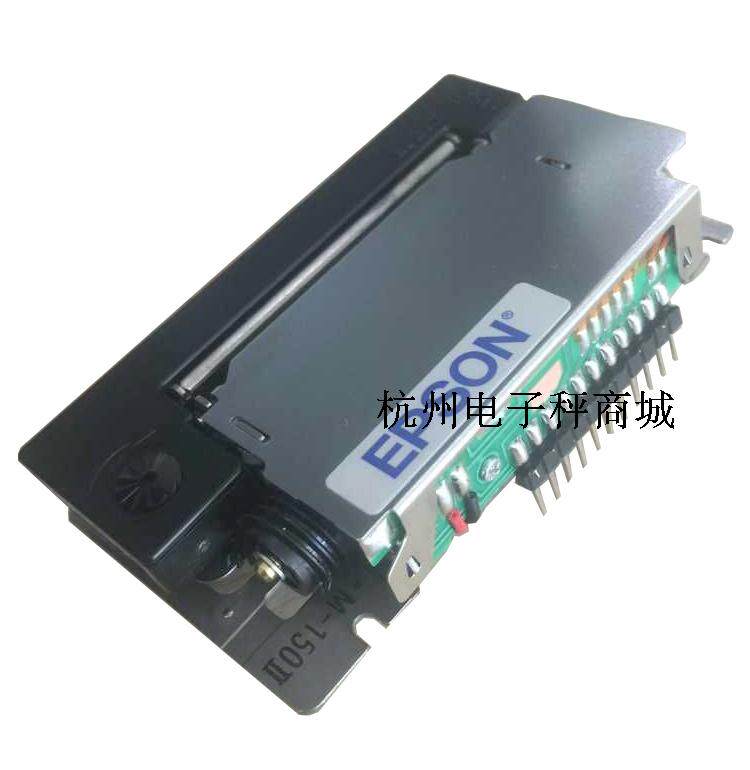

M-150II dot matrix printer is the smallest printer in the world. They weigh less than 80 grams, but have extremely high performance. It is suitable for small equipment. Because of their compact size and low power consumption, the M-150II is ideal for many print applications, ranging from handheld terminals to portable computers and small measuring instruments. Battery power supply M-150 printers have very low voltage requirements and can be operated by batteries. It is suitable for all kinds of instruments, such as medical equipment, self-service equipment and so on. Suitable for: electronic weights, electronic scales, medical instruments, weighing instruments, recording instruments, self-service equipment and other instrument printing methods shuttle lattice printing Print speed 2.5 lines / sec /1.8 row / sec Printing direction unidirectional printing Resolution 8 points /MM Print width 57.5 Inductor printhead temperature thermistor Paper situation photoelectric sensor Cover opening photoelectric sensor Voltage range 3.5-5.5VDC The current printing head (VH=5V) is about 5.2A. Energy consumption motor (VH=5V0 Max 0.41A) Paper width: 58 paper width Diameter: maximum 60 mm. Thickness: 0.01-0.06 mm Reliability machinery: more than 1500000 lines. Print head: 1000000 rows Working environment operating temperature 0-45 C Store -20-60 C External dimensions 73.2 (long) x 42.6 (wide) x 12.8 (high) mm Weight: About 60g
