  Features:

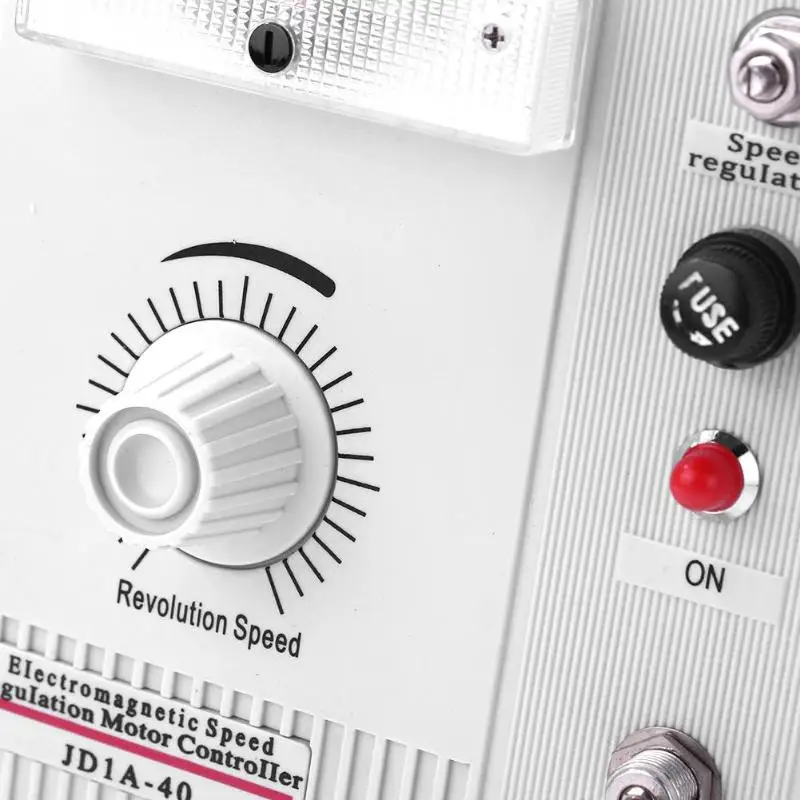

Speed control knob: This knob can adjust the motor speed, easy to use.
Clear the operation panel and dial, the pointer can accurately point to the speed.
When the load is fan or pump, the power saving effect is remarkable.
IP5X dust-proof grade can be used for embedded or wall-mounted panel, bottom line.
It is used for speed control of electromagnetic asynchronous motor (sliding motor) to realize stepless regulation of constant torsion.

Specifications:
Input speed: 1 rpm
Output speed range: 1
Excitation voltage: DC90V
Excitation current: 5A
Velocity change rate: ≤3%
Steady Speed Accuracy: ≤1%
Input voltage: AC 200-240V
Material: PP

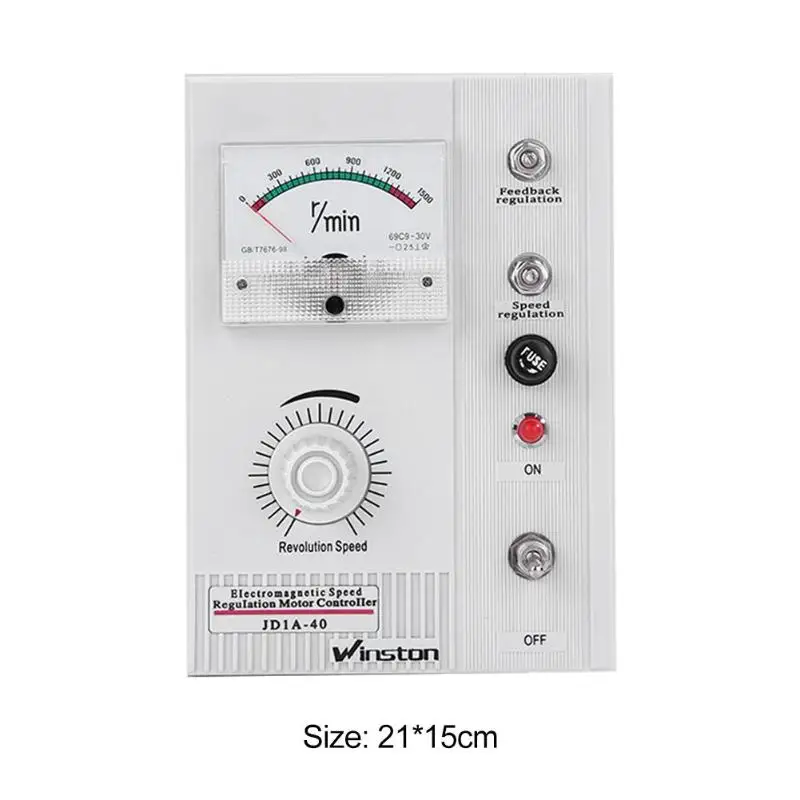

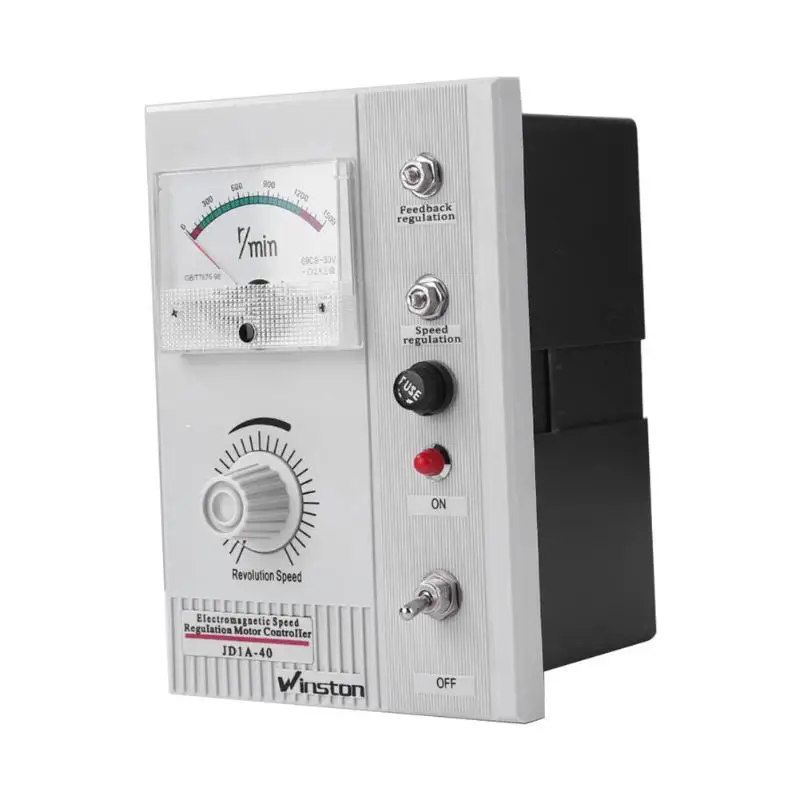

Panel size: 21*15cm/8.27*5.91"
Installation Size: 95*130*186mm/3.74*5.12*7.32"
Input voltage: 220V 50Hz
Speed: 0-1500 (rpm)
Optional model: JD1A-40
Speed adjustable range: 132-1320 RPM
Control motor power: 15-40 kW
Maximum output: DC 90V 5A
Optional model: JD1A-90
Speed adjustable range: 440-1320 RPM
Control motor power: 45-90 kW
Maximum output: DC 90V 8A

Operational instructions:
1. Turn off the power supply and make sure the connection is correct according to the wiring diagram. Do not modify it arbitrarily.
2. Set the external speed knob to "0" before use to avoid instantaneous high current and damage the controller.

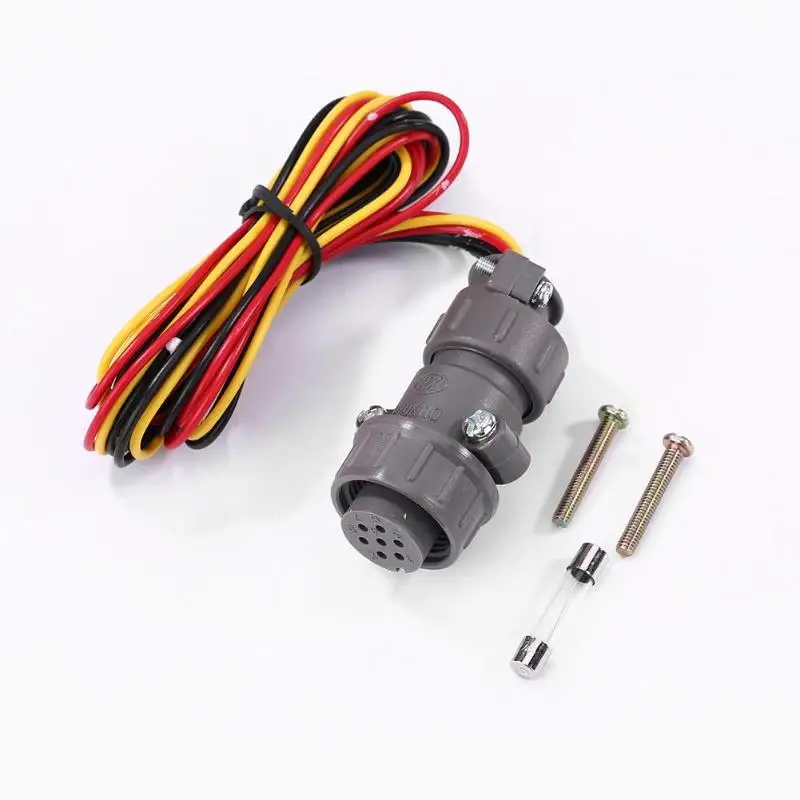

3. This product is controlled by generator feedback voltage. The control line is divided into "Blue" and "Yellow".
4. When the motor connection is found that the torque or speed does not meet the requirements, US-52 adjusts the side fine-tuning potentiometer (speed setting adjustment).
5. In order to change the direction of motor operation, only the jumper of CCW and CW on the terminal seat on the back of the controller should be replaced.
* When changing direction, the motor must be completely stopped before it can be changed.
1) Choose COM and CW short connection, then the motor rotates clockwise;
2) Choose COM and CCW short connection, then the motor rotates counterclockwise.

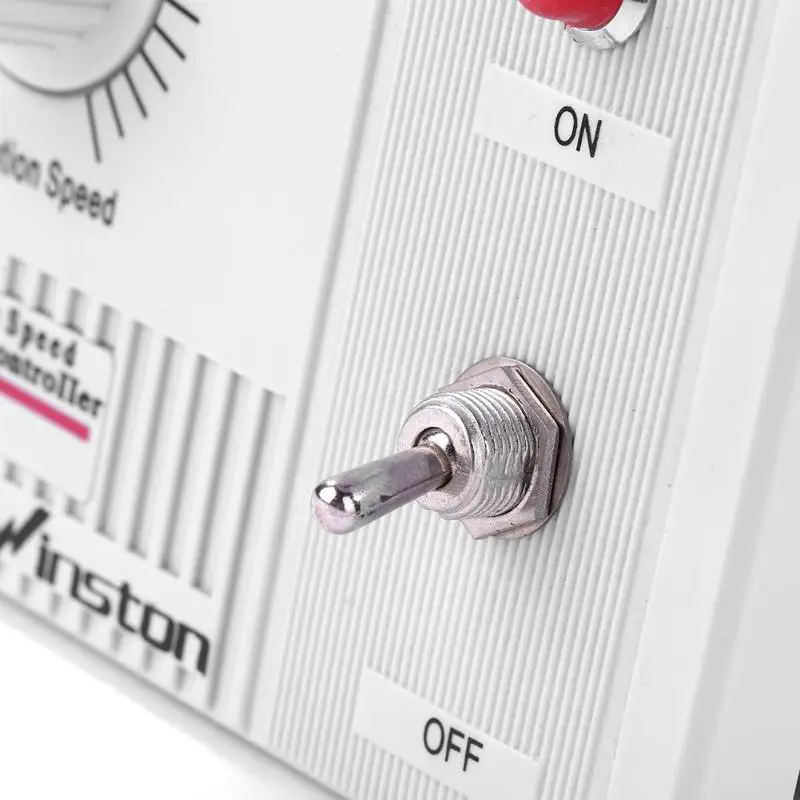

6. The action switch only controls the motor to operate or stop, and does not interrupt the power supply. If it is not used for a long time, please turn off the power supply.

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.


Packages:
1 X Motor Speed Controller
