Thank you for your inquiry,we will do you our best to provide high-quality products and
full range of servicess!!

Notice

Payment reminder: Please do not pay on Aliexpress. If you want to place an order, please send your email address to our customer service. We will provide you with an Alibaba trade assurance payment link or bank information. We guarantee that your payment is safe and effective!

(Reason: Because Aliexpress can only ship by air, but the generator doesn’t allow air transportation, we can’t arrange for delivery on Aliexpress, so we need to transfer the payment to Alibaba for delivery, please understand!)

Inquiry reminder

When inquiring about prices with online customer service, please copy the content below to fill in the requirements for the purchase of equipment, and provide your email and Wechat/whatApp, we will help you to develop an accurate detailed price list and send it to you!

Please copy the following content and send it to our customer service:

1. Email:

2. Wechat/whatApp:

3. How many kw do you need:

4. Required brand (such as: Cummins, Perkins, Yuchai, Weichai, Ricardo, Volvo, MTU, Shangchai):

5. Destination Ocean Port:

6. Optional configuration (such as: silent canopy, mobile trailer, control system, ATS):

The advantages of our generator

★ Huaquan 80-kilowatt generator set, four-cylinder combustion, sufficient combustion and strong power.

★ Turbocharging: Improve fuel economy, reduce exhaust emissions, and increase engine power.

★ AC synchronous generator, standard control panel, simple operation; air switch for power generation output, easy maintenance.

★ Equipped with dry air filter, fuel filter, lubricating oil filter: protect the normal operation of the engine, reduce wear and tear, avoid clogging, and improve engine life.

★ The steel common base and the vibration-damping rubber pad effectively relieve the vibration of the unit and increase the service life of the unit.

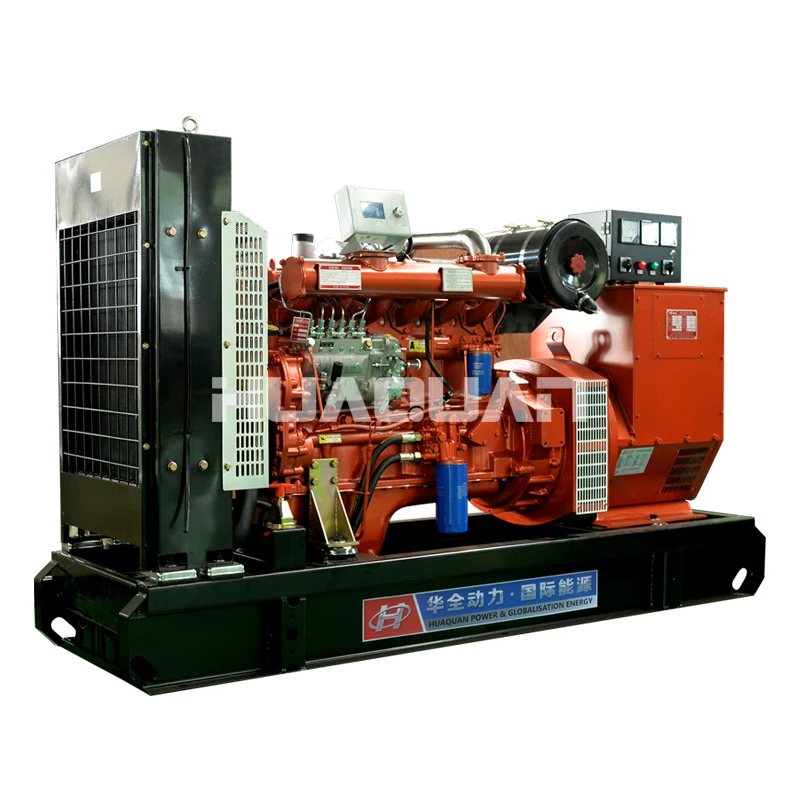

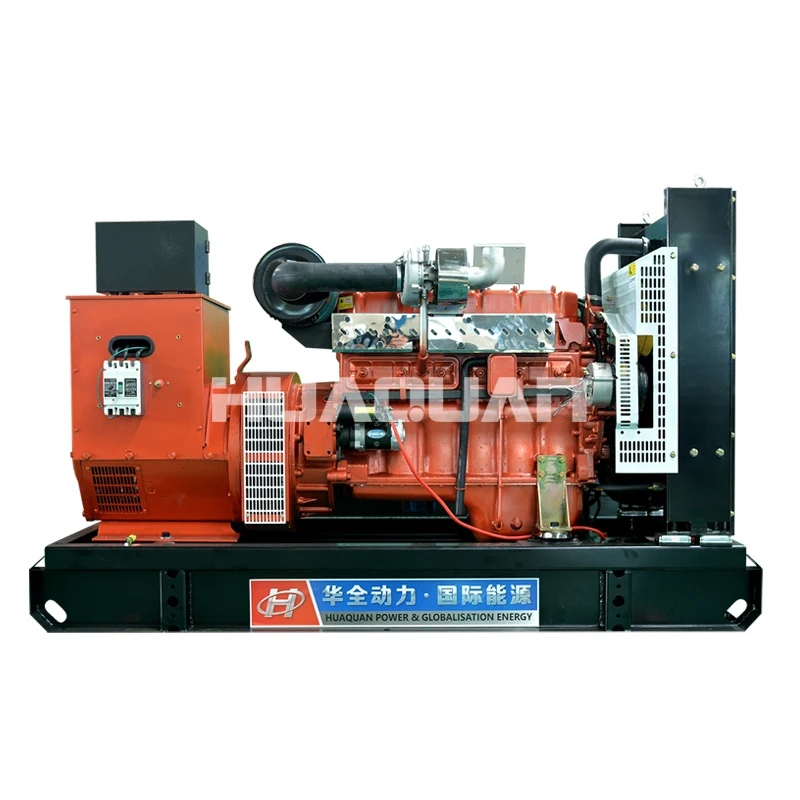

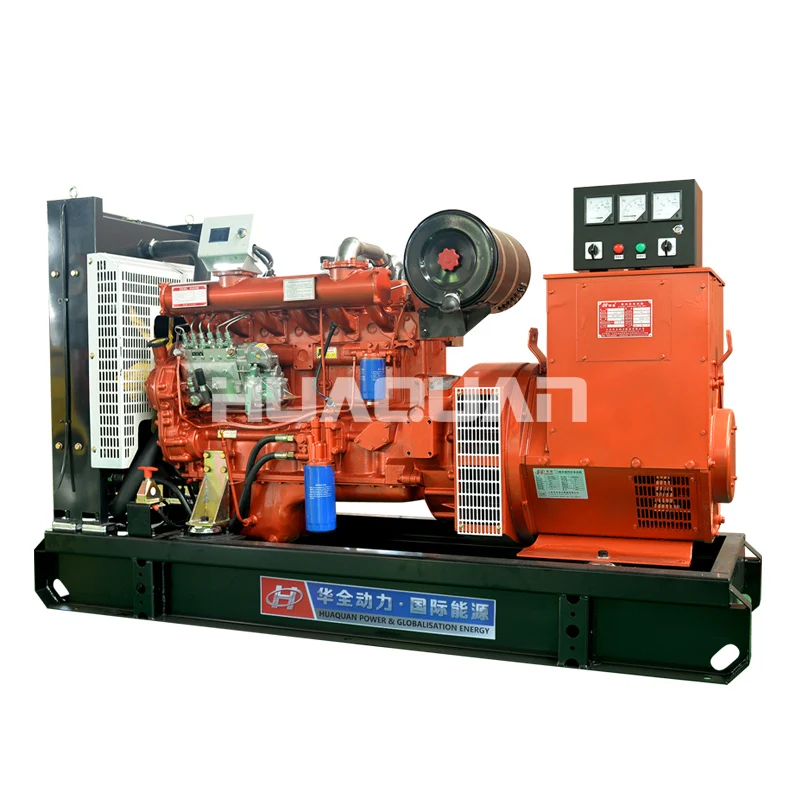

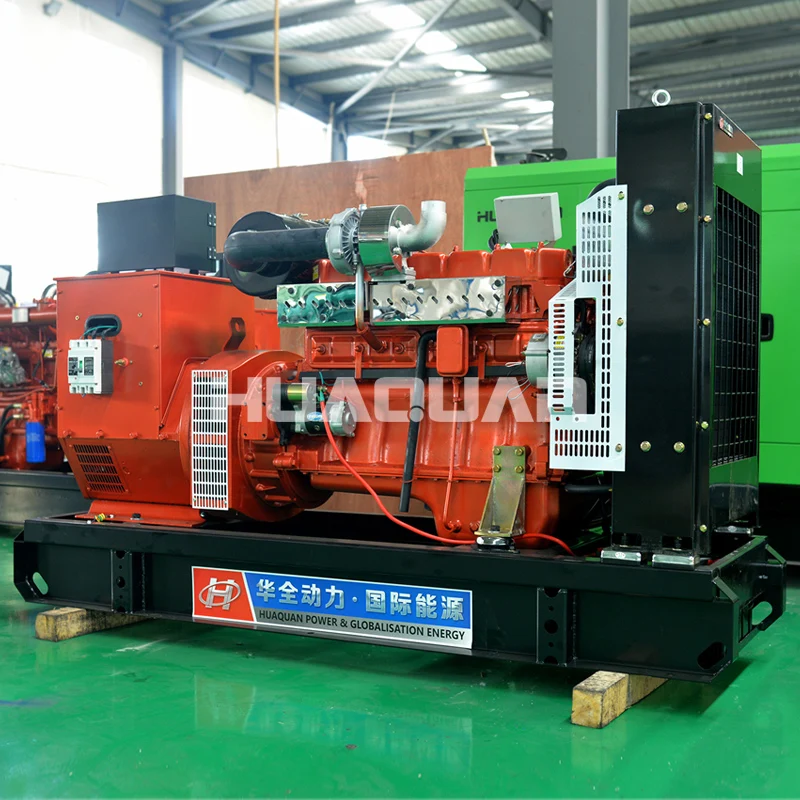

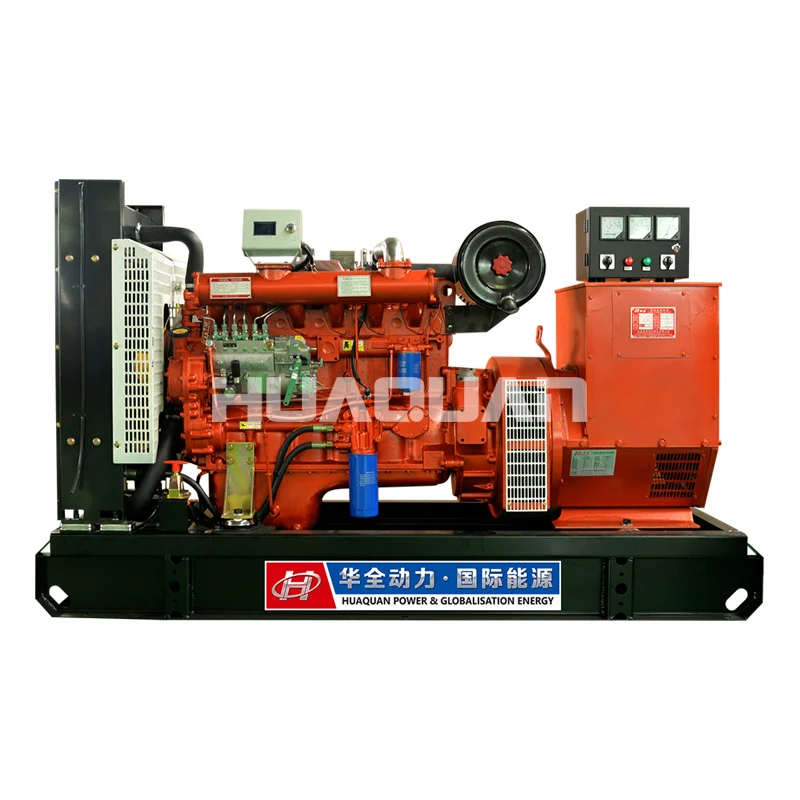

80KW Weifang series diesel generator set technical specifications

Technical parameters of generator set：

Unit model:

HQ80GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

80Kw

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

+ 20 ～ －15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

144A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

2100×800×1600（L×W×H mm）

Fuel consumption (100% load):

218g/kW·h

Weight

900kg

Acoustic noise (LP7m):

105dB（A）

Technical parameters of diesel engine：

Brand/origin：

Weifang Diesel Engine

Cooling method:

closed water circulation cooling

model:

R6105ZD

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

6/L Type

Speed regulation method:

Mechanical

Bore stroke:

105×125 mm

Intake method:

Turbo

Compression ratio:

19.0: 1

Overload capacity:

110%

Start mode:

DC 12V Electric start

Speed:

1500rpm

Technical parameters of generator：

Brand：

Weifang Huaquan

Protection level：

IP22

Model：

HQF-80

Wiring mode：

Three-phase four-wire, Y-connection

Rated power:

80kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

The standard configuration of the generator set is as follows:

ØDirect injection internal combustion engine (diesel);

Ø AC synchronous generator (single bearing);

ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield;

Ø Power generation output air switch, standard control screen;

Ø Unit steel common base (including: unit vibration damping rubber pad);

Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator;

Ø Random information: original technical documents of diesel engines and generators, instructions for generator sets, test reports, etc.

FAQ

1.What's your power range of Generators?

Answer:  We can offer the range from 10kva~1000kva.

2.What's your delivery time?

Answer:  Generally,we can delivery in 7 days after we get the deposit.

3.What are the payment methods for buying equipment?

Answer:
1、We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
2、We accept Alibaba credit guarantee payment.
3、We accept bank wire payment.

4.What's your warranty?

Answer:  All our products we offer on year warranty.

5.What's your MOQ?

Answer:We accept the MOQ  is 1 set.
